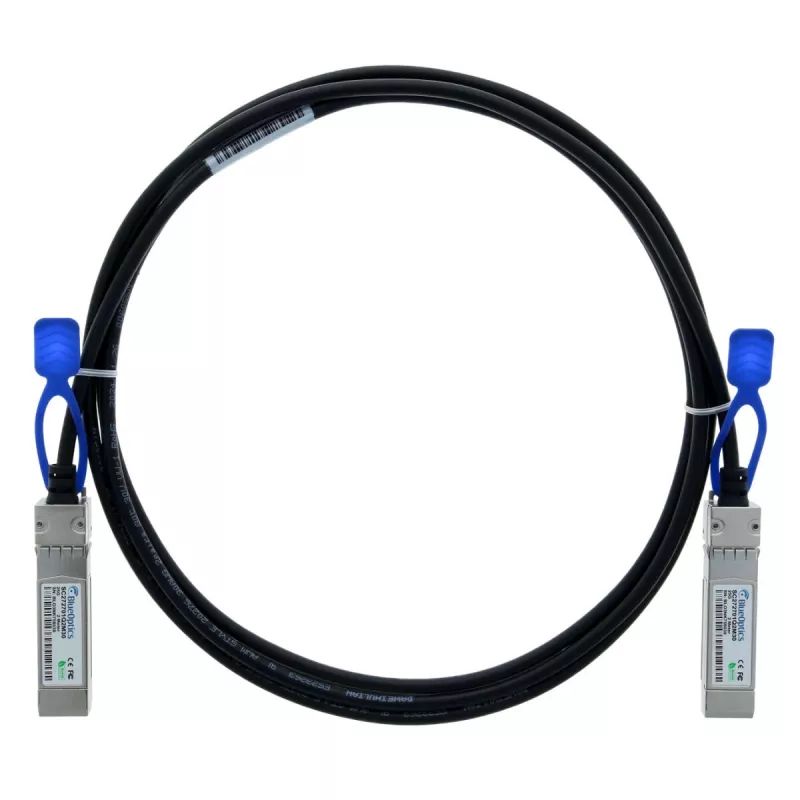

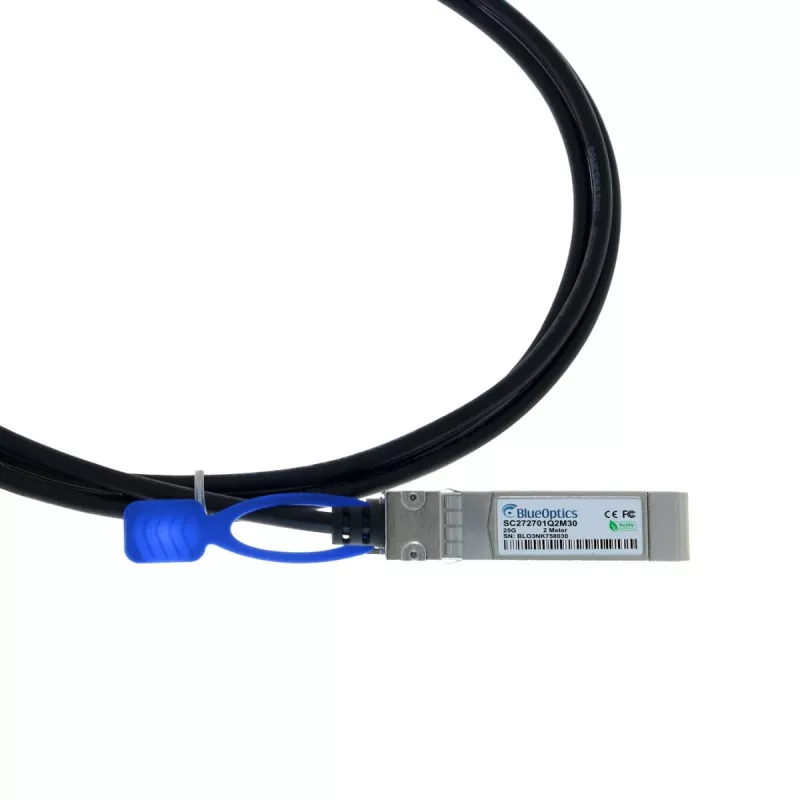

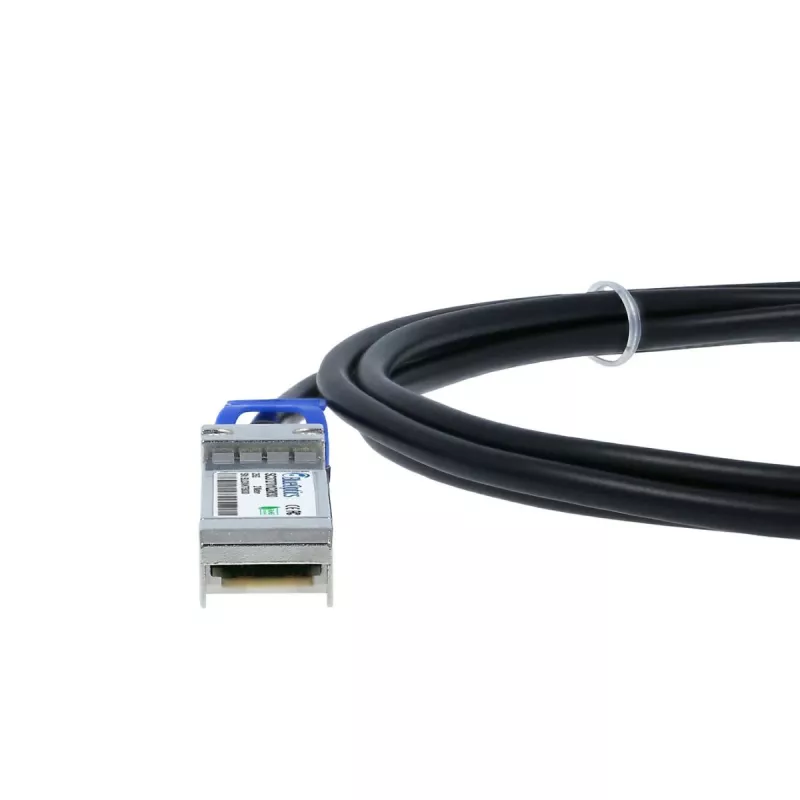

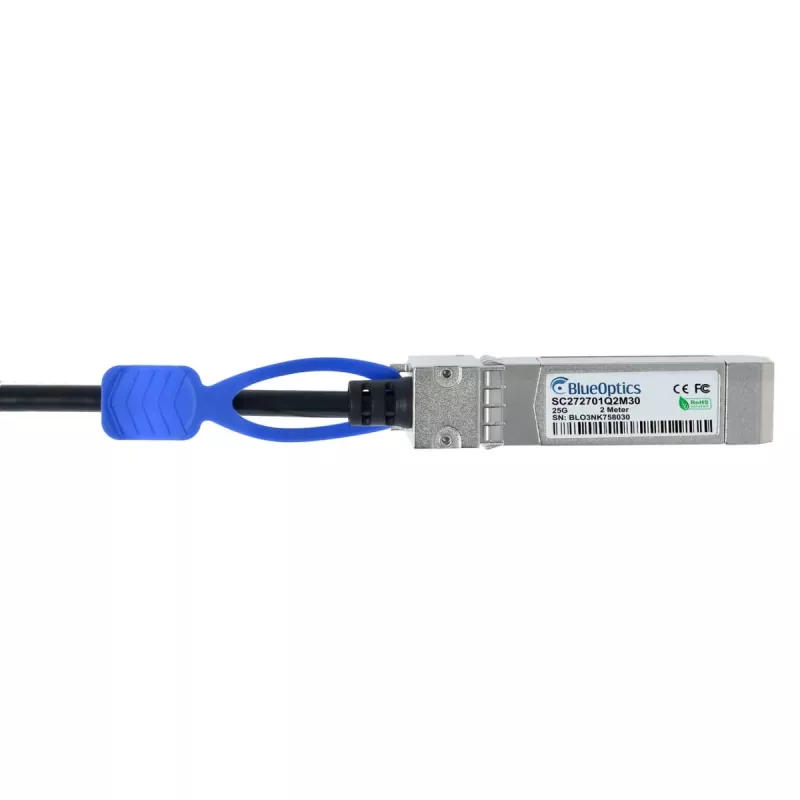

BlueOptics TP-Link SM6220-1M BlueLAN Cable Direct Attach SFP28 a SFP28 Pasivo 25GBASE-CR, 1 metro

The BlueOptics TP-Link SM6220-1M BlueLAN 25GBASE-CR Passive SFP28 to SFP28 Direct Attach Cable (DAC) is a high-performance copper twinax cable designed for short-reach interconnects in data centers, enterprise networks, and high-performance computing environments. With a length of 1 meter, it provides a cost-effective and low-power solution for 25 Gbps connectivity between SFP28 ports.

Advantages

This passive DAC cable offers several benefits: it consumes less than 0.1W of power, eliminating the need for external power sources; it supports hot-pluggable installation for easy deployment; and it is fully compatible with TP-Link SM6220-1M switches and other SFP28-enabled devices. The cable is built with 30 AWG wire and PVC jacket, ensuring durability and flexibility with a minimum bend radius of 50 mm.

Suitable for

• Data center top-of-rack and end-of-row connections
• Enterprise network server-to-switch links
• High-performance computing clusters
• Short-reach 25GBASE-CR compliant interconnects

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Copper Twinax
• Data Rate: 25 Gbps
• Standard: 25GBASE-CR
• Connector Type (End A): SFP28
• Connector Type (End B): SFP28
• Cable Length: 1 Meter
• Cable Design: Passive
• Compatibility: TP-Link SM6220-1M compatible
• Hot-Pluggable: Yes
• Power Consumption: < 0.1W
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Wire Gauge: 30 AWG
• Jacket Material: PVC
• Minimum Bend Radius: 50 mm

Recommendations

For optimal performance, ensure that both connected devices support SFP28 interfaces and 25GBASE-CR standard. This cable is ideal for short-distance connections within racks or between adjacent racks.
