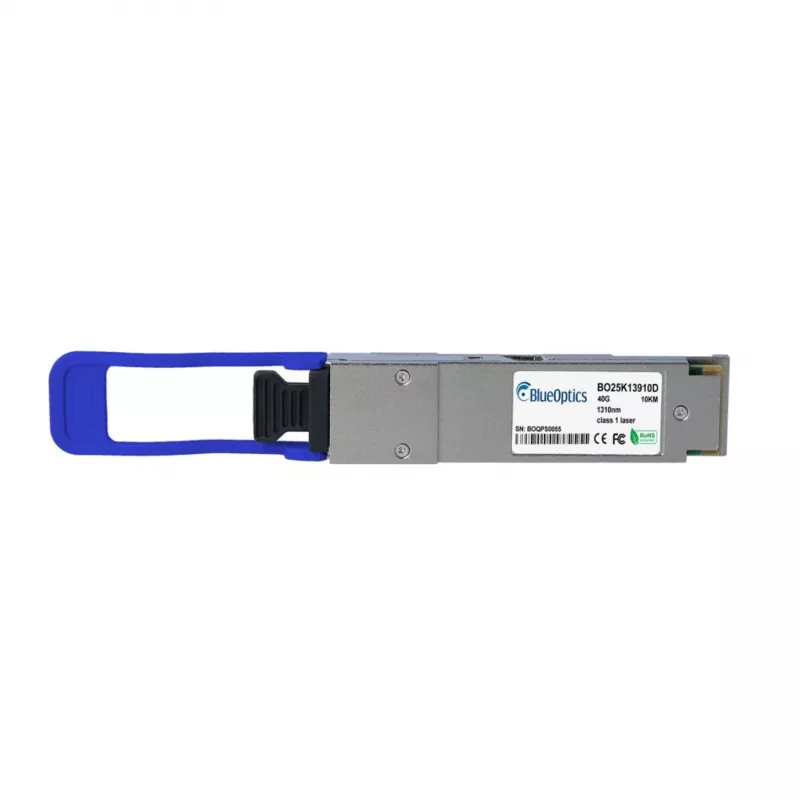

BLUEOPTICS Transceptor QSFP+ BO25K13910D compatible con TP-Link QSFP-40G-PLR4, MPO/MTP, 40GBASE-PLR4, Monomodo 1310nm, 25km

The BLUEOPTICS QSFP-40G-PLR4-TL-BO is a high-performance 40GBASE-PLR4 QSFP+ transceiver designed for compatibility with TP-Link QSFP-40G-PLR4 equipment. It enables 40 Gigabit Ethernet connectivity over singlemode fiber with MPO/MTP connectors, supporting distances up to 25 km. This hot-pluggable module is ideal for data center and enterprise network uplinks, offering low power consumption and full DDM/DOM support.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility. Supports 40 Gbps data rate over singlemode fiber, extending reach to 25 km. Hot-pluggable design simplifies installation and maintenance. Built-in digital diagnostics provide real-time monitoring of operating parameters.

Suitable for

• Data center interconnects
• Enterprise network core and distribution layers
• Service provider aggregation networks
• High-speed storage area networks (SAN)

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Standard: 40GBASE-PLR4
• Connector: MPO/MTP-12
• Fiber Type: Singlemode (SMF)
• Wavelength: 1310 nm (4 lanes)
• Max Distance: 25 km
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• DDM/DOM: Yes
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with singlemode fiber patch cables terminated with MPO/MTP connectors. Ensure your switch or router supports 40GBASE-PLR4 standard and QSFP+ form factor. This module is compatible with TP-Link QSFP-40G-PLR4 ports and other MSA-compliant equipment.
