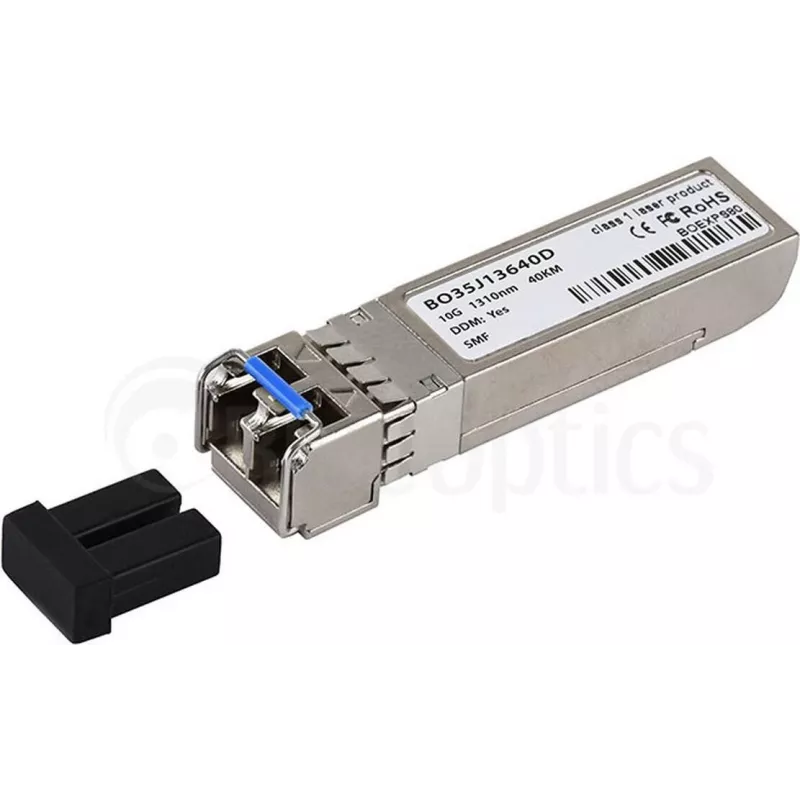

Transceptor SFP+ CBO SFP-10G-ER-1310 — 10 Gbit/s, 1310 nm, formato SFP+

The SFP+ Transceiver CBO SFP-10G-ER-1310 is a compact optical module for 10 Gbps links over single‑mode fiber using a 1310 nm wavelength. Designed for SFP+ ports in switches, routers and servers, this transceiver supports extended reach applications and integrates into standard SFP+ form‑factor slots for plug‑and‑play deployment. It is intended for use where reliable high‑speed Ethernet connectivity is required over longer distances than typical short‑reach modules allow.

Advantages

The module offers 10 Gbps line rate performance in an industry-standard SFP+ form factor, enabling high-density installation in networking equipment. Its 1310 nm optical wavelength and single‑mode fiber compatibility provide longer transmit distances suitable for backbone and carrier links. The transceiver is hot‑pluggable for easy replacement or upgrade and supports straightforward interoperability with SFP+ ports on a wide range of network devices.

Suitable for

• Data center uplinks between access and aggregation switches
• Campus backbone connections linking buildings or floors
• Carrier and metro network segments requiring 10 Gbps single‑mode fiber links
• Server-to-switch high‑speed connections in rack environments

Key specifications

• Form factor: SFP+ compatible
• Data rate: 10 Gbps
• Optical wavelength: 1310 nm
• Fiber type: single‑mode fiber (SMF)
• Reach: extended-reach class suitable for long‑reach links (dependent on fiber and system budget)
• Connector type: LC duplex
• Hot‑pluggable: yes
• Typical applications: Ethernet 10G, WAN and backbone links

How to use

Insert the transceiver into an empty SFP+ slot on a compatible switch, router or server until it latches. Connect LC duplex single‑mode fiber connectors to the transceiver ports, observing transmit and receive orientation. Ensure both ends of the link use matching optical parameters (10 Gbps, 1310 nm, single‑mode fiber) and verify link status via the host device management interface. If required, consult the network equipment documentation for enabling the port and checking compatibility settings.

Recommendations

For reliable long‑reach performance, use single‑mode fiber with appropriate attenuation and confirm optical power budget across the entire link. Keep fiber connectors clean and secure, avoid bending beyond recommended radius, and match transceiver specifications at both link endpoints. Validate operation after installation by checking interface status and error counters on network devices.
