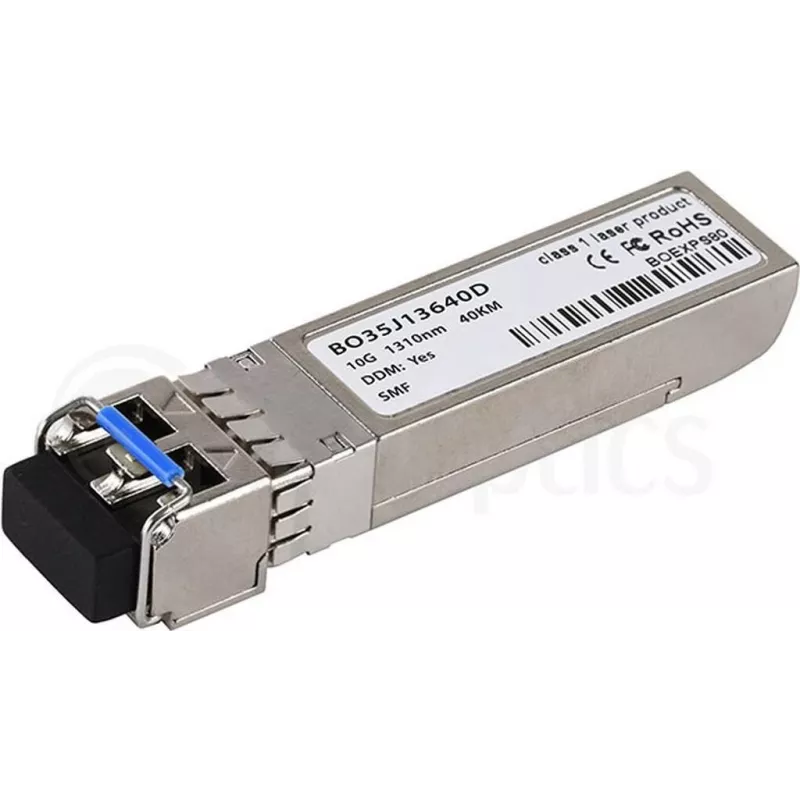

Transceptor SFP+ CBO SFP-10G-ER-1310 10G 1310nm módulo óptico monomodo

CBO SFP-10G-ER-1310 is an SFP+ optical transceiver module that supports 10 Gbps data transmission over single‑mode fiber at a 1310 nm wavelength. Engineered for long‑reach single‑mode links, this hot‑pluggable module is intended for use in switches, routers and servers where 10 Gigabit uplinks or interconnects are required. The module provides a compact SFP+ form factor and compatibility with standard 10G SFP+ ports, enabling straightforward network expansion and replacement without powering down equipment.

Advantages

The transceiver delivers 10 Gbps throughput with stable performance on long‑distance single‑mode fiber runs at 1310 nm, providing predictable signal quality and low error rates. Its hot‑swappable design simplifies installation and maintenance, and the small SFP+ form factor minimizes space usage in high‑density chassis. The module is suitable for diverse networking hardware that accepts SFP+ pluggable optics, offering a flexible option for upgrading or expanding 10 Gigabit links.

Suitable for

• Long‑reach 10 Gbps uplinks between switches and data center racks
• Server-to-switch 10G connections over single‑mode fiber
• WAN links or campus backbone segments requiring 1310 nm optics
• Network equipment replacement and hot‑swappable upgrades

Key specifications

• Data rate: 10 Gbps (SFP+)
• Wavelength: 1310 nm
• Fiber type: single‑mode fiber (SMF)
• Maximum link distance: designed for long‑reach single‑mode links (vendor-specific distance depends on fiber and system loss)
• Connector type: LC duplex
• Form factor: SFP+ hot‑pluggable
• Typical application: 10 Gigabit Ethernet, compatible with 10GBASE standards for single‑mode operation

How to use

Install the transceiver into an available SFP+ port on a compatible switch, router or server until it seats firmly; ensure the host device is powered and supports SFP+ 10G optics. Connect LC duplex single‑mode fiber cables to the module, observing correct transmit/receive orientation. After installation, verify link status and data rate using the host device management interface or LED indicators. For safe handling, avoid touching the optical interfaces and keep dust caps on unused ports.

Recommendations

Use certified single‑mode fiber with appropriate end‑face cleanliness and quality to achieve the expected long‑reach performance. Verify host compatibility with 1310 nm SFP+ modules and review link budget calculations for distance, attenuation and connector loss. Store unused transceivers in anti‑static packaging and protect optical connectors with dust caps when not connected.
