BlueOptics Transceptor SFP E1MG-SX compatible con Brocade/Ruckus 1000BASE-SX LC dúplex 550m fibra multimodo

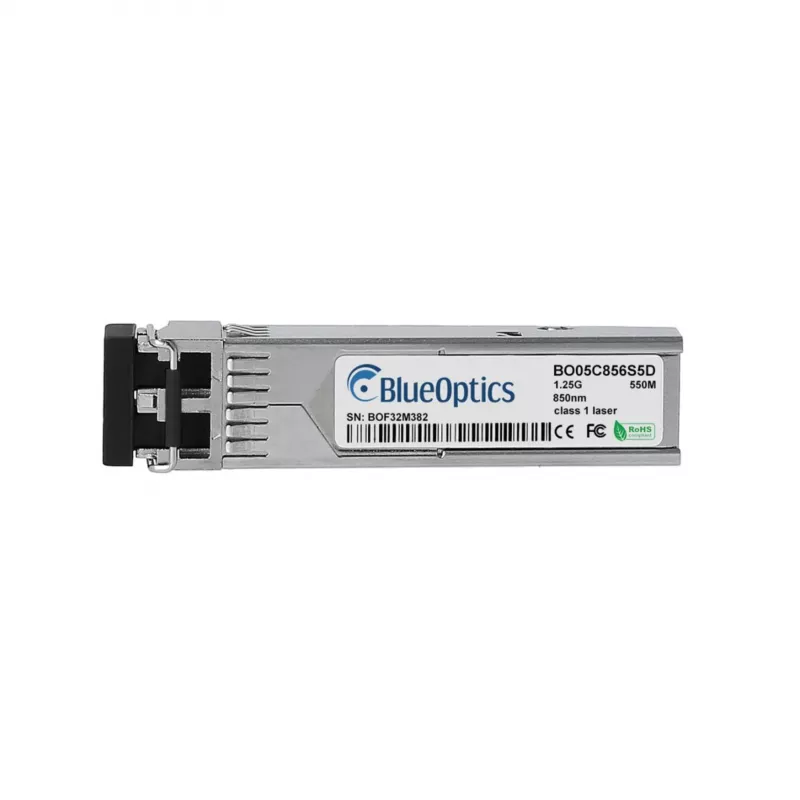

The BlueOptics BO05C856S5D is a high-performance SFP transceiver module designed for seamless compatibility with Brocade and Ruckus networking equipment. This 1000BASE-SX module delivers reliable Gigabit Ethernet connectivity over multi-mode fiber, supporting distances up to 550 meters. With its hot-swappable design and Digital Diagnostic Monitoring (DDM) support, it offers easy installation and real-time performance monitoring. Ideal for enterprise networks, data centers, and campus environments, this transceiver ensures cost-effective and efficient network expansion.

Advantages

Fully compatible with Brocade and Ruckus switches and routers, this BlueOptics module provides a cost-effective alternative to OEM optics without compromising performance. It supports IEEE 802.3z standards and features a VCSEL laser for reliable data transmission. The LC duplex connector and multi-mode fiber compatibility make it a versatile choice for short-to-medium range connections.

Suitable for

• Gigabit Ethernet networking in enterprise LANs
• Data center interconnects
• Campus backbone connections
• Upgrading or expanding Brocade/Ruckus network infrastructure

Key specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps (Gigabit Ethernet)
• Wavelength: 850 nm
• Max Distance: 550 m (over OM2/OM3 MMF)
• Connector: LC Duplex
• Fiber Type: Multi-Mode Fiber (MMF)
• Standard: IEEE 802.3z 1000BASE-SX
• DDM/DOM Support: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Hot-Swappable: Yes
• Compliance: MSA Compliant, RoHS

Recommendations

For optimal performance, use with OM2 or OM3 multi-mode fiber cables. Ensure your switch or router supports SFP modules and is configured for 1000BASE-SX. This module is a direct replacement for Brocade/Ruckus E1MG-SX.
