BlueOptics UACC-AOC-QSFP28-25M-BO Cable de fibra óptica InfiniBand color aguamarina

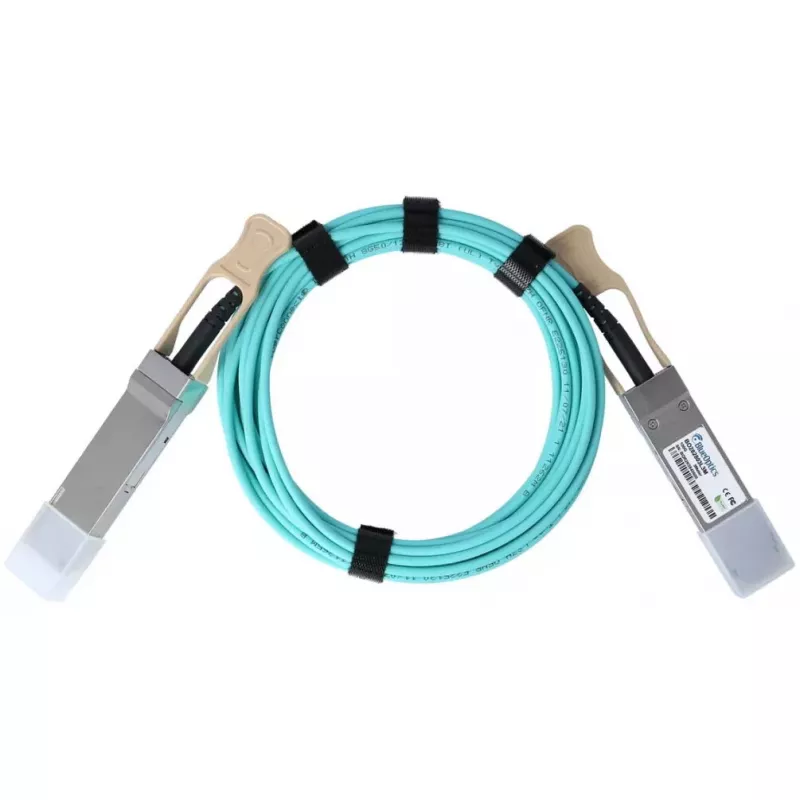

The BlueOptics UACC-AOC-QSFP28-25M-BO InfiniBand fibre optic cable in aqua is an active optical cable (AOC) with QSFP28 male connectors on both ends and a 25-meter pre-assembled multimode fibre link. It is designed for high-speed data transmission up to 100 Gbit/s over short-reach multimode optics and follows common MSA QSFP28 interface conventions. The integrated transmitter and receiver electronics at each connector enable optical signal conversion and simplify connectivity in data center and networking equipment that supports QSFP28 AOC modules.

Advantages

This BlueOptics AOC delivers a factory-terminated, plug-and-play QSFP28-to-QSFP28 connection that reduces the need for patching and fibre cleaning. The pre-assembled multimode cable minimizes attenuation and insertion-loss variability compared with field-terminated links. Built to MSA-compatible mechanical and electrical conventions, the cable supports digital diagnostic monitoring (DDM/DOM) when the host hardware provides that feature, enabling real-time reporting of parameters such as supply voltage, optical power and temperature. The aqua sheath provides clear visual identification in dense cabling environments.

Suitable for (tasks / use cases)

Key specifications

How to use

Install the BlueOptics QSFP28 AOC by inserting each QSFP28 connector into the compatible QSFP28 ports of your network devices following the device manufacturer’s hot-plug guidelines. Ensure both ports support QSFP28 AOC modules and, if you require digital diagnostics, confirm host support for DDM/DOM. Route the 25 m cable to avoid sharp bends and mechanical stress; maintain the manufacturer’s recommended minimum bend radius for multimode optical assemblies. No field termination or polishing is required because the cable is factory-assembled.

Recommendations

Use this AOC in controlled data center or equipment-room environments. Verify compatibility with the target switch, router or storage hardware and, if necessary, test a sample in the specific platform before large-scale deployment. Keep connector dust caps on when the cable is not connected and avoid excessive bending or tension to preserve optical performance.
