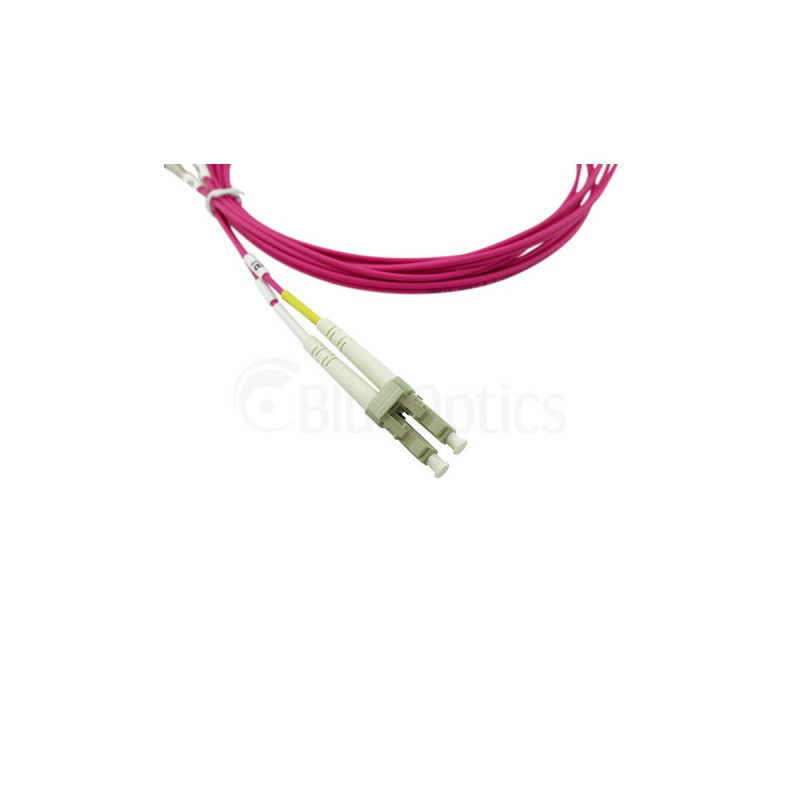

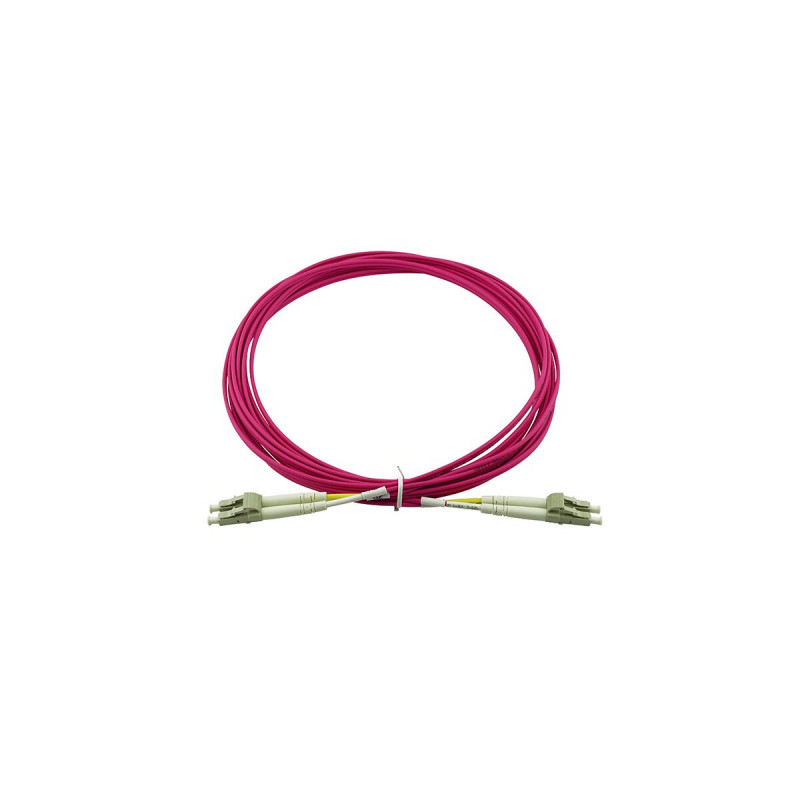

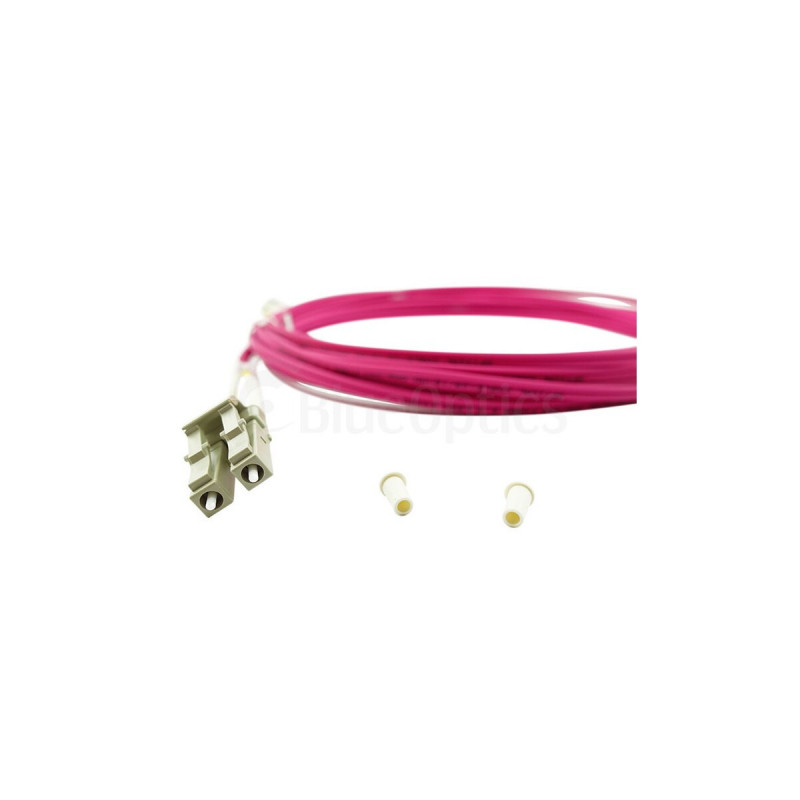

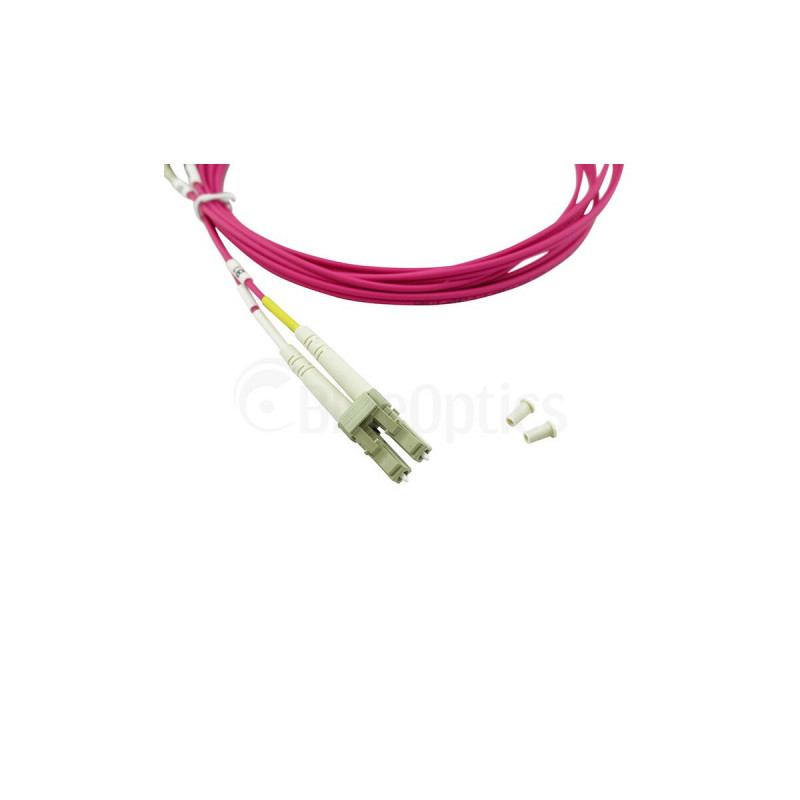

BlueOptics Ubiquiti UACC-OFC-M2-LULU-10M Cable de conexión LC-LC Multimodo OM4 10 metros

Supporting data rates up to 100Gbps, this 10-meter OM4 multi-mode fiber patch cable delivers exceptional bandwidth for high-speed networking. With LC duplex connectors and a low insertion loss of less than 0.3 dB, it ensures reliable and efficient signal transmission in data centers, LANs, and SANs.

Overview

The BlueOptics Ubiquiti UACC-OFC-M2-LULU-10M is a premium fiber optic patch cable engineered for modern high-performance networks. It features OM4 multi-mode fiber with a core/cladding diameter of 50/125 µm, optimized for 10G, 40G, and 100G Ethernet applications. The cable is terminated with LC duplex connectors on both ends, providing a secure and stable connection for SFP/SFP+ transceivers, network switches, and patch panels.

What stands out

• OM4 fiber supports high-speed data transmission up to 100Gbps over short distances.
• Low insertion loss (<0.3 dB) and high return loss (>30 dB) ensure excellent signal integrity.
• Aqua-colored LSZH jacket is flame-retardant and low-smoke, ideal for indoor use.
• Duplex LC connectors with PC polish for easy and reliable mating.
• Bend-insensitive design with a minimum bend radius of 30 mm for flexible installation.

Technical details

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multi-mode OM4
• Connector A: LC Duplex
• Connector B: LC Duplex
• Cable Length: 10 meters
• Core/Cladding Diameter: 50/125 µm
• Jacket Color: Aqua
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to 70°C
• Cable Diameter: 3.0 mm
• Polish Type: PC (Physical Contact)
• Data Rate Support: 10Gbps, 40Gbps, 100Gbps
• Compatibility: Ubiquiti UACC-OFC-M2 series, SFP/SFP+ transceivers, network switches, patch panels
• Application: Data Center, LAN, SAN, FTTx, High-Speed Networking
• Standards Compliance: IEC 60793-2-10 Type A1a.3, TIA/EIA-492AAAD

Our verdict

The BlueOptics UACC-OFC-M2-LULU-10M is a reliable and high-performance OM4 patch cable that meets the demands of modern data centers and enterprise networks. Its robust construction and excellent optical performance make it a smart choice for professionals seeking quality and compatibility.
