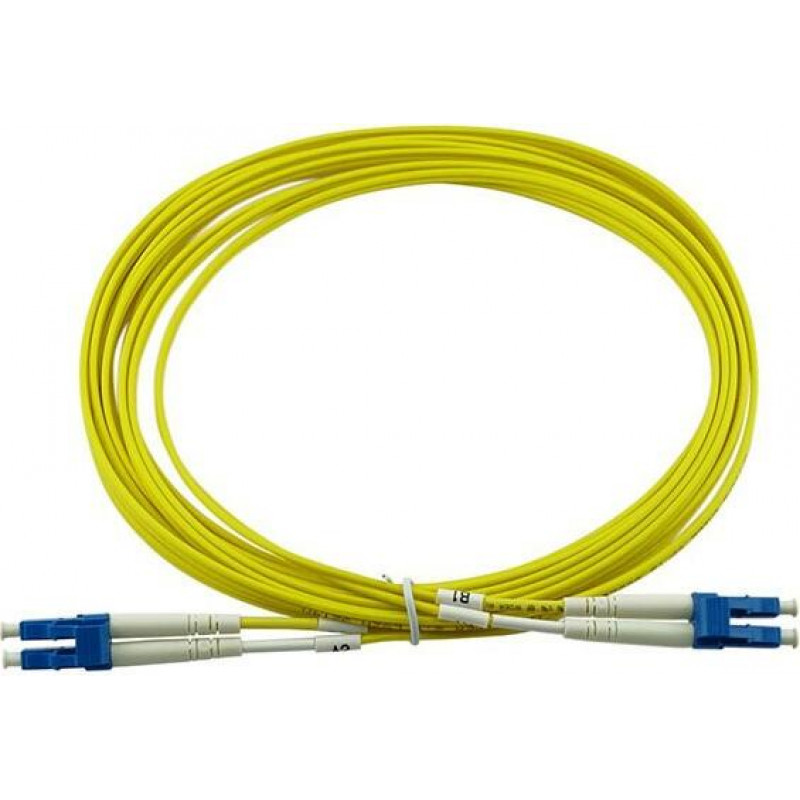

BlueOptics Ubiquiti UACC-OFC-S2-LULU-15M Cable de conexión LC-LC Monomodo OS2 15 metros

Fiber optic patch cable engineered for high-speed, long-distance data transmission in Ubiquiti networks. This 15-meter single-mode OS2 duplex cable with LC/UPC connectors ensures minimal signal loss and reliable performance for enterprise and data center applications.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) guarantee stable, error-free connections. The 9/125 µm core/cladding diameter and OS2 fiber class support wavelengths up to 1550 nm, making it ideal for 10G, 40G, and 100G Ethernet. Yellow LSZH jacket provides fire safety and easy identification.

Suitable for

• Ubiquiti switches, routers, and optical transceivers
• Data center interconnects and backbone cabling
• Telecommunications rooms and campus networks
• High-density fiber patching in racks

Key specifications

• Connector type: LC to LC, UPC polish
• Fiber mode: Single-mode OS2, duplex
• Cable length: 15 meters
• Core/cladding: 9/125 µm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm
• Jacket: Yellow LSZH
• Standards: TIA/EIA-568-C.3, IEC 60793-2-50 Type B1.3

Recommendations

For optimal performance, pair with Ubiquiti UFiber or EdgePoint devices. Avoid bending beyond minimum bend radius to maintain signal integrity. Use in controlled environments to prevent connector contamination.
