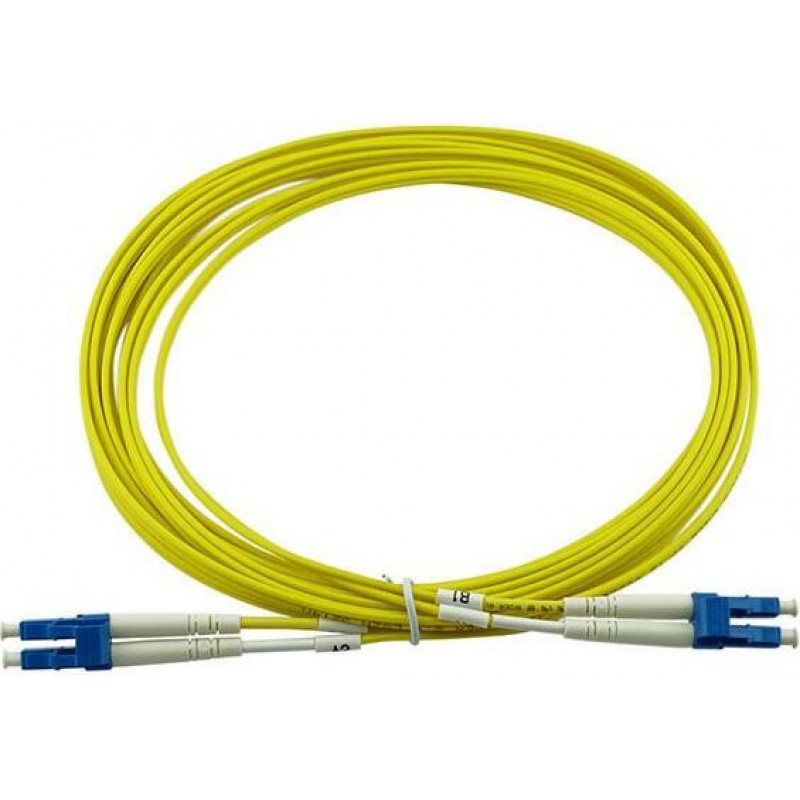

BlueOptics Ubiquiti UACC-OFC-S2-LULU-1M cable de conexión LC-LC monomodo OS2 1 metro

For network engineers who demand precision in fiber infrastructure, the BlueOptics UACC-OFC-S2-LULU-1M delivers a factory-terminated LC duplex to LC duplex single-mode OS2 link that eliminates field polishing and testing overhead. This 1-meter patch cord is built around a 9/125 µm core and cladding geometry, ensuring compatibility with long-haul optics and high-speed transceivers across 1310 nm and 1550 nm windows. Unlike generic jumpers that add unpredictable attenuation, this assembly keeps insertion loss at or below 0.3 dB and return loss at 50 dB or better, preserving link budget for demanding 10G/25G/40G/100G services.

Highlights

• LC duplex to LC duplex connectors, factory polished and inspected for consistent mating
• Single-mode OS2 fiber compliant with ITU-T G.657.A1/A2 and G.652.D bend-insensitive profiles
• Low Smoke Zero Halogen (LSZH) yellow jacket, 3.0 mm diameter, for safe deployment in plenum and riser spaces
• Insertion loss ≤ 0.3 dB, return loss ≥ 50 dB, verified across 1310 nm and 1550 nm
• 1-meter length ideal for patching between adjacent panels, transceivers, and equipment in high-density racks
• Equivalent to Ubiquiti Networks UACC-OFC-S2-LULU-1M, drop-in replacement for UniFi and EdgePoint installations

In daily use

Deploy this cable in data center cross-connects, telecom demarcation points, or enterprise backbone links where a short, reliable single-mode jumper is required. The LSZH jacket emits minimal smoke and toxic fumes in the event of fire, meeting strict indoor cabling codes. With a minimum bend radius of 10 mm, it routes cleanly through cable managers and tight corners without micro-bending losses. The yellow jacket provides instant identification of single-mode fiber, reducing the risk of mixing with multimode patch cords. Each connector is protected with a dust cap and the assembly is individually tested and serialized for traceability.

Full specifications

• Cable type: Fiber optic patch cable, single-mode OS2
• Connectors: LC duplex to LC duplex
• Fiber class: OS2 (ITU-T G.657.A1/A2 / G.652.D)
• Core/cladding diameter: 9/125 µm
• Cable length: 1 meter
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable diameter: 3.0 mm
• Minimum bend radius: 10 mm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60794-2
• Application: Data center, LAN, SAN, FTTx, telecommunications

Final note

When every decibel counts, this BlueOptics patch cable provides the mechanical precision and optical performance required for modern high-speed networks, all in a compact 1-meter form factor that keeps your fiber plant tidy and reliable.
