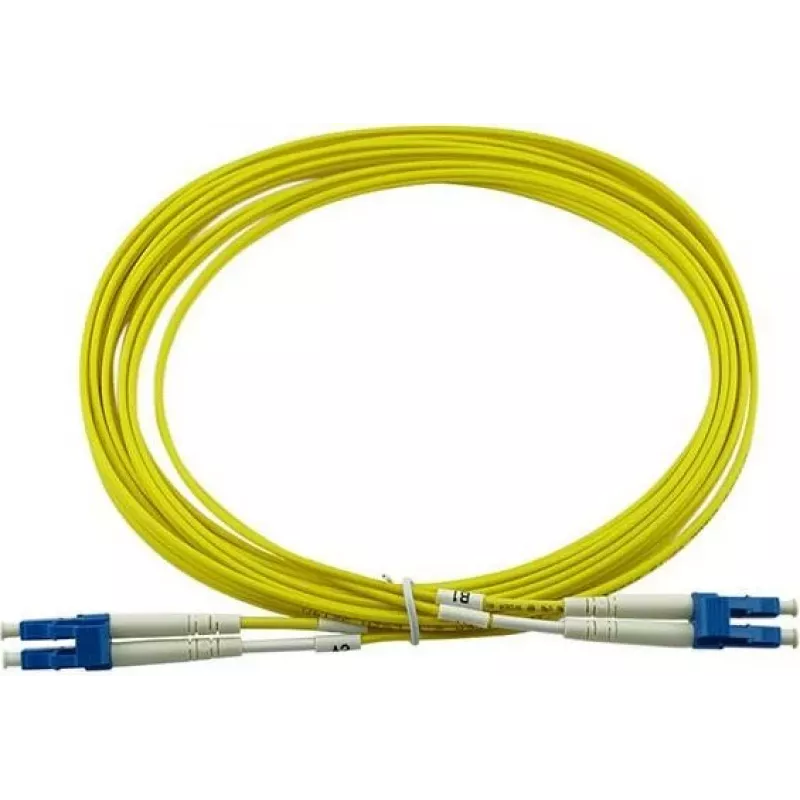

BlueOptics Ubiquiti UACC-OFC-S2-LULU-2M Cable de conexión LC-LC Monomodo OS2 2 metros

In high-density fiber installations, a patch cable that introduces excessive loss or fails under tight bends can bring down an entire link. The BlueOptics UACC-OFC-S2-LULU-2M eliminates that risk. This 2-meter LC-LC single-mode OS2 duplex patch cable is built for Ubiquiti networks, delivering low insertion loss, stable return loss, and a bend-tolerant design that keeps your connections reliable.

Who is it for

Network engineers, data center technicians, and IT integrators deploying Ubiquiti switches, transceivers, or fiber panels. Ideal for short interconnects in racks, patch panels, or direct device-to-device links where OS2 single-mode performance is required.

Main features

• LC duplex to LC duplex connectors with UPC polish for low back reflection
• OS2 single-mode fiber (9/125 µm) compliant with ITU-T G.652.D
• Yellow LSZH jacket for safety and easy identification in dense cabling
• Ceramic ferrules ensure precise alignment and long-term durability
• Bend-insensitive design with 10 mm static bend radius
• 2-meter length fits neatly in racks without excess slack

Specifications

• Cable type: Fiber optic patch cable, duplex
• Fiber mode: Single-mode OS2
• Connectors: LC/UPC to LC/UPC
• Length: 2 m (6.56 ft)
• Insertion loss: ≤ 0.3 dB per connector
• Return loss: ≥ 50 dB
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Core/cladding diameter: 9/125 µm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Minimum bend radius: 10 mm static, 20 mm dynamic
• Attenuation: 0.35 dB/km @ 1310 nm, 0.25 dB/km @ 1550 nm
• Compliance: RoHS, CE, ISO 9001

Tips

For best performance, avoid exceeding the bend radius during installation and use cable management panels to maintain neat routing. Always inspect and clean connector end faces before mating to prevent contamination-related loss.
