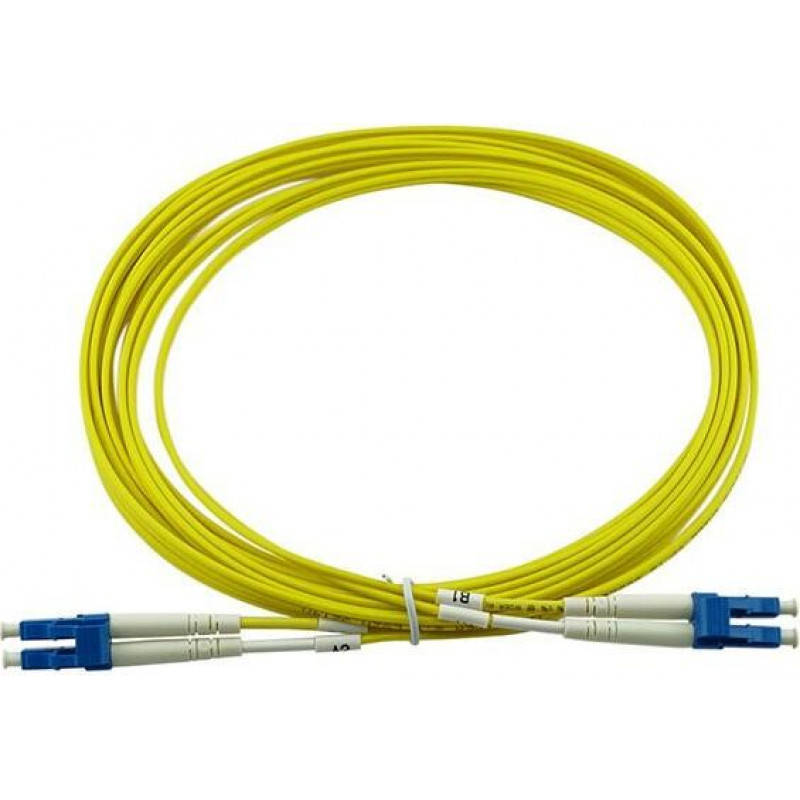

BlueOptics Ubiquiti UACC-OFC-S2-LULU-3M cable de conexión LC-LC monomodo OS2 3 metros

For network engineers who demand precision in fiber connectivity, the BlueOptics Ubiquiti UACC-OFC-S2-LULU-3M LC-LC Single-mode OS2 Patch Cable delivers uncompromising signal integrity in a 3-meter length. Unlike generic patch cables, this model is engineered specifically for Ubiquiti hardware, ensuring a perfect mechanical and optical match that reduces insertion loss and reflection. The OS2 single-mode fiber with a 9/125 µm core supports long-distance, high-bandwidth links, making it ideal for data centers, enterprise backbones, and FTTx deployments. The yellow LSZH jacket not only meets fire safety standards but also maintains flexibility for tight cable management.

Highlights

• LC to LC connectors with UPC polish for low insertion loss (≤ 0.2 dB) and high return loss (≥ 50 dB).
• OS2 single-mode fiber (G.657.A1/A2) optimized for 1310 nm and 1550 nm wavelengths.
• 3-meter length with 2.0 mm diameter and 10 mm minimum bend radius for easy routing.
• LSZH (Low Smoke Zero Halogen) yellow jacket for safety in enclosed spaces.
• Fully compatible with Ubiquiti UACC-OFC-S2-LULU-3M and other standard LC interfaces.

In daily use

Installation is straightforward: the duplex clip keeps both fibers aligned, and the slim 2.0 mm jacket slides through cable managers without snagging. Whether you're patching between a Ubiquiti switch and a fiber distribution panel or extending a backbone link, this cable maintains consistent performance. The bend-insensitive fiber (G.657.A1/A2) tolerates tight corners without signal degradation, a common pain point in dense racks. Operating temperatures from -20°C to +70°C make it suitable for both climate-controlled data centers and less controlled environments.

Full specifications

• Cable type: Fiber optic patch cable, single-mode OS2
• Connectors: LC to LC, UPC polish
• Fiber class: OS2 (G.657.A1/A2), 9/125 µm core/cladding
• Length: 3 meters
• Jacket: LSZH, yellow, 2.0 mm diameter
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 50 dB
• Minimum bend radius: 10 mm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Standards: TIA/EIA-568-C.3, IEC 60793, IEC 60794, RoHS
• Applications: Data centers, telecommunications, LAN, SAN, FTTx

Final note

BlueOptics pairs OEM-grade compatibility with rigorous testing, giving you a reliable link that won't be the weak point in your network. For Ubiquiti deployments, this cable is a drop-in replacement that meets or exceeds original specifications.
