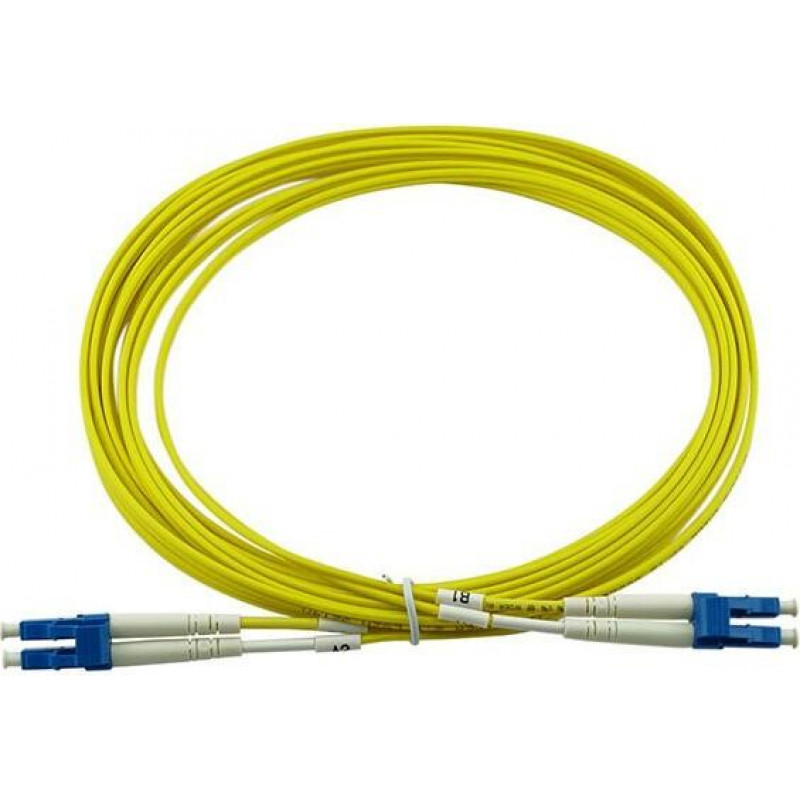

BlueOptics Ubiquiti UACC-OFC-S2-LULU-7.5M cable de conexión LC-LC monomodo OS2 7,5 metros

With a return loss of ≥50 dB and insertion loss ≤0.3 dB, this BlueOptics patch cable delivers exceptional signal integrity for your single-mode fiber connections. The 7.5-meter length provides flexible reach, while the LC-LC duplex configuration ensures reliable, high-performance linking of network devices.

Overview

Engineered for modern high-speed networks, the BlueOptics UACC-OFC-S2-LULU-7.5M is a premium OS2 single-mode fiber optic patch cable. It features LC/UPC connectors on both ends, a 2.0mm LSZH yellow jacket, and duplex construction with two fibers. Designed to support wavelengths of 1310nm and 1550nm, it is ideal for long-distance data transmission in enterprise and data center environments.

What stands out

• Superior optical performance with low insertion loss (≤0.3 dB) and high return loss (≥50 dB)
• LSZH jacket for enhanced safety in enclosed spaces, emitting low smoke and zero halogen
• Durable 2.0mm diameter with tight bend radius (10mm static, 20mm dynamic) for easy routing
• Wide operating temperature range from -20°C to 70°C for versatile deployment
• Compatible with Ubiquiti UACC-OFC-S2-LULU-7.5M specifications

Technical details

• Cable type: Fiber optic patch cable, single-mode OS2
• Connectors: LC/UPC to LC/UPC, duplex (2 fibers)
• Length: 7.5 meters
• Jacket: LSZH, yellow, 2.0mm diameter
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Wavelengths: 1310nm, 1550nm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Minimum bend radius: 10mm static, 20mm dynamic

Our verdict

For professionals seeking a reliable, high-quality single-mode patch cable, the BlueOptics UACC-OFC-S2-LULU-7.5M offers outstanding performance and safety features. Its LSZH jacket and low-loss connectors make it a solid choice for data centers and enterprise networks.
