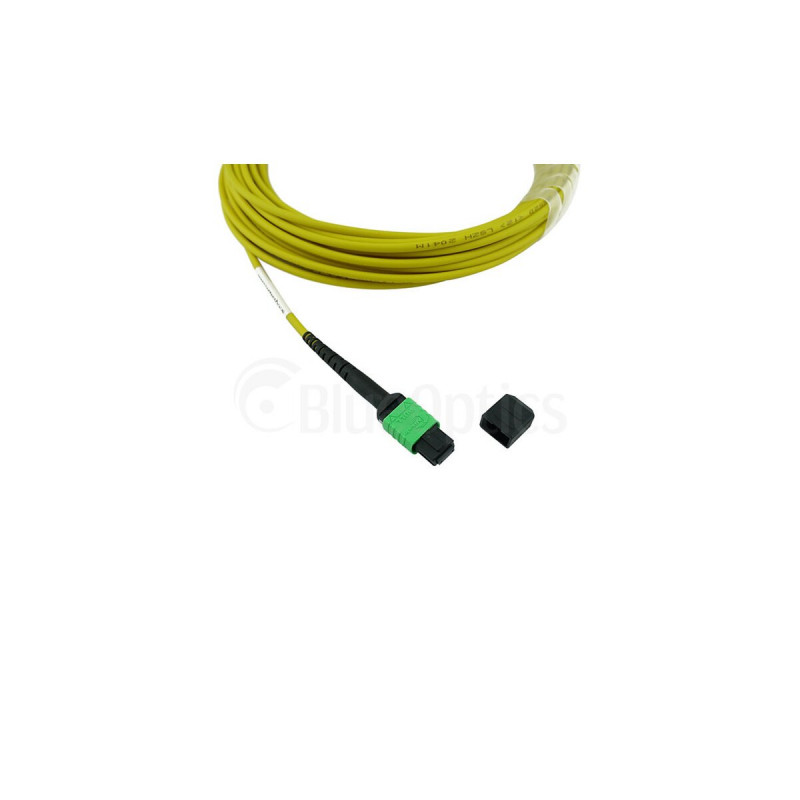

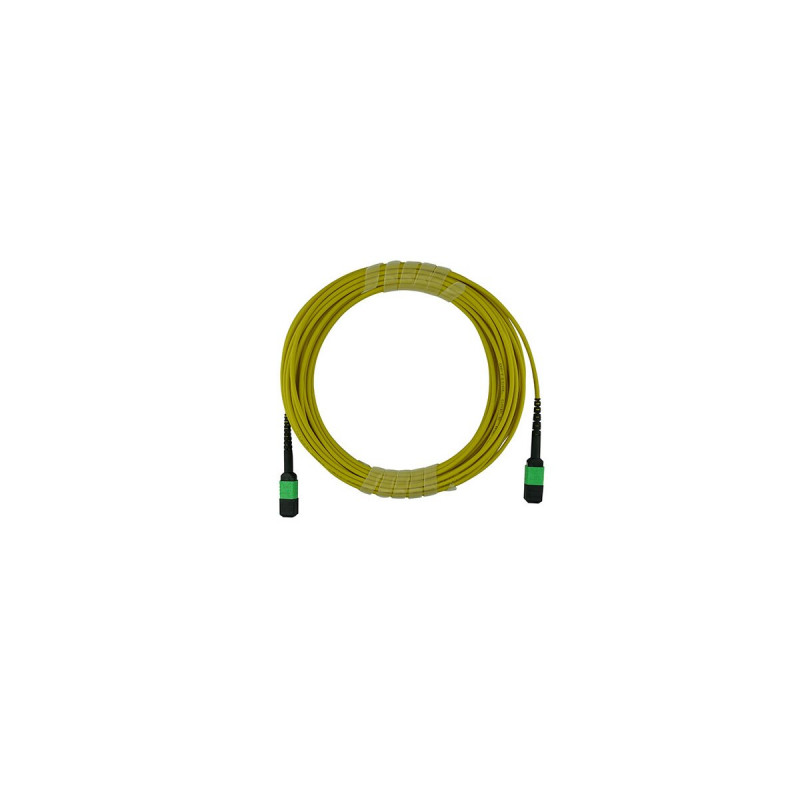

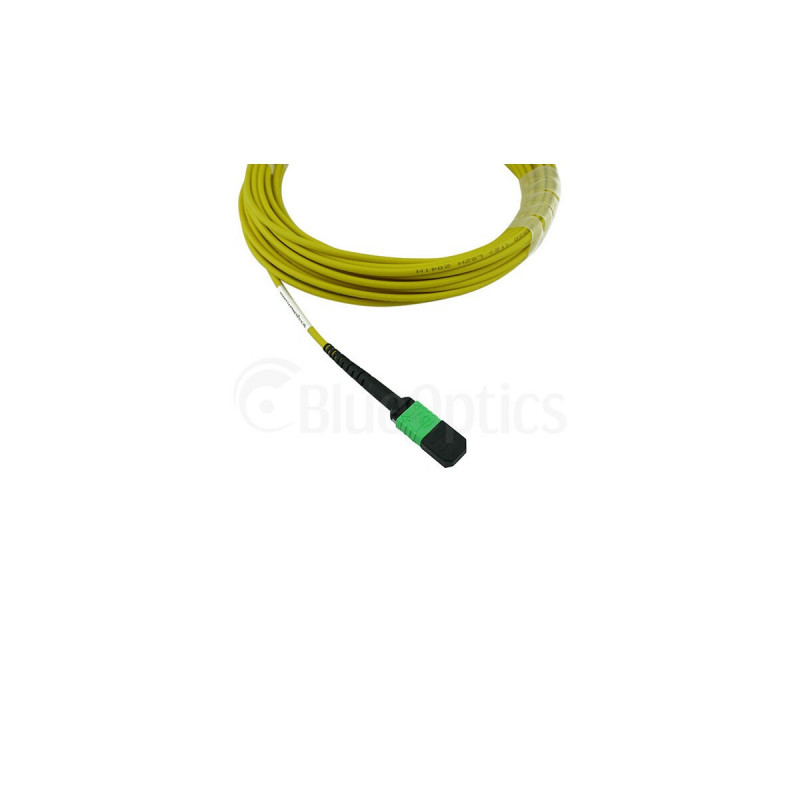

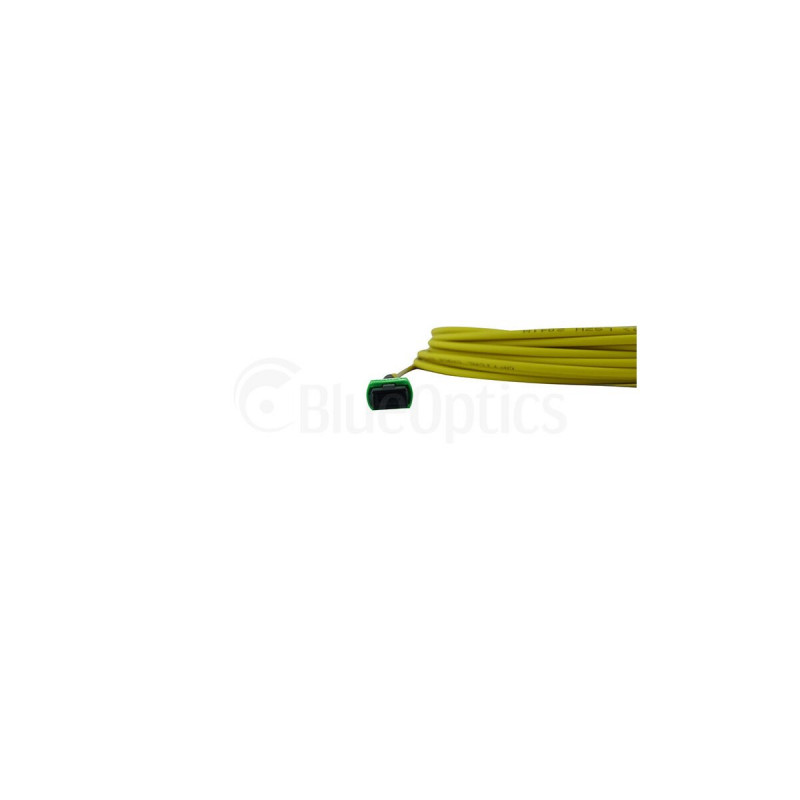

BlueOptics Ubiquiti UACC-OFC-SA-MPMP-20M Cable de conexión MPO-MPO Monomodo OS2 20 metros

Data center technicians working with Ubiquiti UniFi infrastructure often need a reliable, high-density fiber link between switches and transceivers. This BlueOptics 20-meter MPO-MPO single-mode OS2 patch cable delivers exactly that, with 12 fibers in a single connector for efficient 40G/100G Ethernet connections. The yellow LSZH jacket ensures safety in plenum spaces, while Type B polarity maintains consistent signal routing.

Key specifications

• Connector type: MPO (Multi-fiber Push On) to MPO
• Fiber mode: Single-mode OS2
• Length: 20 meters (65.6 feet)
• Fiber count: 12 fibers
• Polarity: Type B
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Yellow
• Insertion loss: ≤ 0.35 dB
• Return loss: ≥ 50 dB
• Attenuation: ≤ 0.35 dB/km at 1310nm, ≤ 0.25 dB/km at 1550nm
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 30 mm (dynamic)
• Compliance: RoHS, CE

Why choose it

Built for high-density environments, this cable reduces cabling complexity by consolidating 12 fibers into one MPO connector. Its low insertion loss and high return loss ensure minimal signal degradation, critical for 40G and 100G links. The LSZH jacket adds fire safety, and the yellow colour provides easy identification of single-mode fiber.

Ideal use cases

• Connecting Ubiquiti UniFi switches with MPO single-mode ports
• High-density data center interconnects
• 40G/100G Ethernet backbone links
• Telecom rooms and enterprise networks

Good to know

This cable is compatible with any equipment supporting MPO single-mode connections, not just Ubiquiti. Type B polarity is standard for many structured cabling systems. Always verify bend radius during installation to maintain performance.
