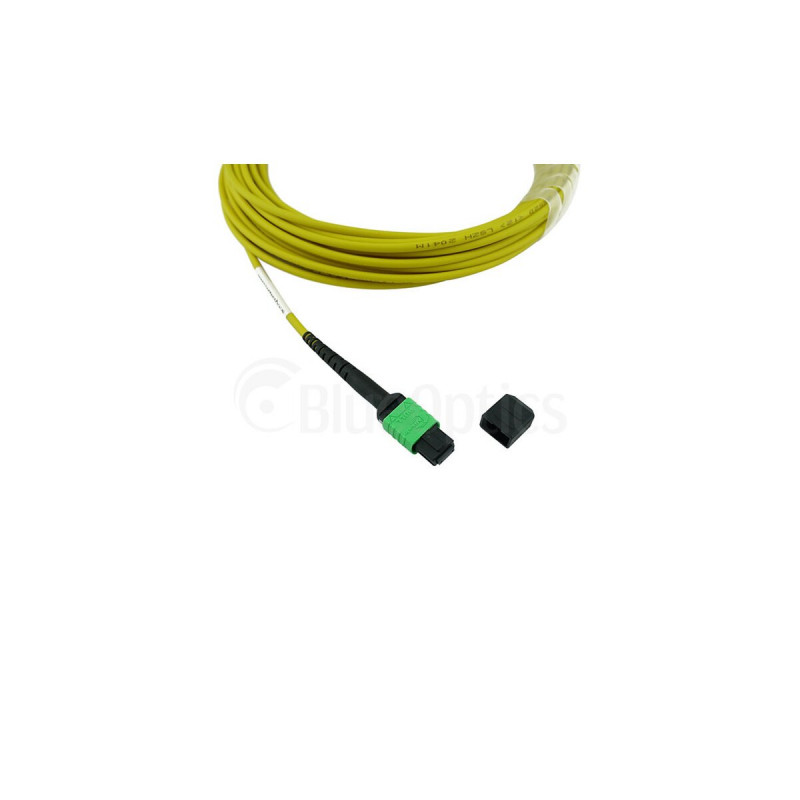

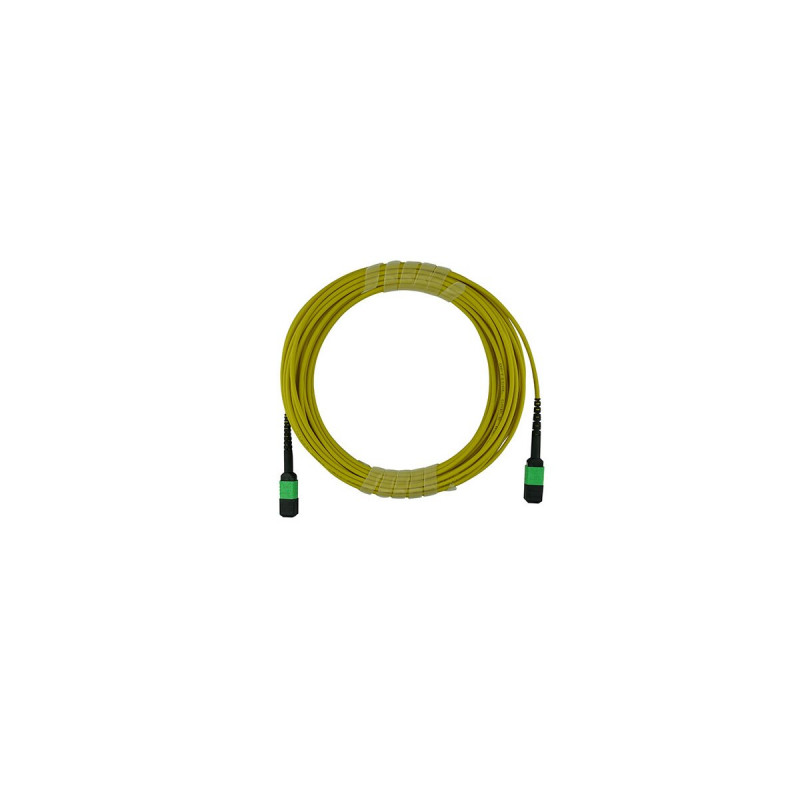

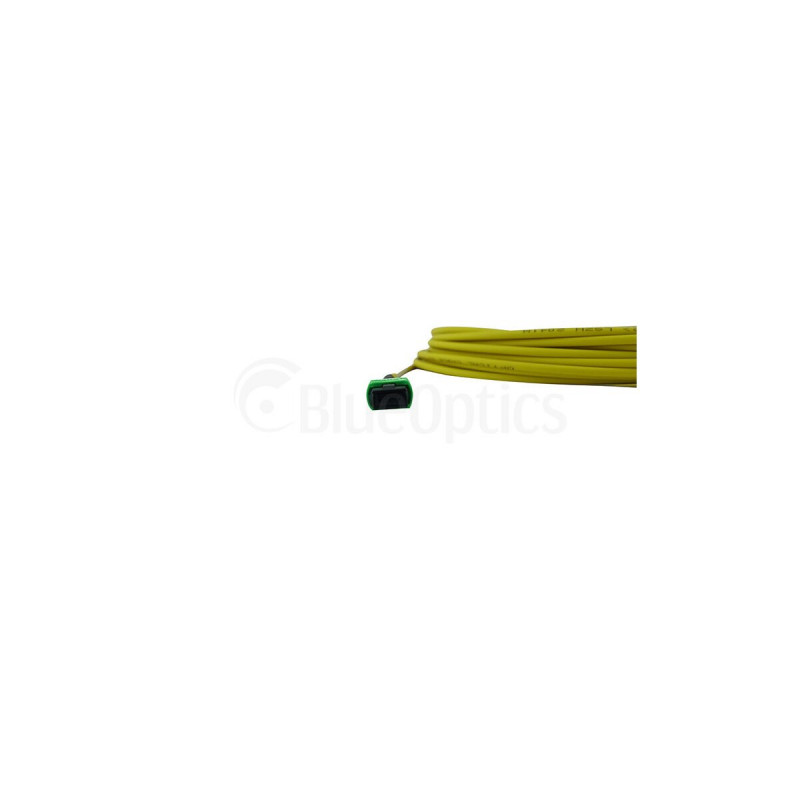

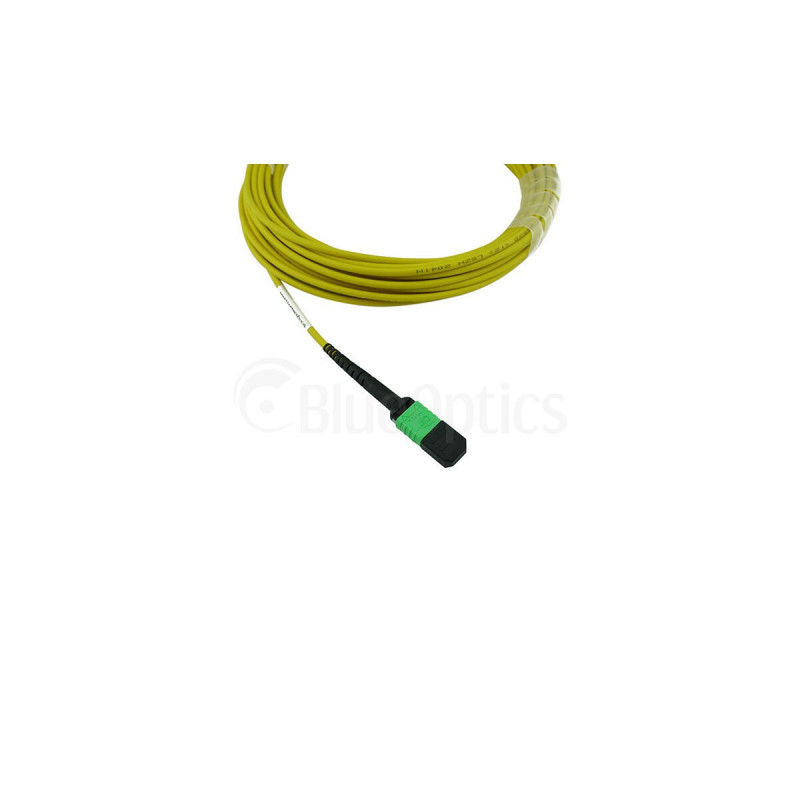

BlueOptics Ubiquiti UACC-OFC-SA-MPMP-3M Cable de conexión MPO-MPO Monomodo OS2 3 metros

For high-density fiber links where every decibel counts, this BlueOptics OS2 single-mode MPO patch cable delivers a 12-fiber trunk in a single connector, eliminating the clutter and insertion loss of multiple duplex jumpers. Built to Ubiquiti's UACC-OFC series specifications, it mates natively with UACC-OFC-SA-MPMP infrastructure and other MPO-based systems, providing a clean, low-loss path for 40G and 100G parallel optics.

Highlights

• 12-fiber MPO (male) to MPO (male) connectors, Type B polarity for cross-over mating
• OS2 single-mode fiber with ≤0.3 dB insertion loss and ≥50 dB return loss
• LSZH yellow jacket for safety in plenum and riser spaces
• 3-meter length ideal for patching within racks or between adjacent panels
• Supports 1310nm and 1550nm wavelengths with low attenuation (0.35/0.25 dB/km)
• Compliant with TIA/EIA-568-C.3, IEC 61754-7, and RoHS

In daily use

Install this cable between MPO cassettes, trunk cables, or directly into QSFP+ transceivers. The push-pull tab allows one-hand insertion and removal even in dense patch fields. The LSZH jacket emits minimal smoke and no halogen gases, making it suitable for enclosed equipment rooms. The yellow color follows OS2 convention for quick identification among multimode runs.

Full specifications

• Cable type: Fiber optic patch cable, single-mode OS2
• Connectors: MPO male to MPO male, 12 fibers
• Polarity: Type B (cross-over)
• Length: 3 m (9.84 ft)
• Jacket: LSZH, yellow
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Wavelengths: 1310 nm, 1550 nm
• Attenuation: 0.35 dB/km @1310 nm, 0.25 dB/km @1550 nm
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, IEC 61754-7, RoHS

Final note

When your MPO link budget is tight, this cable's low loss and stable geometry keep signal integrity high, reducing the need for re-termination or expensive active equipment.
