Sistema de alimentación ininterrumpida PowerWalker VI 600 CSW

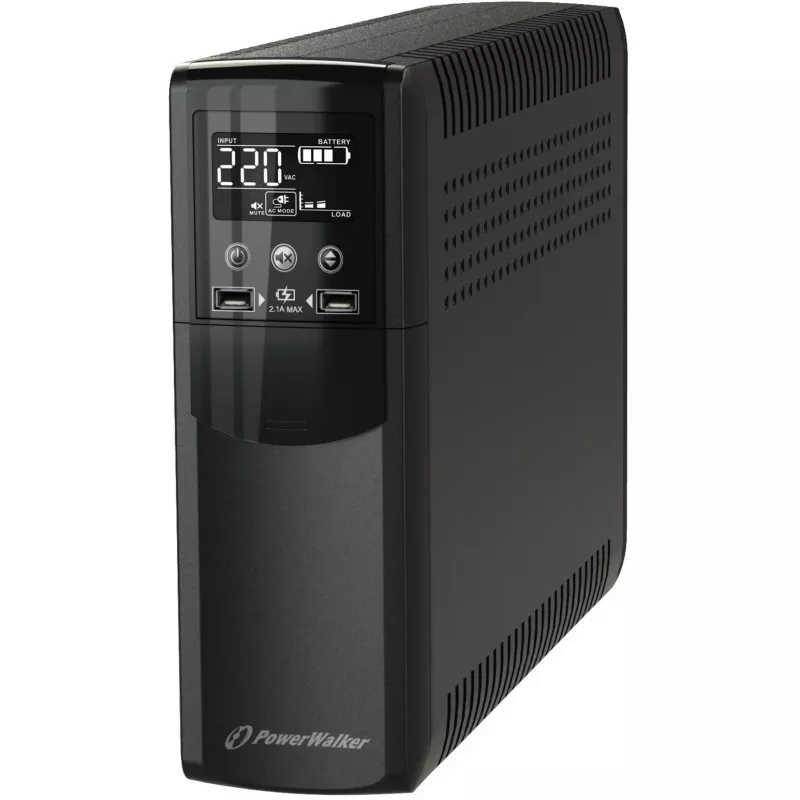

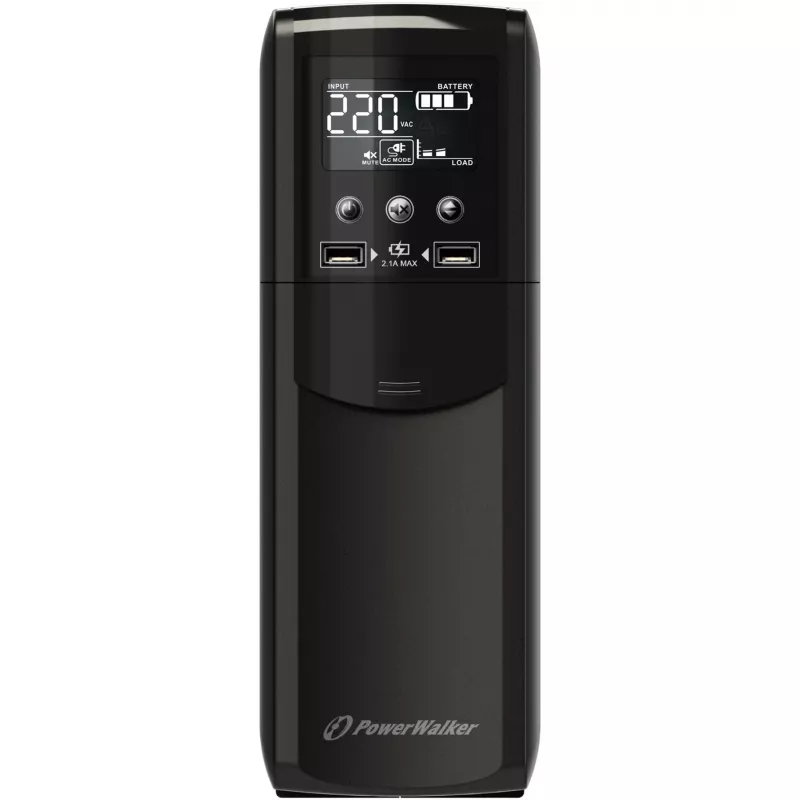

PowerWalker VI 600 CSW is a line-interactive uninterruptible power supply (UPS) with 0.6 kVA / 360 W capacity, four AC outlets and pure sine wave output. The unit integrates an automatic voltage regulator (AVR) to stabilise input voltage between 170–280 VAC and provides backup power during outages while protecting sensitive electronics from surges and voltage fluctuations. The front panel includes two 2.1A USB charging ports and an easy-access battery compartment for user-replaceable batteries. USB HID support allows monitoring and basic control without additional drivers.

Advantages

The UPS delivers a pure sine wave output and features an automatic voltage regulator for stable, clean power. It supports HID USB communication so no extra drivers are required for basic monitoring and shutdown. The battery is designed for easy user replacement via the front panel, and the front-mounted dual 2.1A USB ports provide convenient charging for mobile devices. An auto-dimming screen and single-button wake function improve usability.

Suitable for

• Home and small office desktops and workstations
• Gaming and entertainment systems
• Network attached storage (NAS) and small servers
• Protecting routers, modems and peripheral equipment

Key specifications

• Model: PowerWalker VI 600 CSW (MPN 10121110, EAN 4260074981766)
• Topology: Line-interactive
• Output power: 360 W
• Capacity: 0.6 kVA
• Input voltage range: 170–280 VAC
• Frequency: 50 Hz / 60 Hz
• Transfer time: 10 ms
• Noise level: 40 dB
• AC outlets: 4
• Front USB ports: 2 × 2.1 A
• Output waveform: Pure sine wave
• Colour: Black
• Weight: 8.3 kg

How to use

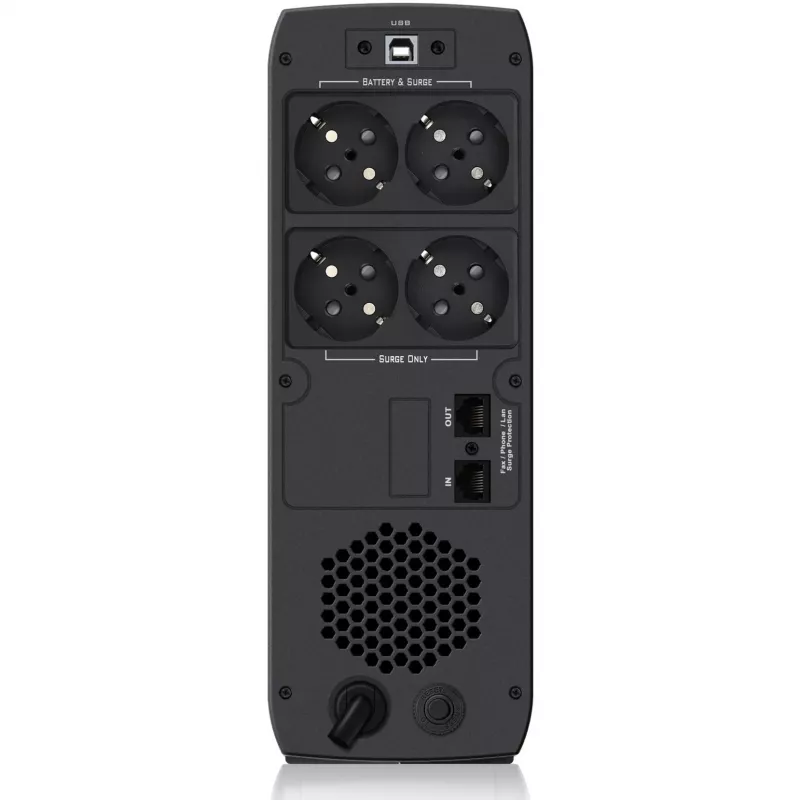

Place the UPS on a level, ventilated surface and connect critical devices to the rear AC outlets. Chargeable devices can use the two front 2.1A USB ports. Connect the UPS to a computer via the USB port for monitoring and controlled shutdown; HID mode allows basic communication without additional drivers. During extended use, follow the manufacturer's guidelines for initial battery charging and calibration. Replace the battery by opening the front panel battery compartment when the UPS signals reduced runtime or battery failure.

Recommendations

For reliable protection, plug only essential equipment into the UPS to avoid overloading. Regularly test the unit and replace the battery when runtime diminishes. Keep the UPS in a cool, dry location and avoid blocking ventilation openings.
