Borna ALLNET ALL369X-A050 1 cm negra

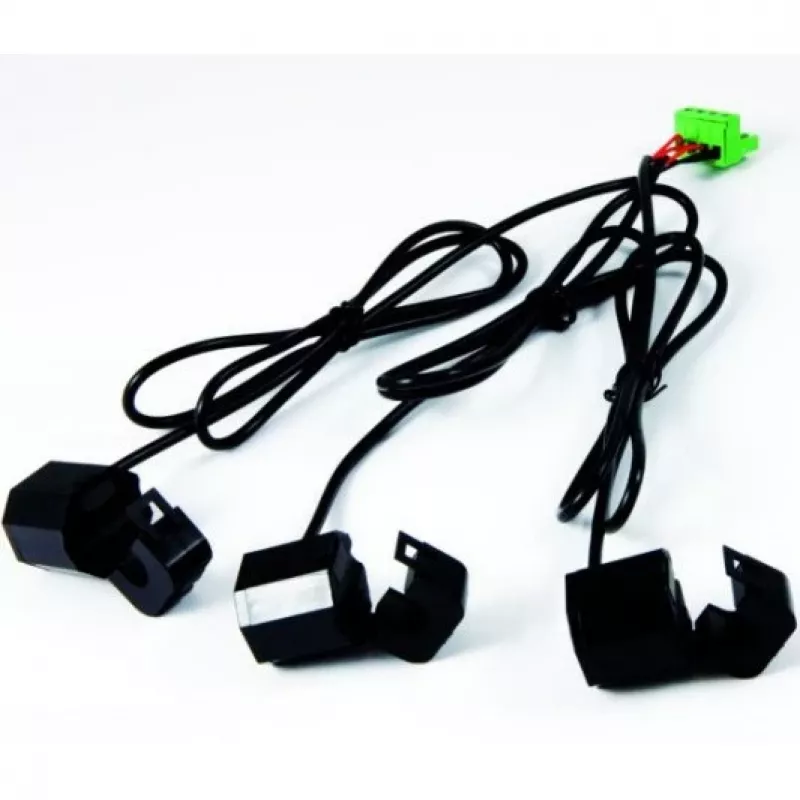

Set of three induction current clamps for use with ALLNET power meters ALL3690 / ALL3691. Each clamp has an inner diameter (opening) of 10 mm and is rated for measuring currents up to 50 A per phase across all three phases. These clamps are intended for use only when connected to a load and must not be used without a current path present.

Advantages

The ALLNET ALL369X-A050 clamps offer a compact 1 cm opening in a black housing, providing a space-saving and uniform solution for three-phase current measurement. Their design ensures straightforward attachment around conductors and compatibility with ALL3690/ALL3691 power meters. The clamps are lightweight and simple to position for reliable current readings up to 50 A per phase.

Suitable for

• Three-phase current monitoring with ALLNET ALL3690 / ALL3691 power meters
• Measuring conductor currents up to 50 A per phase
• Applications requiring compact 10 mm clamp opening

Key specifications

• Model: ALLNET ALL369X-A050
• Inner diameter (opening): 10 mm (1 cm)
• Color: Black
• Maximum current: 50 A per phase
• Quantity: Set of 3 clamps (for three phases)
• Compatibility: ALLNET ALL3690, ALL3691 power meters
• MPN: ALL369x-A050
• EAN: 4038816000118

How to use

Place each clamp around the conductor of the corresponding phase and secure the clamp so the conductor sits within the 10 mm opening. Connect the clamps to the ALL3690 or ALL3691 power meter according to the meter's instructions. Ensure the measurement system is configured for three-phase input and verify readings while the circuit is under load. Do not connect the clamps to the meter when there is no current flowing through the conductor.

Recommendations

Always install and remove the clamps with the circuit de-energized if possible, and follow electrical safety procedures. Never operate the clamps or the meter without a load present, in accordance with the product note: "Current terminals NEVER connect without load (ALL369x)".
