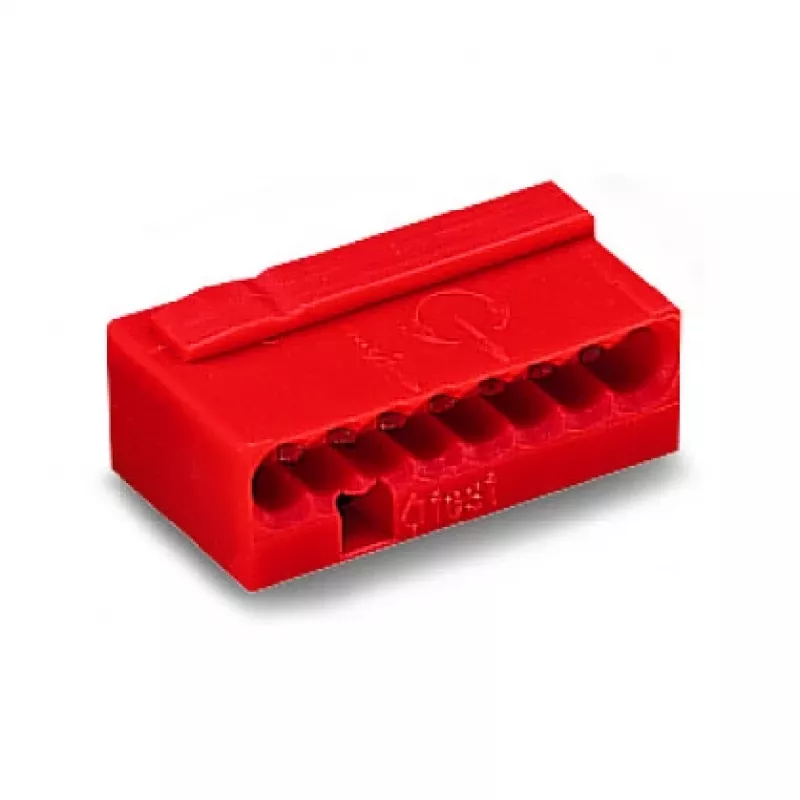

Borne de conexión WAGO 243-808 PUSH WIRE® para cajas de derivación, 8 conductores, rojo, 0,5-2,5 mm²

The WAGO 243-808 is a compact 8-conductor PUSH WIRE® junction box connector designed for fast and reliable wiring in electrical installations. Its push-in actuation allows tool-free connection of solid conductors, saving time and ensuring secure contacts. Ideal for junction boxes, lighting fixtures, and control cabinets.

Advantages

Tool-free push-in connection for solid wires; space-saving design with side entry; high current rating of 24 A; certified to ENEC, UL, and CSA standards.

Suitable for

• Junction box wiring in residential and commercial buildings
• Lighting and switchgear applications
• Control cabinet and distribution board wiring

Key specifications

• Number of conductors: 8
• Connection technology: PUSH WIRE®
• Actuation type: Push-in
• Nominal voltage (EN): 450 V
• Rated surge voltage: 4 kV
• Nominal current (EN): 24 A
• Connectable conductor type: Solid
• Connectable conductor size: 0.5 - 2.5 mm² (20 - 14 AWG)
• Stripping length: 11 mm (0.43 in)
• Colour: Red
• Insulation material: Polyamide 6.6 (PA 6.6)
• Contact material: Electrolytic copper (Cu ETP)
• Clamping spring material: Chrome-nickel spring steel
• Flammability rating: UL94 V-2
• Pollution degree: 2
• Operating temperature: -35 °C to +105 °C
• Wiring type: Side-entry
• Dimensions (L x W x H): 18.4 mm x 10 mm x 6.8 mm

Recommendations

For optimal performance, use with solid copper conductors and ensure proper stripping length. Suitable for indoor use only.
