Borne de paso WAGO 264-701, 6 mm², 800 V, gris, CAGE CLAMP®

The WAGO 264-701 is a high-quality through terminal block designed for reliable and maintenance-free electrical connections. Featuring the innovative CAGE CLAMP® connection technology, it ensures a secure, vibration-proof, and gas-tight connection for solid, stranded, and fine-stranded conductors. This terminal block is ideal for use in control cabinets, junction boxes, and industrial automation systems.

Advantages

With a nominal voltage of 800 V and a nominal current of 41 A, the WAGO 264-701 offers excellent electrical performance. The CAGE CLAMP® technology reduces installation time and eliminates the need for periodic retightening. Its compact design saves space on the DIN-rail, and the gray polyamide housing provides high mechanical strength and insulation.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine wiring

Key specifications

• Product Type: Through Terminal Block
• Number of Conductors: 1
• Number of Connection Points: 2
• Connection Technology: CAGE CLAMP®
• Nominal Cross Section: 6 mm² (AWG 10)
• Nominal Voltage (EN 60947-7-1): 800 V
• Nominal Current (EN 60947-7-1): 41 A
• Solid Conductor Range: 0.5 - 10 mm² (20 - 8 AWG)
• Stranded Conductor Range: 0.5 - 10 mm² (20 - 8 AWG)
• Fine-Stranded Conductor Range: 0.5 - 6 mm² (20 - 10 AWG)
• Stripped Length: 12 - 13 mm (0.47 - 0.51 inch)
• Mounting Type: DIN-rail 35
• Color: Gray
• Insulation Material: Polyamide (PA 66)
• Pollution Degree: 3
• Overvoltage Category: III

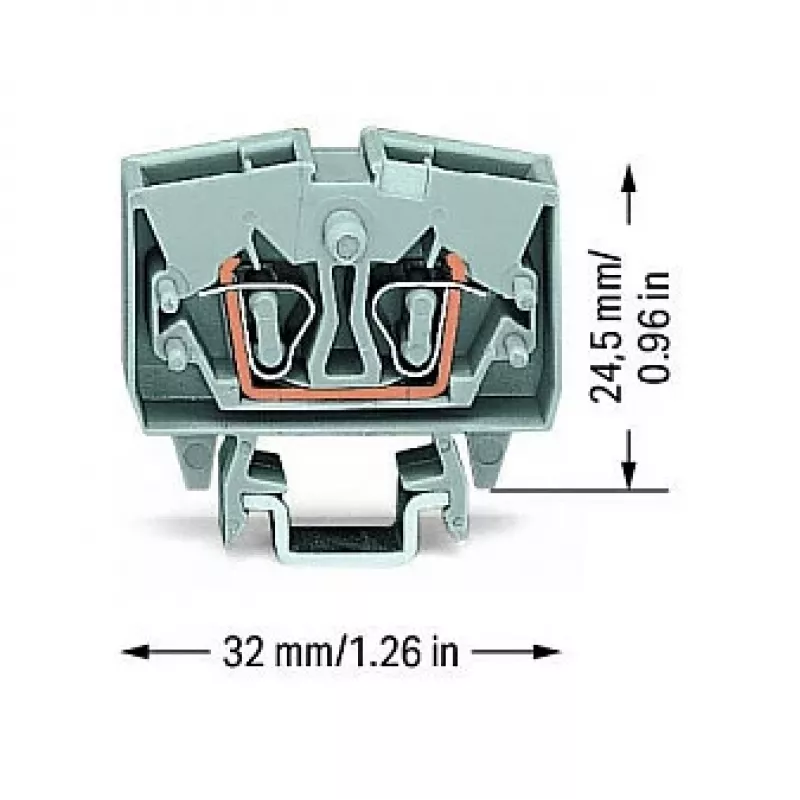

• Dimensions (W x H x D): 6 mm x 32 mm x 24.5 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and insertion force for reliable connections.
