Bosch 0 611 24A 000 martillo perforador 800 W 900 rpm SDS Plus

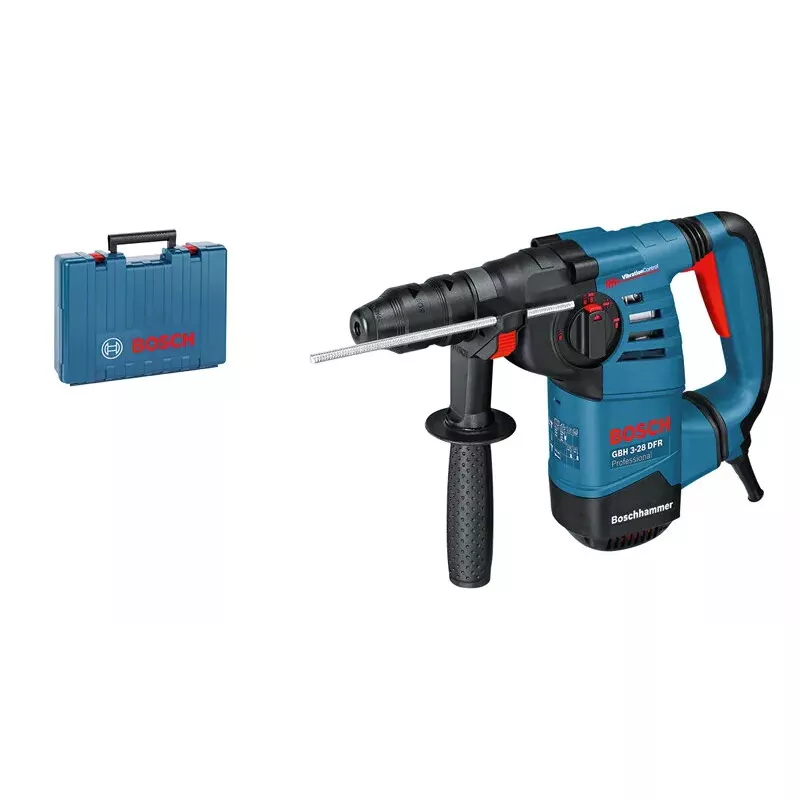

The Bosch 0 611 24A 000 rotary hammer combines high drilling performance with low vibration for comfortable, efficient work. Powered by an 800 W motor with a maximum speed of 900 RPM and an impact energy of 3.1 J, it drills up to 28 mm in concrete and features an SDS Plus chuck. The tool weighs 3.6 kg and has an L-shaped design for balanced weight distribution.

Advantages

This rotary hammer delivers a high drilling rate and offers 20% higher chiselling power compared with other tools in its class. Bosch Vibration Control keeps vibration low (12 m/s²) to reduce user fatigue. A quick-change chuck enables fast switching between hammer drilling in concrete and regular drilling in wood and metal. Additional features include rotation stop for chiselling, ball grommet to prevent cable breaks, a rotating brush plate for consistent power in forward and reverse, and an impact stop for drilling in wood and metal.

Suitable for

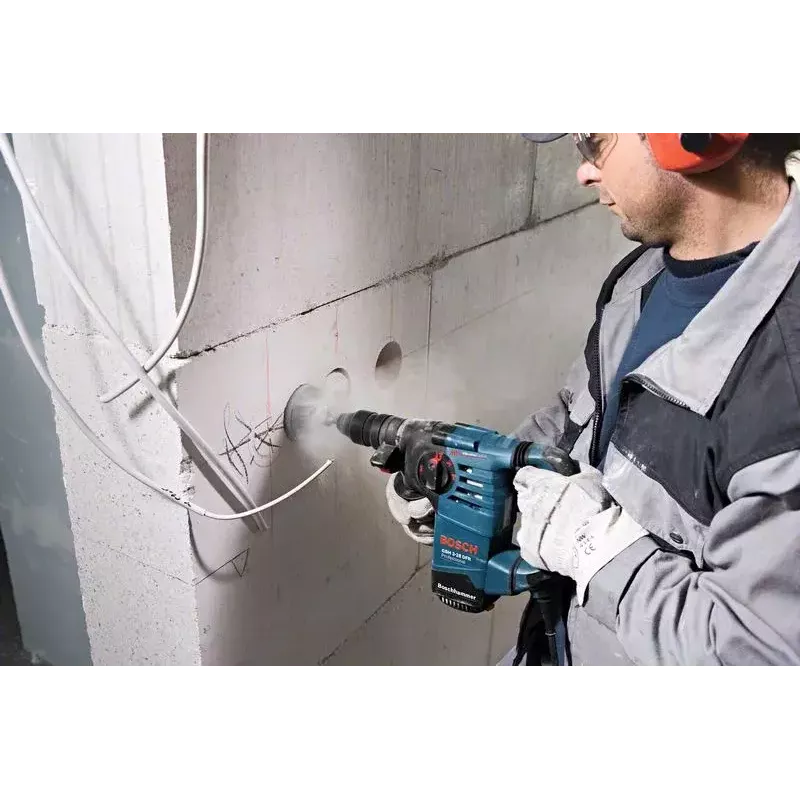

• Drilling holes in concrete and masonry up to 28 mm

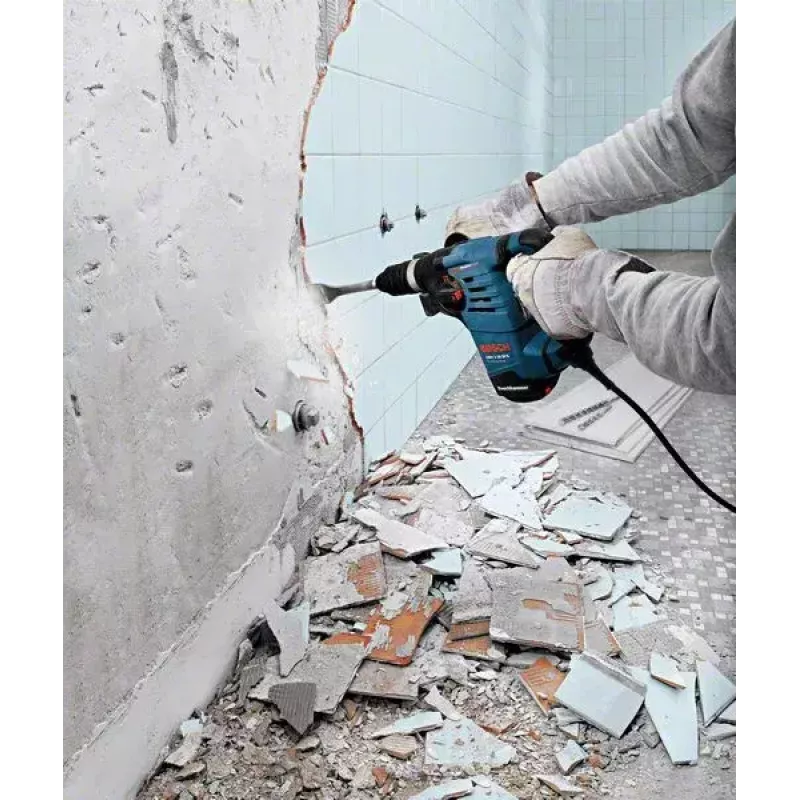

• Chiselling and light demolition work
• Drilling in wood and metal (with impact stop disabled)
• Professional construction and renovation tasks requiring sustained power

Key specifications

• Motor power: 800 W
• Maximum speed: 900 RPM
• Impact energy: 3.1 J
• Chuck type: SDS Plus
• Maximum concrete drilling diameter: 28 mm
• Weight: 3.6 kg
• Vibration level: 12 m/s² (Bosch Vibration Control)
• Colours: Black, Blue

How to use

Select the appropriate drill bit and insert it into the SDS Plus chuck until it locks. Choose the required mode: hammer drilling for concrete, rotation stop for chiselling, or impact stop disabled for drilling in wood and metal. Hold the tool with a firm two-handed grip using the auxiliary handle and maintain a balanced stance; the L-shaped design assists in stable handling. Start at low speed to position the bit, then increase speed as needed. Observe safety instructions and wear protective equipment while operating.

Recommendations

For sustained heavy use, allow periodic breaks to avoid overheating. Use sharp, correct-dimension SDS Plus bits for best drilling performance in concrete. Regularly check the ball grommet and power cable for wear and replace damaged parts to maintain safe operation.
