Bosch 06032A4000 negro, verde, rojo 19500 rpm 550 W

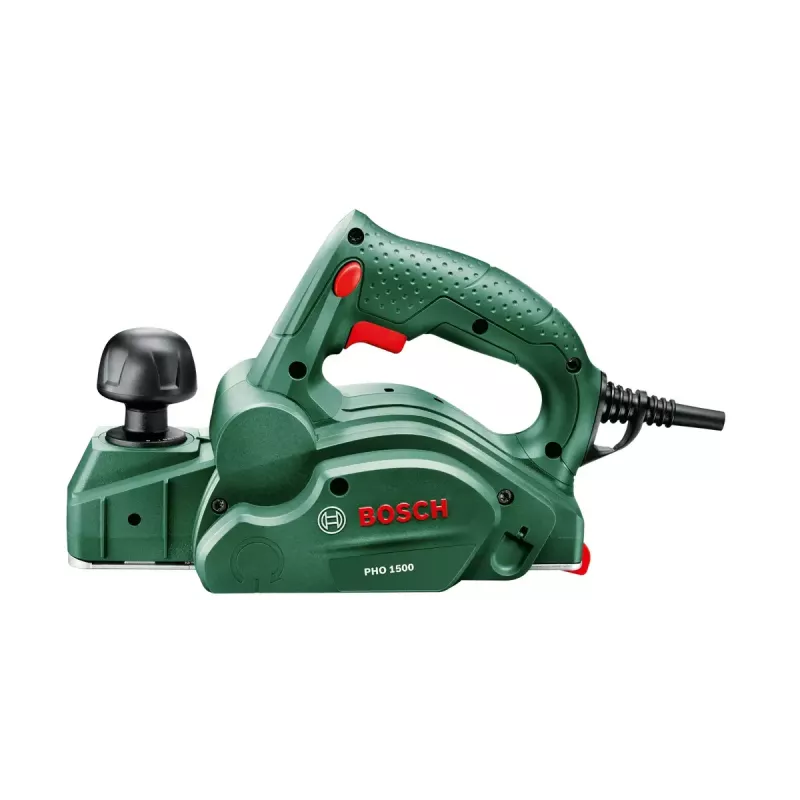

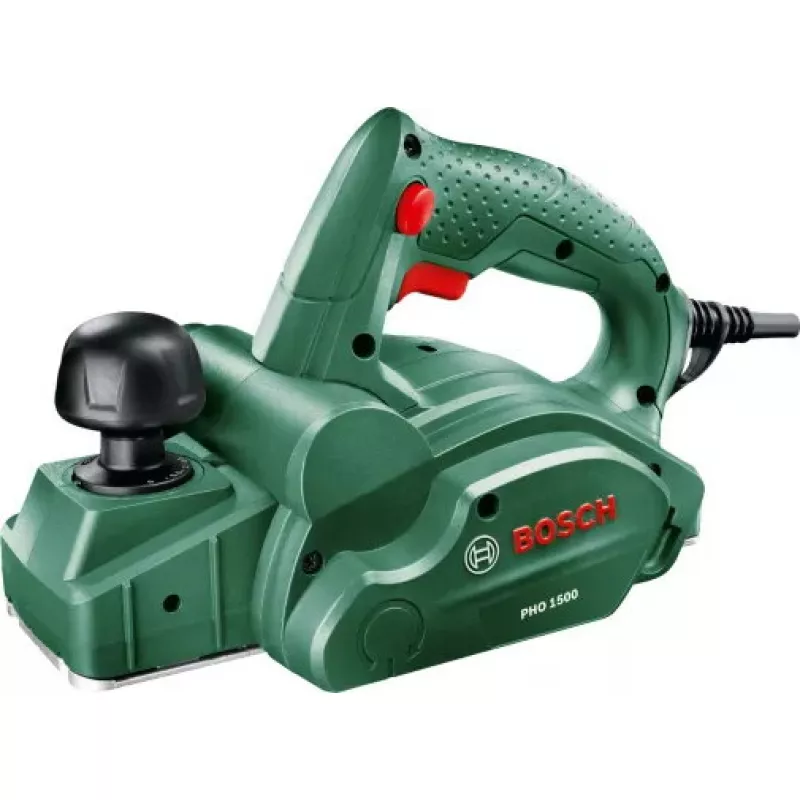

The Bosch Sander 06032A4000 (PHO 1500) is a compact electric planer designed for precise, efficient planing with a maximum cutting depth of 1.5 mm and a planing width of 82 mm. Powered by a 550 W motor and weighing 2.4 kg, it is suitable for a variety of woodworking tasks such as trimming doors, windows, worktops and shelves, chamfering edges and removing coatings from hardwood and softwood. The single-sided chip ejection allows connection of a dust bag or vacuum cleaner to keep the work area cleaner, while the patented Woodrazor blade system delivers smooth, high-quality results.

Advantages

The 550 W motor provides consistent power for controlled material removal up to 1.5 mm depth. The Woodrazor blade system reduces effort and produces a fine finish. Single-sided chip ejection simplifies dust extraction. A spring-loaded parking rest automatically protects the blade and the work surface when the tool is set down. The depth adjustment knob doubles as an auxiliary handle to improve guidance and ensure accurately defined cutting depths.

Suitable for

• Trimming and fitting doors and window frames
• Planing worktops, shelves and joinery components
• Chamfering edges and preparing profiles
• Removing coatings and smoothing hardwood and softwood surfaces

Key specifications

• Manufacturer: Bosch
• Model / MPN: 06032A4000 (PHO 1500)
• Motor power: 550 W
• Maximum planing depth: 1.5 mm
• Planing width: 82 mm
• Idle speed: 19,500 rpm
• Weight: 2.4 kg
• Chip ejection: single-sided, dust bag / vacuum connection
• Blade system: patented Woodrazor

How to use

Set the desired cutting depth using the depth adjustment knob, which can be used as an auxiliary handle for stable guidance. Place the planer flat on the workpiece, start the motor, and move the tool steadily along the grain for even planing. For chamfering, align the V-groove guides with the edge and run the tool at a steady pace. When pausing work, allow the spring-loaded parking rest to engage to protect the blade and surface.

Recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection and dust mask). For best results, plan in several light passes rather than removing the full depth in one pass. Connect a dust extractor or dust bag to the single-sided ejection port to reduce airborne dust and maintain a clear work area.
