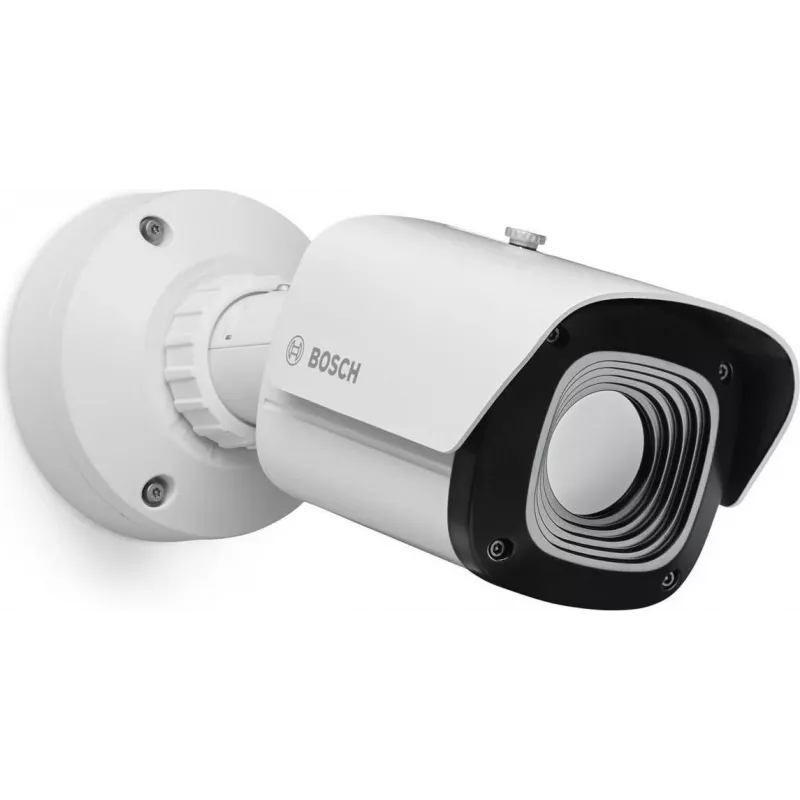

Bosch Bullet Thermal VGA 30° 30Hz IP66/IP67 IK10 PoE+ (NBT-8701-F14VF)

Thermal bullet camera with uncooled VOx microbolometer delivering crisp 640 x 480 thermal video at 30 Hz. Its 14 mm lens provides a 30° horizontal field of view, ideal for perimeter surveillance and early fire detection. Housed in robust aluminum with IP66/IP67 and IK10 ratings, it withstands harsh environments and vandalism. Power via PoE+ or 12 VDC, with H.264/M-JPEG compression, IVA analytics, and MicroSDXC storage up to 2 TB.

Advantages

Detects heat signatures in total darkness, smoke, and challenging weather. The <50 mK NETD ensures fine thermal sensitivity, while Dynamic Contrast Enhancement improves image clarity. Multiple color palettes (White Hot, Black Hot, Rainbow) adapt to different scenarios. Built-in Intelligent Video Analytics reduces false alarms and enables advanced detection rules. Dual power options and wide operating temperature range (-40 °C to +60 °C) ensure reliability in extreme conditions.

Suitable for

• Perimeter protection for critical infrastructure and industrial sites
• Early fire detection in warehouses, forests, and waste facilities
• Border and coastal surveillance in complete darkness
• Monitoring of areas with poor visibility (fog, dust, smoke)
• Outdoor security requiring vandal-resistant and weatherproof cameras

Key specifications

• Sensor: Uncooled VOx microbolometer, 640 x 480 (VGA), 30 Hz
• Lens: 14 mm fixed, 30° horizontal field of view
• Spectral range: 7.5 to 13.5 µm, NETD <50 mK
• Video compression: H.264, M-JPEG
• Ingress protection: IP66/IP67, impact rating: IK10
• Power: PoE+ (IEEE 802.3at) or 12 VDC
• Operating temperature: -40 °C to +60 °C
• Analytics: Intelligent Video Analytics (IVA)
• Storage: MicroSDXC slot (up to 2 TB)
• Alarm I/O: 2 inputs, 1 output
• Housing: Aluminum

Recommendations

For mission-critical thermal surveillance, pair this camera with a PoE+ switch and a VMS supporting IVA rules. Position at a height of 3–5 m with a clear line of sight to the monitored area. Use the MicroSDXC card for edge recording as a backup to central storage. Regularly clean the lens and check the housing seals to maintain IP integrity.
