VOLTCRAFT WB-430 Cámara termográfica -20 a 650 °C 384 x 288 píxeles 50 Hz WLAN pantalla táctil

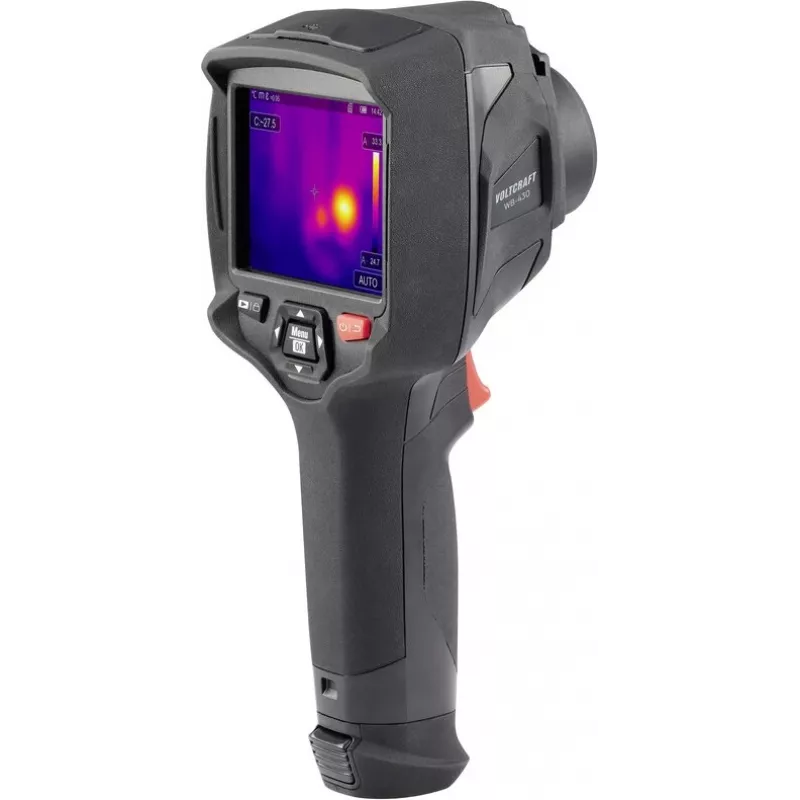

The VOLTCRAFT WB-430 is a high-performance handheld thermal imaging camera with a 384 x 288 pixel detector, delivering crisp thermal images at a smooth 50 Hz frame rate. Its wide temperature range from -20 to 650 °C and exceptional thermal sensitivity of < 40 mK make it ideal for demanding inspections in electrical, mechanical, and building applications.

Advantages

The WB-430 combines a 3.5-inch touchscreen with intuitive controls for efficient on-site analysis. Wi-Fi connectivity and USB-C interface enable quick data transfer and remote operation. With a 5 MP visual camera and adjustable emissivity, you can capture detailed, context-rich thermal images. The rugged IP54-rated housing and up to 4 hours of battery life ensure reliable performance in tough environments.

Suitable for

• Electrical maintenance and fault diagnosis
• Mechanical equipment monitoring
• Building thermography and energy audits
• HVAC system inspection
• Research and development

Key specifications

• Thermal detector resolution: 384 x 288 pixels
• Temperature range: -20 to 650 °C
• Thermal sensitivity (NETD): < 40 mK @ 25 °C
• Frame rate: 50 Hz
• Field of view: 56° x 42°
• Display: 3.5" LCD touchscreen
• Visual camera: 5 MP
• Focus: Fixed focus
• Spectral range: 8 to 14 µm
• Accuracy: ±2 °C or ±2%
• Connectivity: Wi-Fi, USB-C
• Storage: 16 GB internal
• Battery life: up to 4 hours
• IP rating: IP54

Recommendations

For professionals seeking a versatile and precise thermal imaging tool, the VOLTCRAFT WB-430 offers an outstanding balance of resolution, speed, and durability. Its user-friendly touchscreen and comprehensive measurement functions make it a valuable addition to any diagnostic toolkit.
