Bosch HEZ9VDSB2 codo de conducto plano 90° vertical, negro

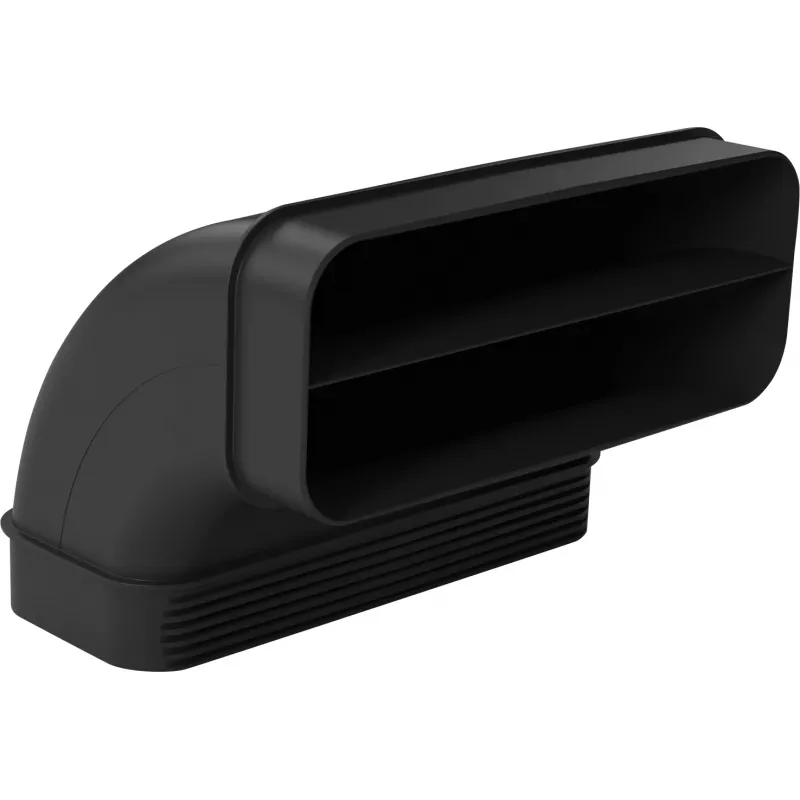

The Bosch HEZ9VDSB2 is a 90° flat duct bend (male) in a vertical configuration with a large radius. It turns the flat duct downwards or upwards and, according to Bosch, enables the installation of hobs with integrated extraction from a worktop depth of at least 70 cm.

Features

• 90° bend, vertical, large radius
• Aerodynamically optimised for minimal pressure loss and maximum air flow
• Connects easily to other elements via a connecting sleeve
• Meets the needle-flame test (IEC 60695-11-5) and building material class B1 (DIN 4102-1)
• Dimensions (W x H): 222 x 161 mm
• Colour: black

Good to know

This is an installation accessory, not a cooker hood. Connecting sleeves and straight duct sections are sold separately.
