Bosch Home and Garden UniversalLevel 360 set nivel láser de líneas cruzadas (0603663E09)

With a 20 m working range and ±0.5 mm/m accuracy, this cross line laser projects a 360° horizontal line and a vertical line for fast, precise levelling across the room.

Overview

The Bosch UniversalLevel 360 Set is a self-levelling cross line laser that projects one 360° horizontal line and one vertical line. It self-levels within ±4° in about 4 seconds, and the 500–540 nm laser diode is clearly visible indoors. Powered by four AA batteries, it runs for up to 4 hours and is protected against dust and splashes to IP54.

What stands out

• 360° horizontal line covers the entire room from one position
• ±0.5 mm/m accuracy for reliable alignment
• Self-levelling within ±4° with 4-second levelling time
• IP54 dust and splash protection for job site use

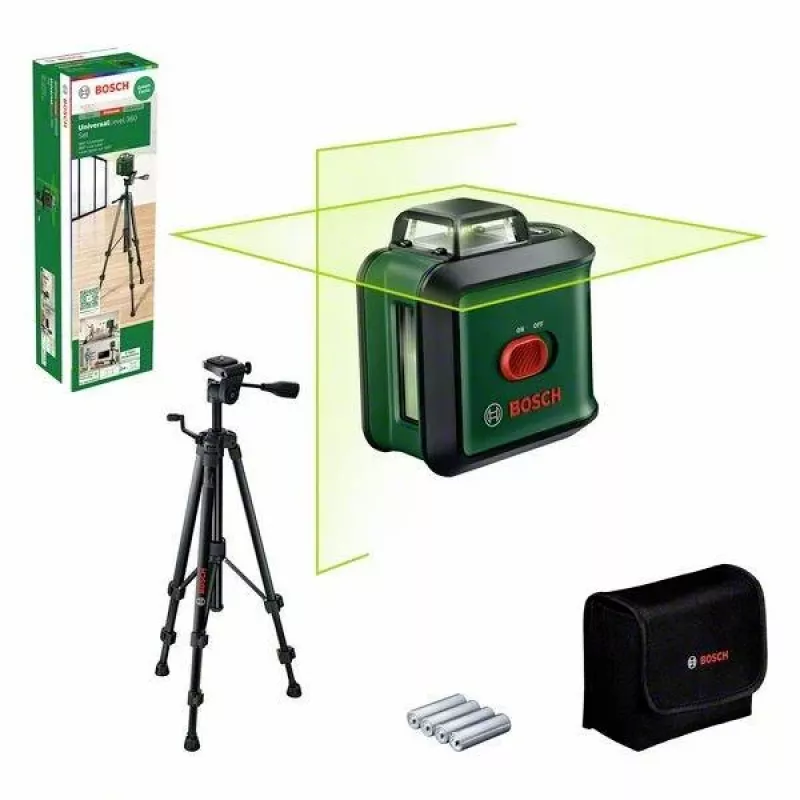

• Includes 1.1 m aluminium tripod and pouch

Technical details

• Laser diode: 500 – 540 nm
• Laser class: 2
• Self-levelling range: ±4°
• Accuracy: ±0.5 mm/m
• Working range: up to 20 m
• Tripod thread: 1/4"
• Power supply: 4 x 1.5 V LR6 (AA) batteries
• Operating time: 4 hours
• Operating temperature: 5 – 40 °C
• Storage temperature: -20 – 70 °C
• IP code: IP54
• Levelling time: 4 s
• Number of laser lines: 2
• Laser projection: 1x 360° horizontal, 1x vertical
• Levelling type: automatic
• Weight: 0.56 kg

Our verdict

A practical cross line laser for interior fitting, tiling, and alignment tasks. The 360° horizontal line and included tripod make it ready to use straight from the pouch.
