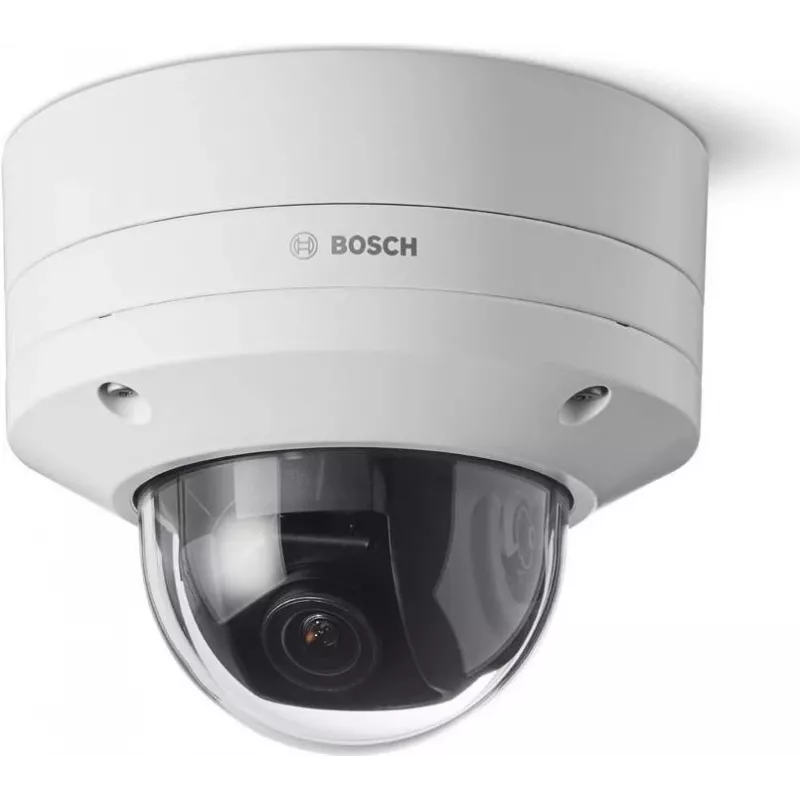

Bosch NDE-8703-RX cámara IP domo fija 4MP HDR X con objetivo PTRZ 4,4-10mm, IP67/IK10, PoE+

Where most fixed domes force a compromise between wide coverage and fine detail, the Bosch NDE-8703-RX pairs a motorized 4.4–10 mm varifocal lens with 4-megapixel HDR X imaging to capture both. Its 134 dB dynamic range tames harsh backlight and glare, while the rugged IP67 and IK10 housing shrugs off rain, dust, and vandalism. Add built-in IVA Pro Buildings analytics and you get a camera that does more than watch—it understands the scene.

Highlights

• 4 MP resolution at 2688 x 1520 for crisp, evidence-grade footage
• Motorized PTRZ lens: remote pan, tilt, rotate, zoom—no ladder needed
• HDR X up to 134 dB: see every detail in high-contrast scenes
• IP67 weatherproof and IK10 vandal-resistant for harsh environments
• IVA Pro Buildings: intelligent detection of people, vehicles, and more
• IR illumination up to 60 m for clear night vision
• PoE+ or 12 VDC power for flexible installation

In daily use

The NDE-8703-RX excels in challenging outdoor and indoor settings—parking garages, loading docks, school entrances, or transit corridors. Its motorized varifocal lens lets installers adjust the field of view remotely from 109° down to 48°, eliminating repeated trips to the mount. Day/night switching with automatic IR cut filter ensures sharp monochrome images in total darkness, while the built-in microphone and speaker connections support two-way audio for deterrence or communication. Local recording to a MicroSDXC card (up to 2 TB) provides edge storage redundancy, and alarm I/O ports integrate with existing security systems. With an operating range from -50 °C to +60 °C, this camera performs reliably in extreme climates.

Full specifications

• Sensor: 1/2.8" progressive scan CMOS
• Max resolution: 2688 x 1520 (4 MP)
• Frame rate: 30 fps at 4 MP, 60 fps at 1080p
• Lens: 4.4–10 mm motorized varifocal, F1.3
• Horizontal field of view: 109°–48°
• Video compression: H.265, H.264, M-JPEG
• Dynamic range: HDR X up to 134 dB
• Minimum illumination: 0.012 lux (colour), 0.002 lux (B/W)
• IR range: up to 60 m
• Ingress protection: IP67
• Vandal resistance: IK10
• Power: PoE+ (IEEE 802.3at Type 2), 12 VDC
• Local storage: MicroSDXC slot, up to 2 TB
• Audio: 2-way, line in/out
• Alarm I/O: 2 inputs, 2 outputs
• Analytics: IVA Pro Buildings
• Operating temperature: -50 °C to +60 °C
• Network: 10/100 Base-T Ethernet (RJ45)
• Day/night: Automatic (ICR)

Final note

For integrators and end users who need a single camera that delivers forensic detail, remote setup convenience, and bulletproof reliability, the Bosch NDE-8703-RX is a standout choice. It replaces multiple fixed cameras in many scenarios, reducing total cost and complexity.
