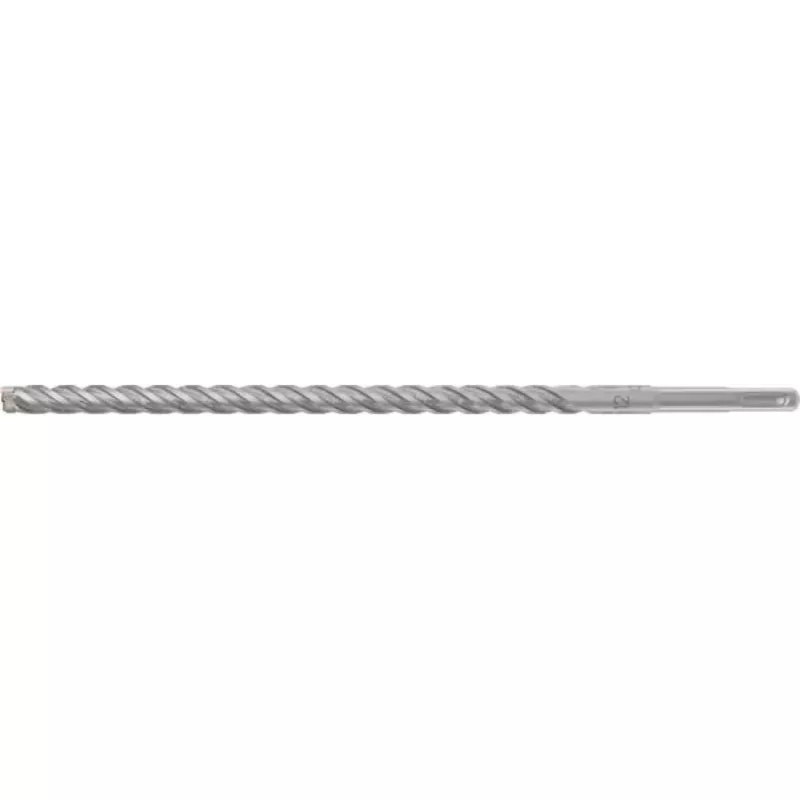

Bosch SDS plus-5X broca martillo 8x400x460mm (2608833794)

The Bosch SDS plus-5X Hammer Drill Bit is a high-performance 4-cutter drill bit engineered for demanding hammer drilling in concrete, masonry, and reinforced concrete. Its full carbide head and 4-flute quadruple helix design deliver fast dust removal and extended life.

Advantages

The 4-cutter geometry with centring tip ensures precise hole starts and reduced vibration, while the full carbide head provides exceptional durability even in reinforced concrete. The 4-flute quadruple helix efficiently clears debris, enabling faster drilling progress and less wear.

Suitable for

• Concrete
• Masonry
• Reinforced concrete

Key specifications

• Drill bit type: Hammer drill bit
• Shank type: SDS-plus
• Diameter: 8 mm
• Working length: 400 mm
• Total length: 460 mm
• Head material: Full carbide
• Number of cutters: 4
• Flute design: 4-flute quadruple helix
• Centring tip: Yes
• PGM-certified

Recommendations

For best results, use with a rotary hammer equipped with an SDS-plus chuck. Apply steady pressure and periodically withdraw the bit to clear dust from the hole.
