Brazo de doble soporte RAM Mounts RAM-201U

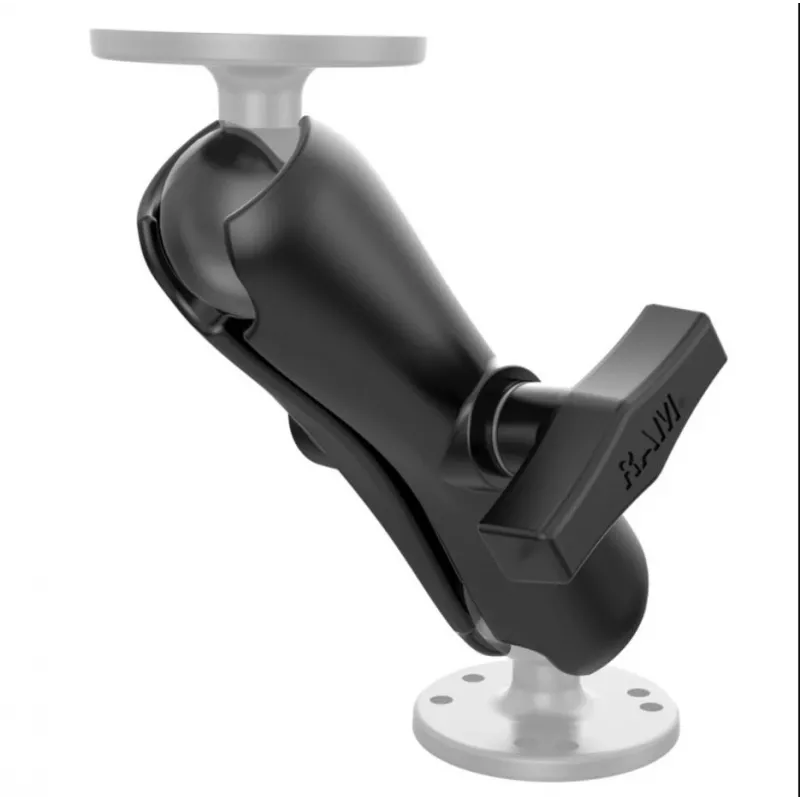

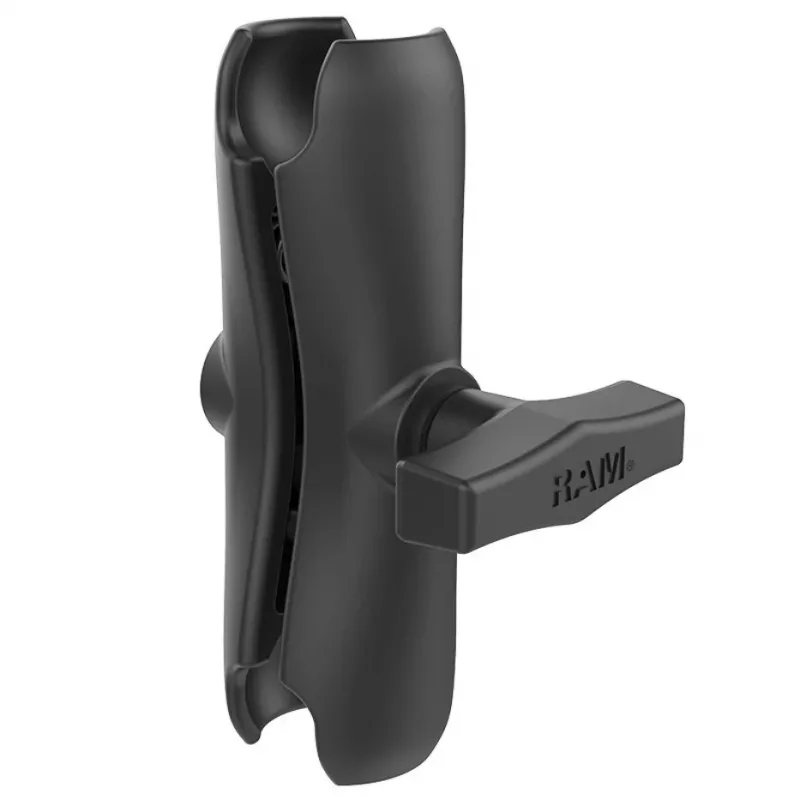

The RAM-201U Medium Length Double Socket Arm is a mounting link with a socket at each end that accepts RAM C-size 1.5" balls. It measures 144.5 mm in height, weighs 322 g and is finished in black. A single internal spring holds each socket open so a ball can be inserted and secured, providing a solid connection between mounting components while allowing broad positional adjustment.

Advantages

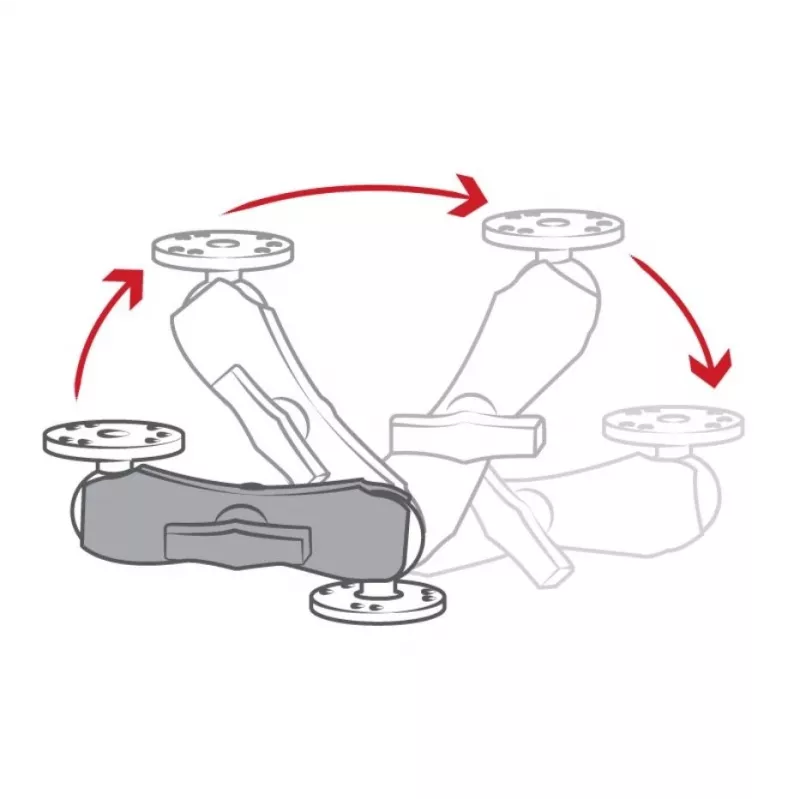

The double socket construction provides a stable, two-joint connection that enables near-infinite adjustment for optimal viewing angles. The internal spring mechanism simplifies installation and removal of ball components without tools. The metal arm and proven RAM socket design deliver reliable strength and repeatable positioning for a range of devices.

Suitable for

• Mounting smartphones and tablets with compatible RAM ball-base components
• Vehicle, marine, or industrial dashboards where adjustable positioning is required
• Professional and personal setups requiring a compact, adjustable arm link

Key specifications

• Model: RAM-201U
• Height: 144.5 mm
• Weight: 0.322 kg
• Colour: Black
• Socket type: Double socket for C-size 1.5" RAM balls

How to use

To assemble, hold the arm so the internal spring keeps the socket open, insert a compatible C-size 1.5" RAM ball into one socket until it seats, then repeat on the opposite socket with the matching ball base or mounting component. Adjust the arm to the desired angle and tighten any external knobs or clamps in your mounting system if present. To remove, depress the socket slightly to release the ball and withdraw it.

Recommendations

Use the RAM-201U with genuine RAM C-size 1.5" ball components to ensure a secure fit. Periodically check connections for tightness and corrosion in harsh environments; replace the arm if any deformity or excessive wear is observed.
