Brazo de monitor médico de pared Neomounts FPMA-HAW200 10-27" - h 0-149 cm - gas hidráulico

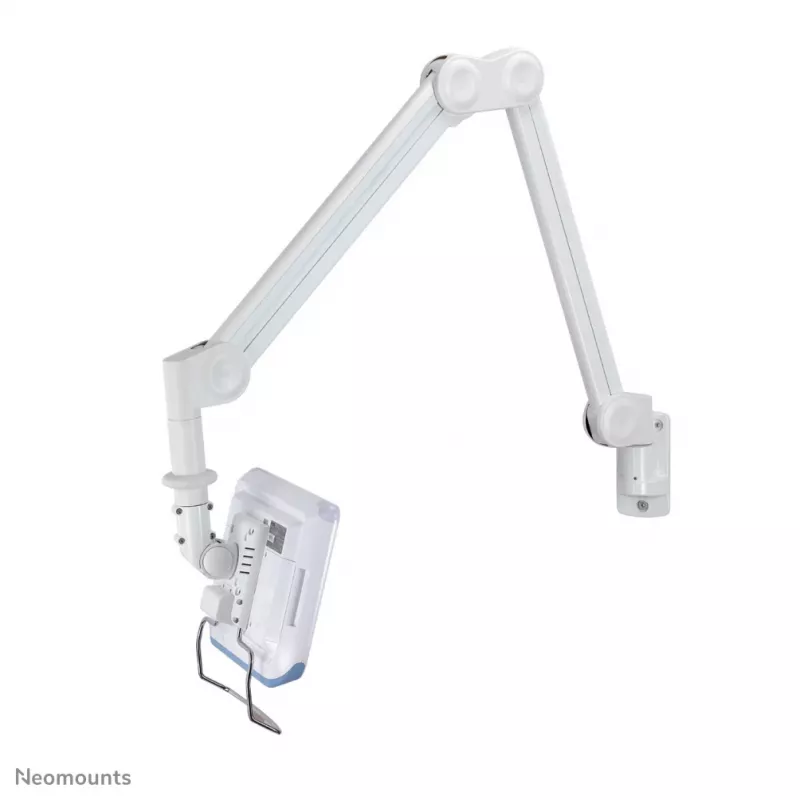

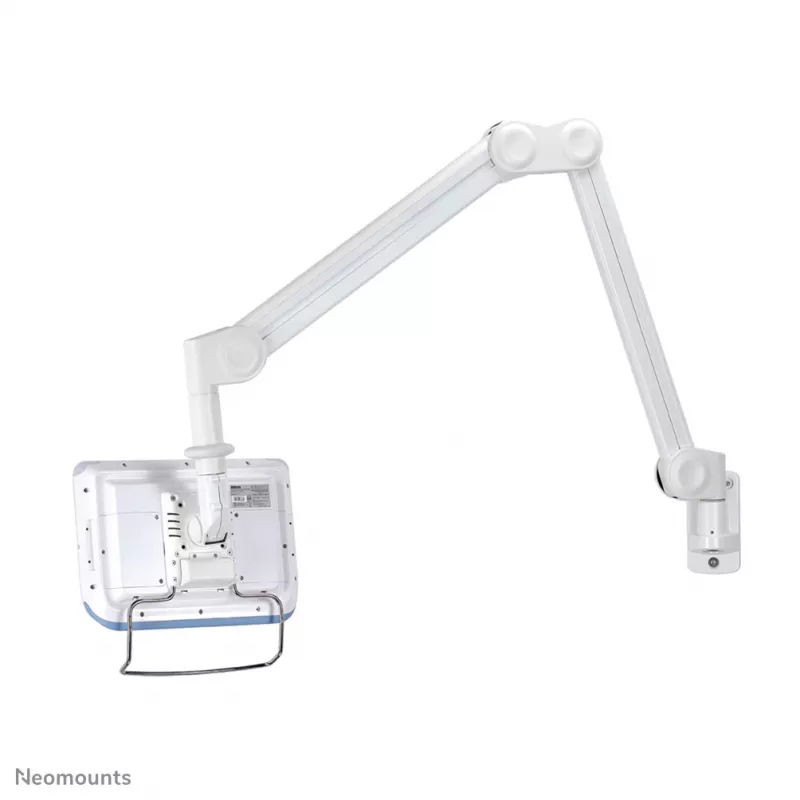

The Neomounts FPMA-HAW200 wall mount is a tilt- and swivel mount designed for medical flat screens from 10" up to 27" (maximum 7 kg). It provides height adjustment with a gas spring and depth adjustment to position the display where ceiling mounting or floor placement are not possible. The mount is finished in white and includes all installation material.

Advantages

The FPMA-HAW200 offers a wide tilt range (up to 55°) and near-full swivel (up to 370°) to set the optimal viewing angle. Height is smoothly adjustable from 0 to 149 cm using an integrated gas spring and depth is adjustable to suit the room layout. Integrated cable management conceals and routes cables between mount and screen for a tidy, medical-appropriate installation. The mount supports common VESA patterns (75x75 and 100x100 mm) and adapter plates are available for other hole patterns.

Suitable for

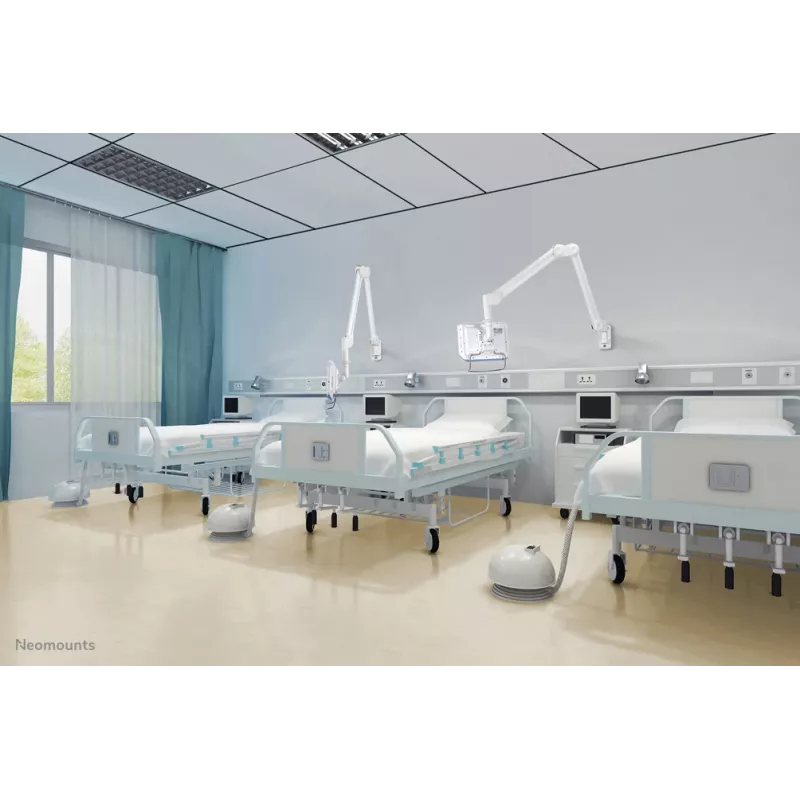

• Medical examination rooms and treatment areas
• Clinical workstations where ceiling or floor mounting is not possible
• Small screens (10"–27") requiring flexible positioning and cable concealment

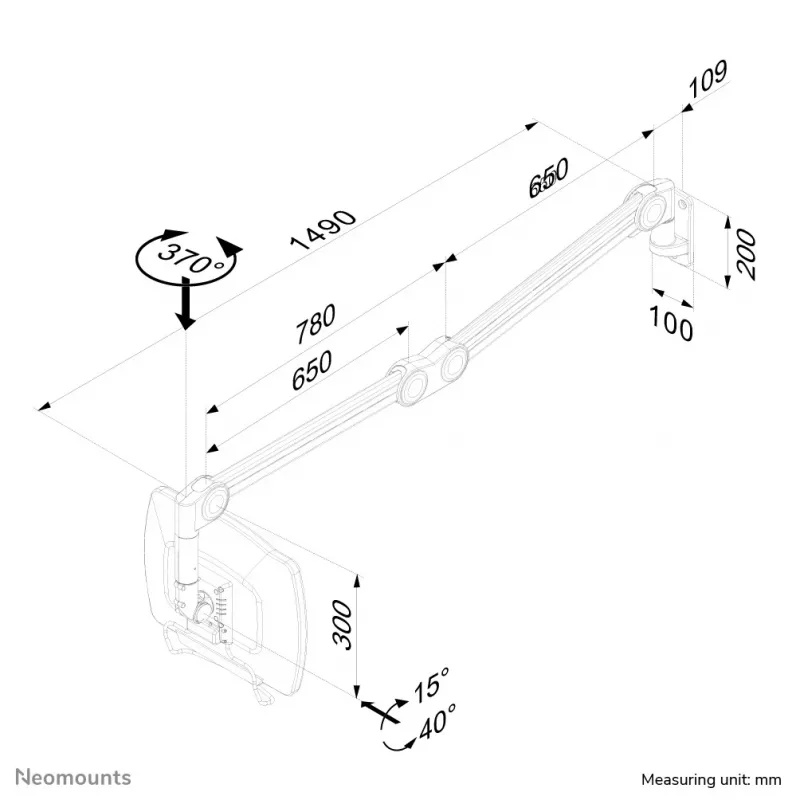

Key specifications

• Compatible screen size: 10"–27"
• Maximum weight capacity: 7 kg
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Tilt range: up to 55°
• Swivel range: up to 370°
• Height adjustment: 0–149 cm (gas spring)
• Depth adjustment: 0–149 cm
• Colour: White

How to use

Mount the FPMA-HAW200 to a suitable wall using the included installation material and ensure the wall construction can support the load. Attach the display to the VESA plate, adjust the gas spring to set the desired height and use the tilt and swivel joints to achieve the preferred viewing angle. Route cables through the integrated cable management channel before finalising the position to keep connections accessible and concealed.

Recommendations

Verify the screen meets the VESA pattern and weight limits (maximum 7 kg). If your display uses a different hole pattern, use an appropriate VESA adapter plate. Confirm the wall structure and fixings are suitable for the combined weight of mount and display before installation.
