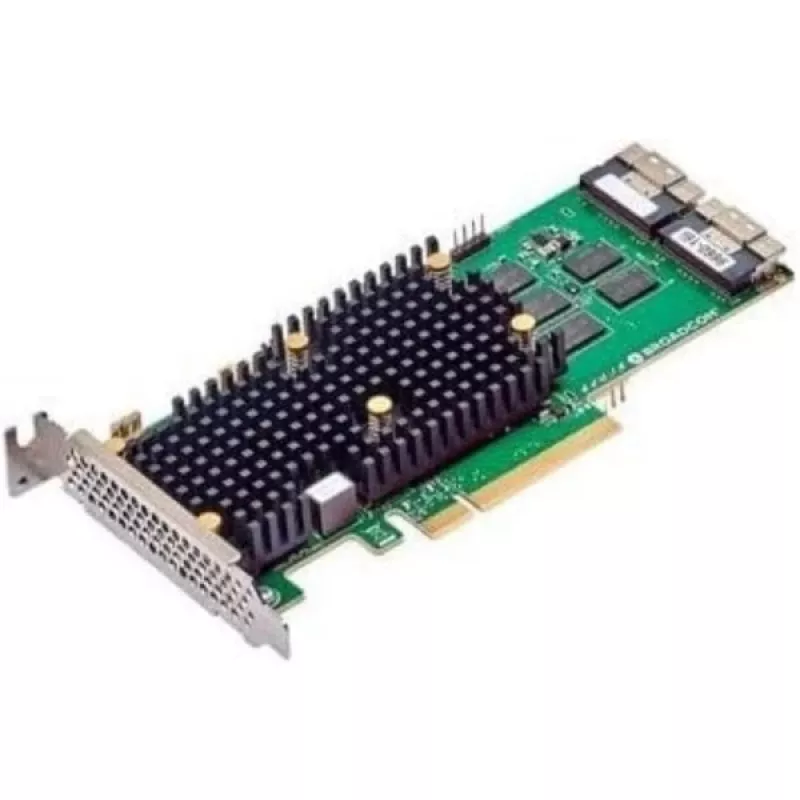

Broadcom MegaRAID 9660-16i - Controladora de almacenamiento (RAID) - 16 puertos/canales - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - RAID 0, 1, 10, 5, 50, 6, 60 - PCIe 4.0 x8 (05-50107-00)

The Broadcom MegaRAID 9660-16i is a high-performance storage controller designed for demanding enterprise environments. It provides robust RAID management and connectivity for SAS, SATA, and NVMe drives via a PCIe 4.0 x8 host interface.

Key features

• 16 ports/channel supporting SATA 6Gb/s, SAS 24Gb/s, and PCIe 4.0 NVMe connectivity via SFF-8654 interfaces
• RAID levels 0, 1, 10, 5, 50, 6, and 60 for flexible data protection and performance optimization
• PCIe 4.0 x8 host interface for high-bandwidth data transfer
• Low-profile form factor suitable for space-constrained server deployments
• Mean time between failures (MTBF) of 3,000,000 hours for reliable long-term operation
• Typical power consumption of 20W for energy-efficient performance
• Compatible with SUSE Linux Enterprise Server and VMware vSphere ESXi operating systems
