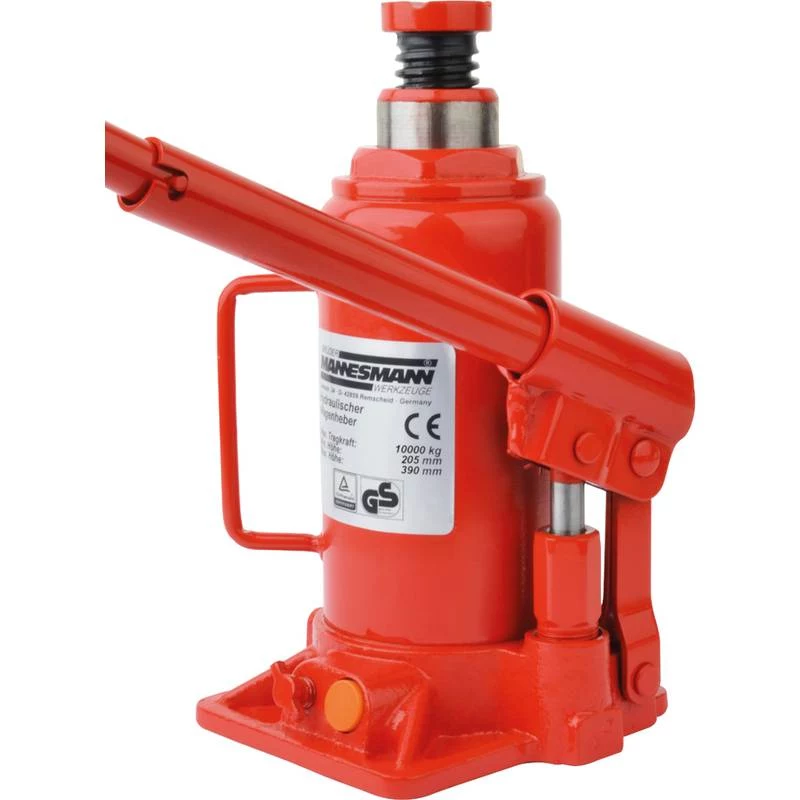

BRÜDER MANNESMANN Gato hidráulico 10 t con válvula de sobrecarga, rojo (M00710)

This hydraulic bottle jack lifts up to 10,000 kg, making it a dependable choice for automotive and workshop tasks. Its integrated overload valve prevents use beyond the rated capacity, protecting both the jack and the load.

Highlights

• 10 t lifting capacity for heavy vehicles and machinery
• Safety overload valve prevents overloading
• Adjustable screw spindle extends the lifting range
• Robust steel construction for durability
• Two-part detachable pump lever for compact storage

In daily use

The jack lifts from 200 mm to 385 mm, with a stroke of 185 mm. The screwable spindle allows fine height adjustment before lifting. A controlled turn valve releases pressure smoothly, lowering the load safely.

Full specifications

• Lifting capacity: 10,000 kg (10 t)
• Minimum height: 200 mm
• Maximum height: 385 mm
• Stroke: 185 mm
• Safety mechanism: Integrated overload valve
• Material: Steel
• Colour: Red
• Operation: Manual hydraulic pump
• Base footprint: 120 x 120 mm
• Pump lever: Two-part, detachable
• Height adjustment: Screwable lifting spindle
• Intended use: Automotive, workshop, garage applications

Final note

A reliable hydraulic bottle jack for professional and hobby use, built to handle heavy loads with safety in mind.
