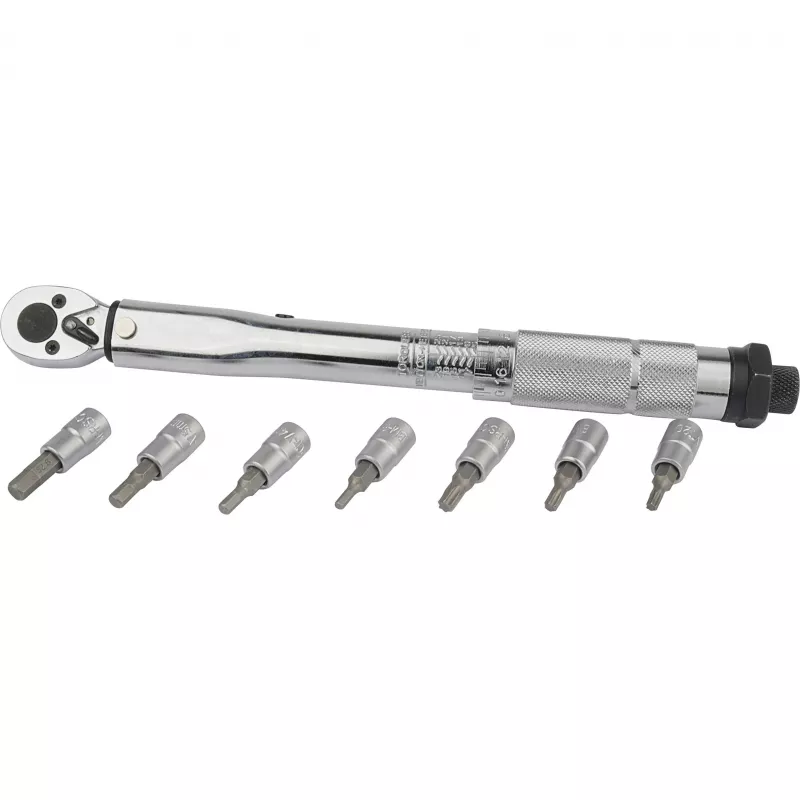

Brüder Mannesmann M18314 Juego de llaves dinamométricas 5-25 Nm, accionamiento de 1/4", 19 piezas

Applying precise torque to small fasteners on bicycles, motorcycles, and small engines is difficult without the right tool. The Brüder Mannesmann M18314 torque wrench set solves this by delivering controlled tightening from 5 to 25 Nm with ±4% accuracy, preventing over-tightening and damage to delicate components.

Who is it for

Mechanics, cyclists, and DIY enthusiasts who work on bicycles, motorcycles, or small engine equipment and need reliable, calibrated torque application for low-torque fasteners.

Main features

• Torque range: 5 - 25 Nm with micrometer scale adjustment
• 1/4 inch (6.3 mm) square drive with reversible ratchet head, 72 teeth
• 19-piece set includes hex bits (2.5, 3, 4, 5, 6, 8, 10, 13 mm), Torx bits (T20, T25, T30), Phillips bits (PH1, PH2), Pozidriv bits (PZ1, PZ2), 100 mm extension, and 1/4" square to 1/4" hex bit adapter
• Chrome vanadium steel construction for wrench and bits

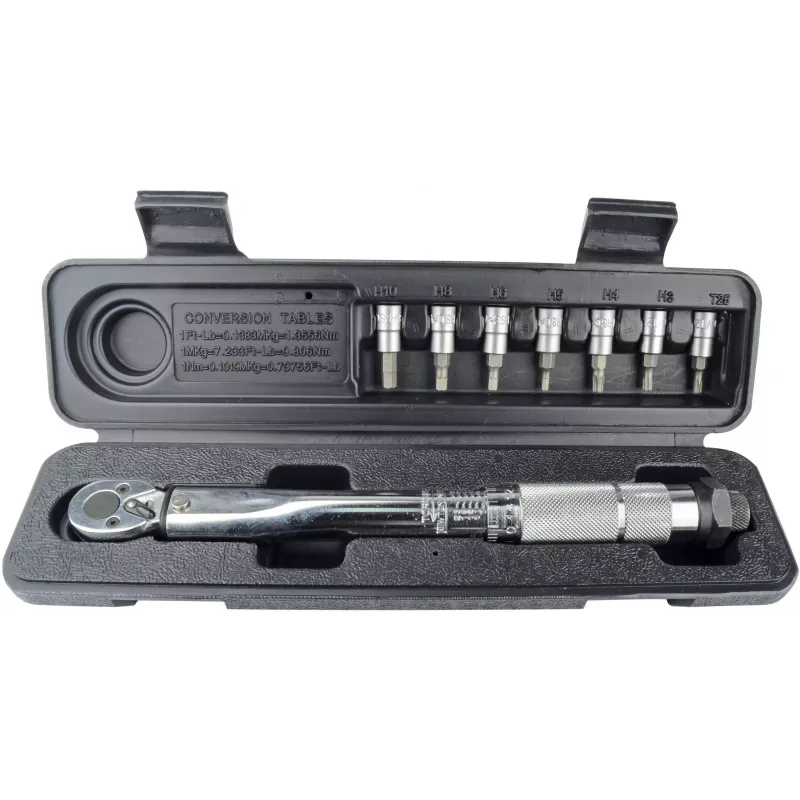

• Supplied in a robust blow-molded case for storage and transport

Specifications

• Torque range: 5 - 25 Nm
• Drive size: 1/4 inch (6.3 mm)
• Accuracy: ± 4%
• Measurement units: Newton Meter (Nm)
• Ratchet type: reversible ratchet head, 72 teeth
• Material: chrome vanadium steel
• Certification: DIN ISO 6789
• Number of pieces: 19
• Wrench length: approx. 280 mm

Tips

Always store the torque wrench at its lowest setting to maintain calibration. Use the included adapter and bits for hex, Torx, Phillips, and Pozidriv fasteners. Verify calibration periodically if used frequently.
