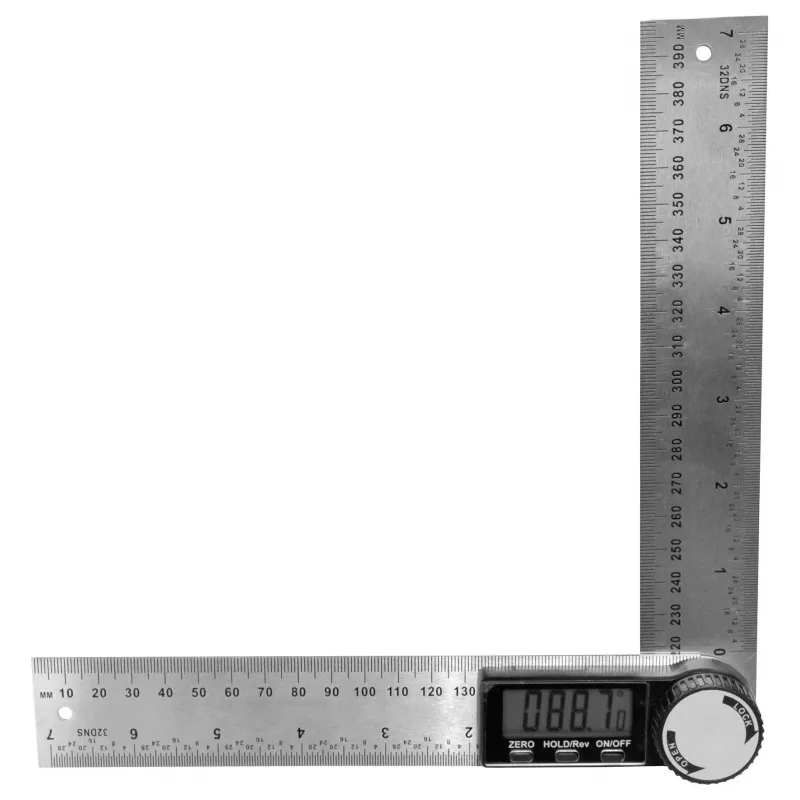

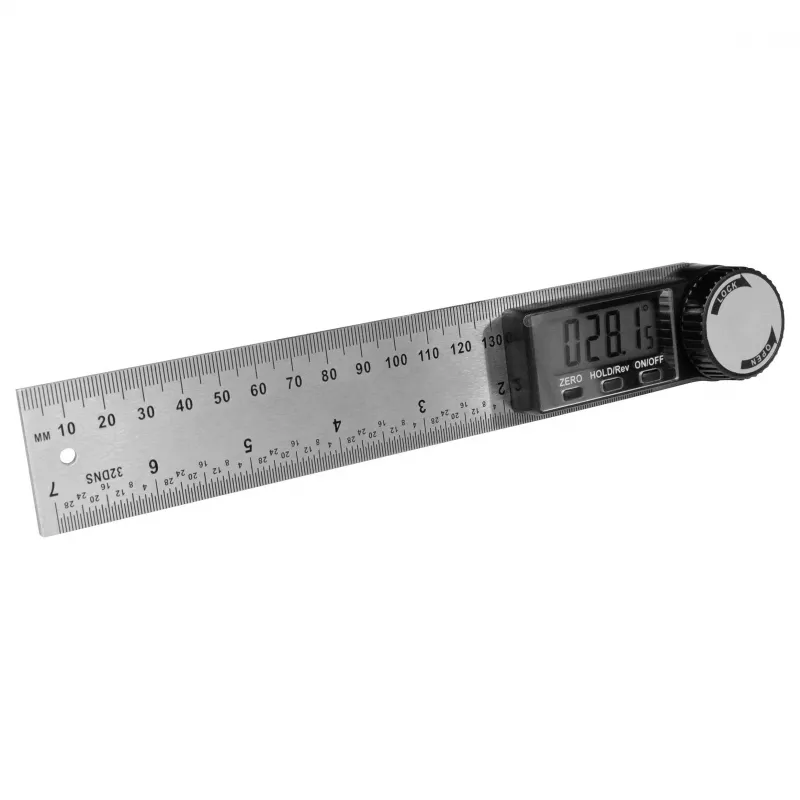

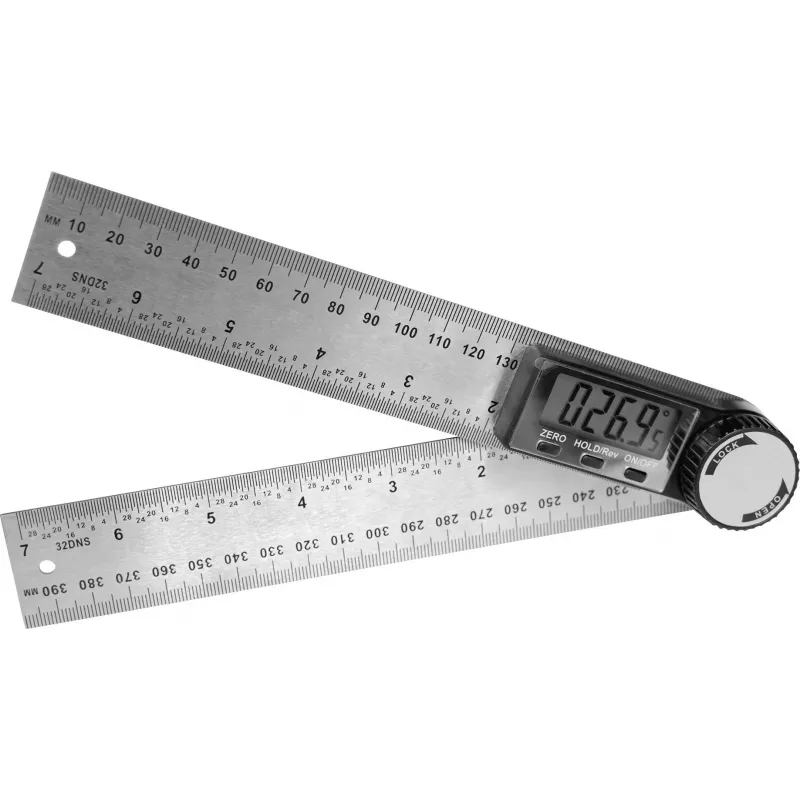

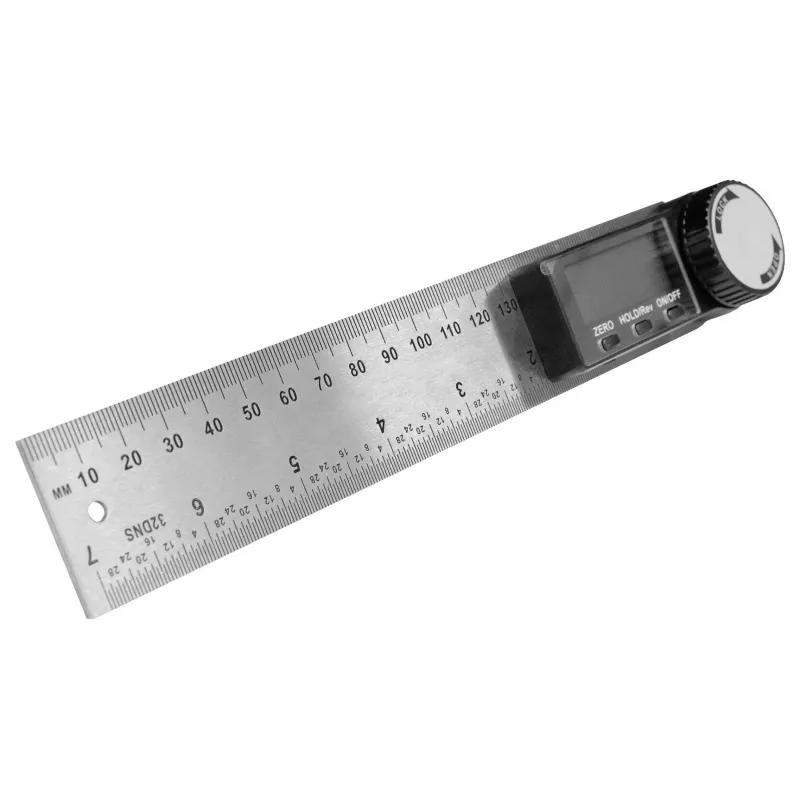

Brüder Mannesmann M81220 medidor de ángulos digital 200 x 200 mm 360°

Digital angle measurer with a 200 mm stainless steel ruler and a measurement range of 0 to 360°. The large LCD display shows readings with a resolution of 0.05° and an accuracy of ±0.3°.

Advantages

Zero setting at any position and hold function for convenient reading. Thumb screw locking mechanism keeps the angle fixed during transfer. Auto shut-off after 6 minutes preserves battery life.

Suitable for

• Measuring and transferring angles in carpentry and metalworking
• Checking bevel and mitre cuts
• Aligning machine parts and fixtures

Key specifications

• Measurement range: 0 - 360°
• Accuracy: ±0.3°
• Resolution: 0.05°
• Ruler length: 200 mm
• Ruler material: stainless steel
• Housing material: ABS plastic
• Display: large LCD
• Power source: 1x CR2032 3V lithium button cell
• Operating temperature: 0°C to +40°C
• Storage temperature: -20°C to +70°C
• Relative humidity: < 80%

Recommendations

Ideal for precise angle measurement and transfer in workshop and on-site applications.
