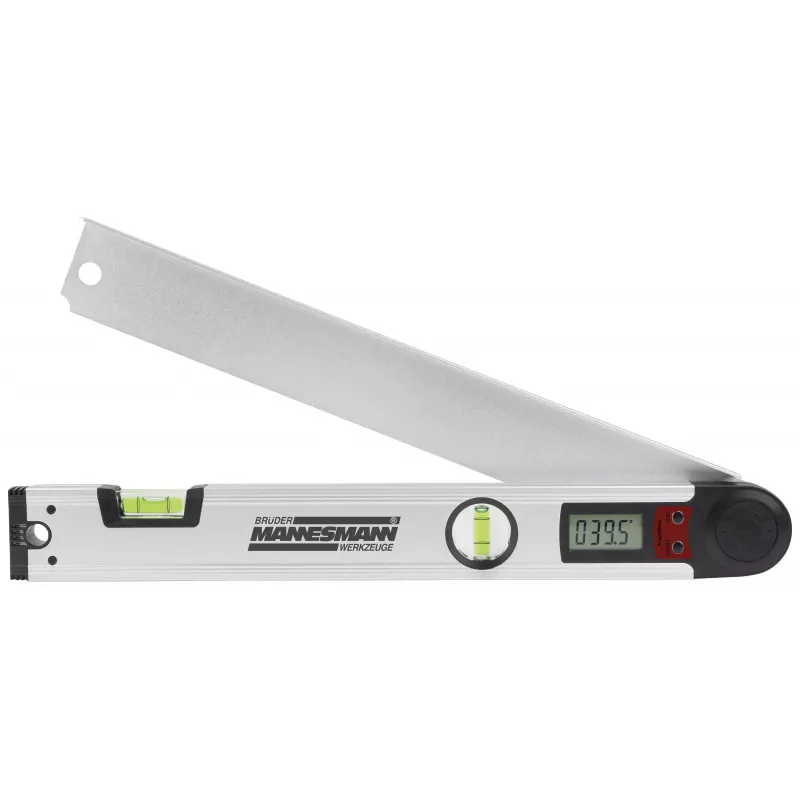

Brüder Mannesmann medidor de ángulos digital con nivel, 400 mm, LCD, 0-220°, resolución de 0,1°, aluminio (M81230)

Measure angles from 0 to 220° with ±0.5° accuracy and a 0.1° resolution on a large LCD. This 400 mm digital angle finder combines a foldable aluminum body with horizontal and vertical spirit levels for precise alignment in woodworking, construction, and DIY tasks.

Overview

The Brüder Mannesmann M81230 is a digital angle finder with a 400 mm measuring length. It features an LCD display, a locking screw to fix the angle, and a hold function to freeze readings. The tool is powered by a CR2032 battery and shuts off automatically after approximately 5 minutes to save power.

What stands out

• 0-220° measurement range with 0.1° resolution
• ±0.5° accuracy
• Integrated horizontal and vertical spirit levels
• Aluminum housing for durability
• Hold and zero functions
• Automatic shut-off after 5 minutes

Technical details

• Product type: Digital angle finder
• Measurement range: 0 - 220°
• Accuracy: ±0.5°
• Resolution: 0.1°
• Tool length: 400 mm
• Display: LCD
• Spirit levels: Horizontal and vertical
• Units: Degrees (°)
• Power source: 1x CR2032 3V battery
• Material: Aluminum
• Functions: Hold, zero
• Automatic shut-off: Yes (after approx. 5 minutes)
• Angle lock: Locking screw

Our verdict

A reliable and precise angle finder for professionals and hobbyists, offering a wide measuring range, dual spirit levels, and a robust aluminum build.
