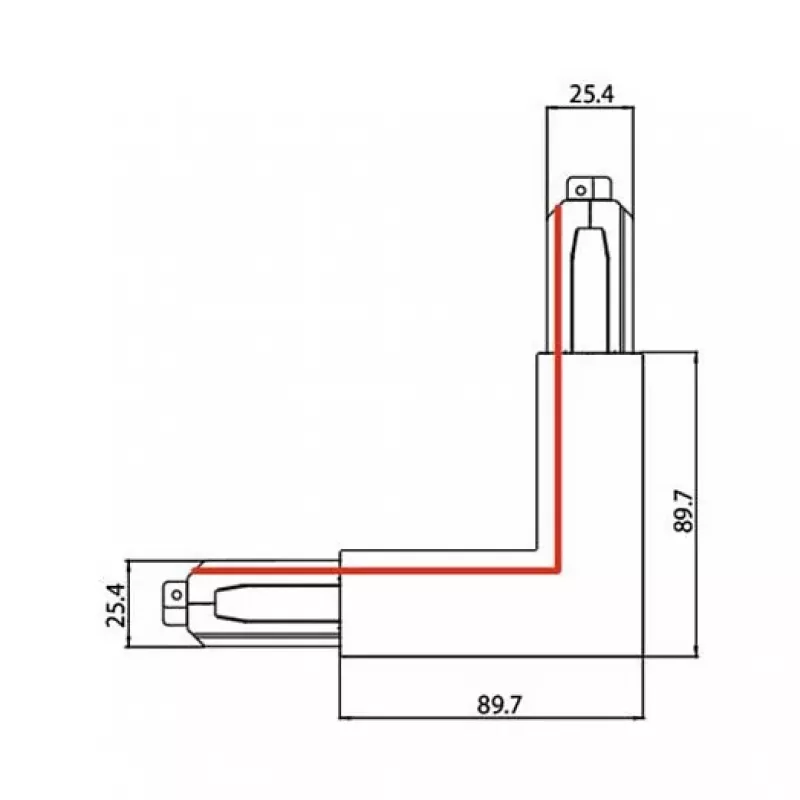

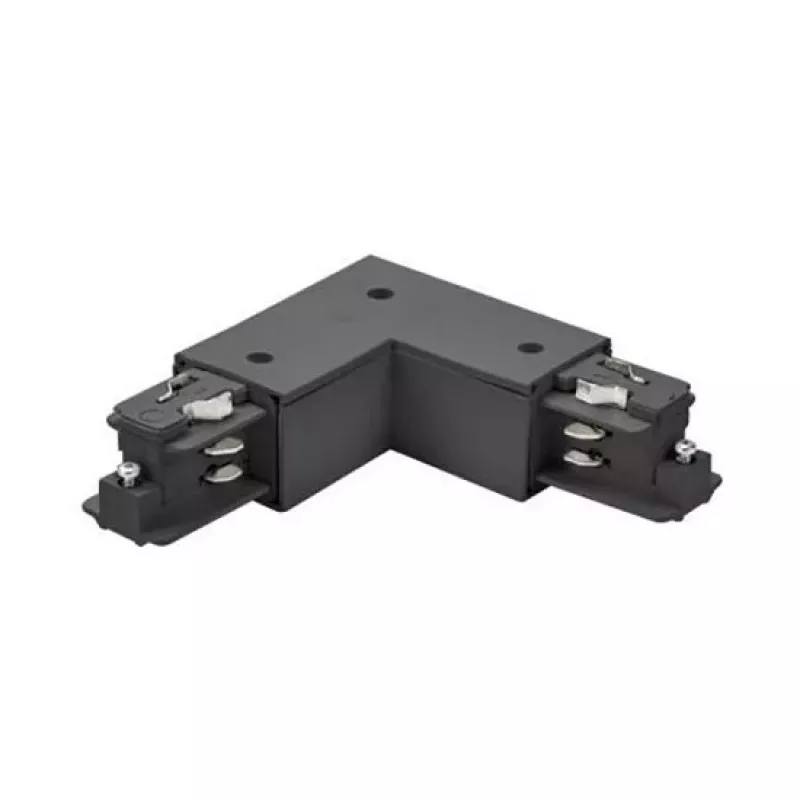

Brumberg 87126080 Conector angular de 90° para sistema de carril de 3 fases ONETRACK DALI, negro

The Brumberg 87126080 is a high-quality 90° corner connector designed for the ONETRACK DALI 3-phase track lighting system. It enables seamless electrical and mechanical connection of track sections at internal corners, maintaining the integrity of the DALI control bus. Crafted from durable aluminium and plastic in a sleek black finish (RAL 9005), this connector ensures reliable performance and a professional appearance.

Advantages

• Ensures continuous DALI control integration across track sections
• Robust construction with aluminium and plastic materials
• Easy click-in installation for quick setup
• Supports 3-phase power distribution with 5 conductors (3P+N+PE+DA+DA)
• Rated for 230V AC and up to 16A current

Suitable for

• Internal corner connections in Brumberg ONETRACK DALI track systems
• Commercial and residential lighting installations requiring DALI control
• Retail, office, and exhibition spaces with flexible track lighting

Key specifications

• Product Type: Lighting Track System Connector
• System Series: Brumberg ONETRACK DALI
• Connection Angle: 90°
• Installation Location: Internal Corner
• Phase Configuration: 3-Phase
• DALI Control Integration: Yes
• Number of Conductors: 5 (3P+N+PE+DA+DA)
• Color: Black (RAL 9005)
• Material: Aluminium, Plastic
• Voltage Rating: 230V AC
• Current Rating: Max. 16A
• Protection Class: IP20
• Mounting Type: Track-mounted, Click-in
• Compatibility: Brumberg ONETRACK DALI 3-Phase Track
• Operating Temperature Range: -20°C to +40°C
• Certifications: CE

Recommendations

For optimal performance, use only with Brumberg ONETRACK DALI track components. Ensure proper installation by a qualified electrician. This connector is designed for indoor use only.
