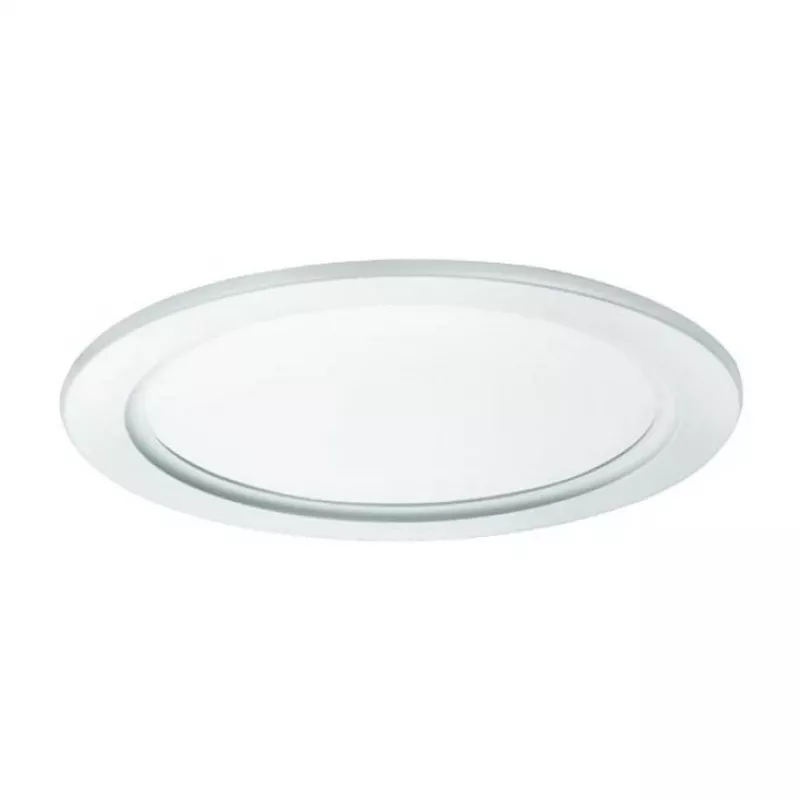

Brumberg 12217073 EB-Panel FLAT30 Round White 830 16W 24V panel LED de techo empotrable

The Brumberg 12217073 EB-Panel FLAT30 is a high-quality LED recessed ceiling panel designed for professional lighting applications. With a round shape and white housing, this panel delivers warm white light at 3000K with a luminous flux of 1600 lumens, making it ideal for ambient lighting in commercial and residential spaces. The panel operates at 24V DC and consumes only 16W, offering energy efficiency and long life.

Advantages

This LED panel features a slim design with an installation depth of just 30mm, allowing for easy integration into shallow ceilings. The 120° beam angle ensures wide light distribution, while the high color rendering index (CRI >80) guarantees natural color representation. Dimmable with an external driver, it provides flexibility in creating the desired ambiance. With a lifetime of 50,000 hours (L70/B50), it reduces maintenance costs.

Suitable for

• Office lighting
• Retail spaces
• Hotel lobbies
• Residential living areas
• Corridors and hallways

Key specifications

• Power consumption: 16W
• Operating voltage: 24V DC
• Luminous flux: 1600 lm
• Color temperature: 3000K (Warm White)
• Color rendering index (CRI): >80
• Beam angle: 120°
• Dimmable: Yes (external driver required)
• Lifetime: 50,000 h (L70/B50)
• Protection class: IP20
• Material: Aluminum, Plastic
• Outer diameter: 170 mm
• Cut-out diameter: 155 mm
• Installation depth: 30 mm
• Energy efficiency class: F
• Driver included: No (external 24V DC driver required)
• Operating temperature: -20 to +40 °C

Recommendations

For optimal performance, use with a compatible 24V DC constant voltage LED driver. Ensure proper ventilation and avoid installation in damp locations without additional protection.
