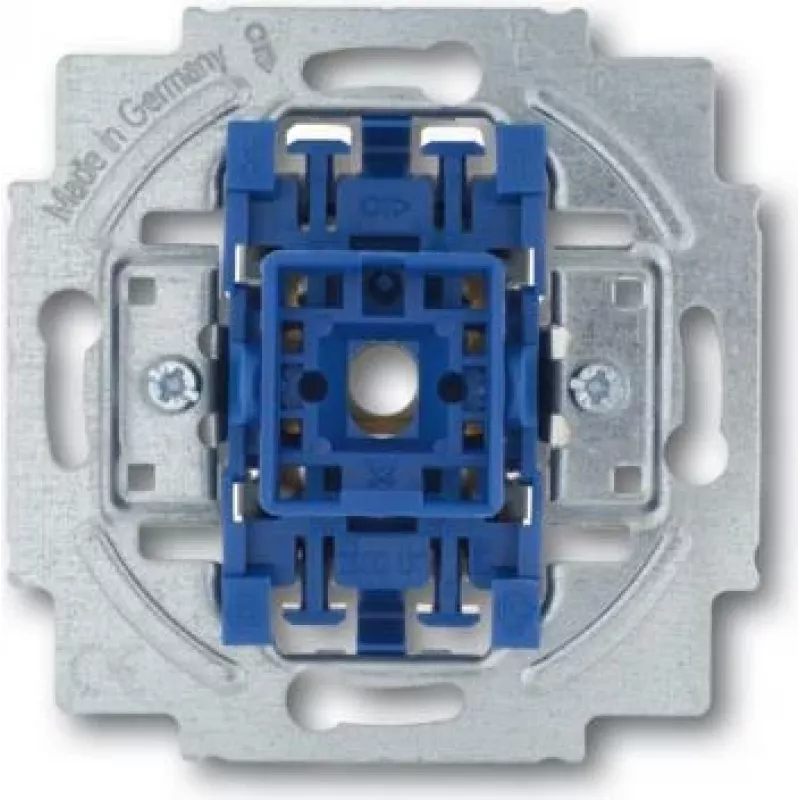

Busch-jaeger 2CKA001012A2042 azul

The Busch-Jaeger 2CKA001012A2042 is a blue and grey switch with 2 poles. It is rated for 250 V AC and 16 AX, and carries RoHS and CE certification.

Key features

• 2-pole switch
• Blue and grey colour
• RoHS and CE certified
• Can be illuminated with lamps 8350, 8352, 8353, 8337-1, 8345-1, and 8344-1 and LED inserts
• Suitable for switching sockets
• Mounting only in conjunction with standard UP device boxes according to DIN 49073, Part 1, or Busch-Jaeger art. no. 3040 UP box masonry, 3050 UP box hollow wall, or 3060 UP box concrete

Specifications

• Brand: Busch-Jaeger
• MPN: 2CKA001012A2042
• Product colour: Blue, Grey
• Number of poles: 2P
• Certification: RoHS, CE
• AC input voltage: 250 V
• Rated current: 16 AX
• Width: 71 mm
• Depth: 25 mm
• Height: 71 mm
• Module row: 1
