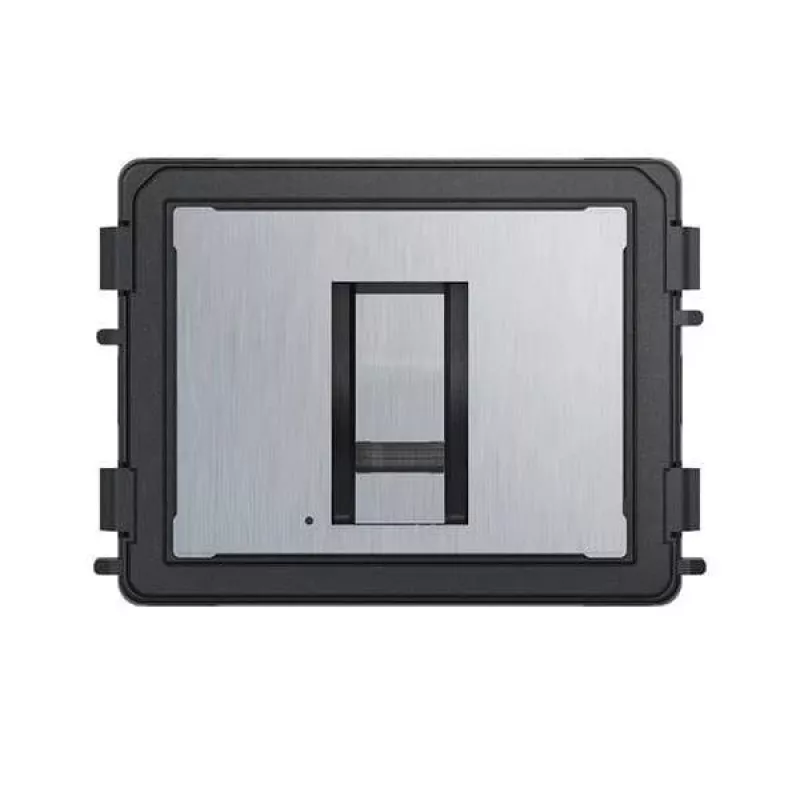

BUSCH-JAEGER 51381FP-A-03 módulo de huella dactilar para portero Busch-Welcome 2TMA200160A0040

Access control reaches a new level of security with the BUSCH-JAEGER 51381FP-A-03 Fingerprint Module, a biometric solution that stores up to 64 fingerprints for reliable identification at your entrance. Integrated into Busch-Welcome outdoor stations, this module uses an optical sensor to grant access only to authorized individuals.

Overview

The fingerprint module is a component of the Busch-Welcome door communication system, designed for seamless integration into compatible outdoor stations. It operates on 24 V DC from the system bus, with a standby current of approximately 100 mA and a maximum current of 200 mA. The module features an integrated LED for status indication and retains fingerprint data in non-volatile memory, ensuring security even during power outages.

What stands out

• Stores up to 64 fingerprints for multi-user access
• Optical fingerprint sensor for precise recognition
• Integrated LED status indication
• Non-volatile memory preserves data without power
• Designed for outdoor use with operating temperature from -25 °C to +55 °C

Technical details

• Product Type: Fingerprint Module
• System Compatibility: Busch-Welcome Door Communication System
• Mounting Type: Integrated into Busch-Welcome outdoor stations
• Sensor Technology: Optical Fingerprint Sensor
• Max. Fingerprints: 64
• Operating Voltage: 24 V DC (via system bus)
• Current Consumption (Standby): Approx. 100 mA
• Current Consumption (Max.): Approx. 200 mA
• Operating Temperature: -25 °C to +55 °C
• Storage Temperature: -40 °C to +70 °C
• Relative Humidity: 10% - 90% (non-condensing)
• Status Indication: Integrated LED (e.g., red/green)
• Programming Method: Via Busch-Welcome system or PC software
• Data Retention: Non-volatile memory
• Material: High-quality plastic
• Function: Secure access control via biometric identification

Our verdict

A robust biometric access solution for Busch-Welcome systems, offering reliable fingerprint recognition and durable outdoor performance.
