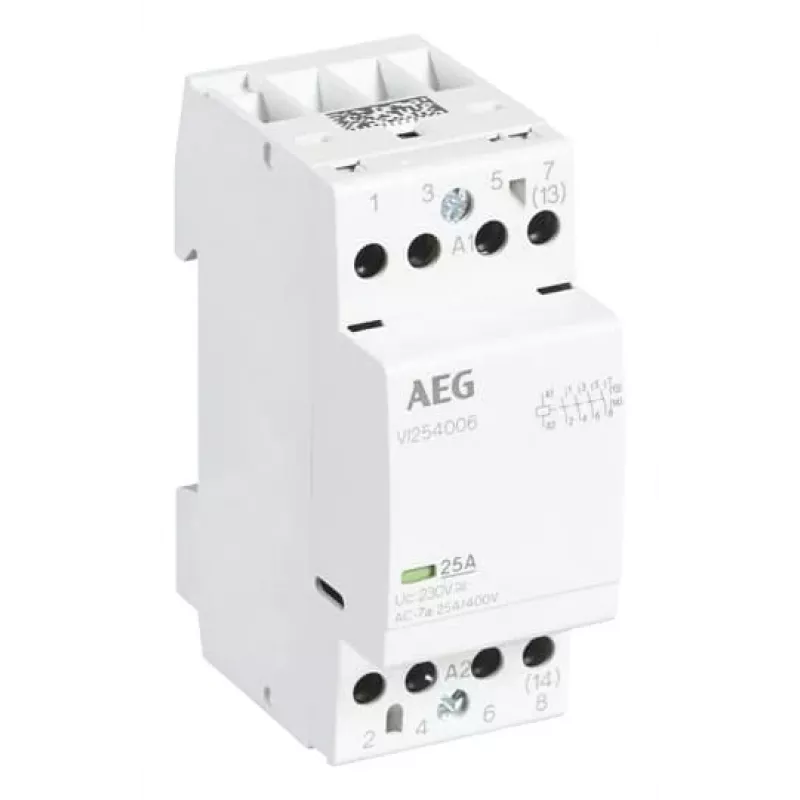

BUSCH-JAEGER AEG contactor de instalación VI254006230V 25A 4 NO 230V AC

The BUSCH-JAEGER AEG Installation Contactor VI254006230V is a high-quality 4-pole contactor designed for reliable switching of resistive and inductive loads in industrial and commercial installations. With a rated operational current of 25 A (AC-1) and a coil control voltage of 230 V AC, this contactor ensures efficient performance and long service life.

Advantages

Robust design with 4 normally open (NO) contacts, suitable for a wide range of applications. Compact modular width of 2 TE (36 mm) allows space-saving installation on DIN rail. High electrical durability of 100,000 cycles and mechanical durability of 1,000,000 cycles guarantee long-term reliability.

Suitable for

• Switching of lighting, heating, and motor loads in building automation
• Industrial control panels and distribution boards
• Commercial and residential electrical installations

Key specifications

• Rated operational current (AC-1): 25 A
• Coil control voltage: 230 V AC
• Contact configuration: 4 NO (Normally Open)
• Number of poles: 4
• Modular width: 2 TE (36 mm)
• Mounting type: DIN rail (EN 60715)
• Rated operational voltage (main contacts): 400 V AC
• Frequency: 50/60 Hz
• Power consumption (coil pull-in): 4.5 VA
• Power consumption (coil holding): 2.5 VA
• Terminal type: Screw terminals
• Degree of protection (device): IP40
• Degree of protection (terminals): IP20
• Ambient operating temperature: -25 to +55 °C

Recommendations

For optimal performance, ensure proper mounting on DIN rail and use appropriate cable cross-sections. This contactor is ideal for applications requiring reliable switching of loads up to 25 A.
