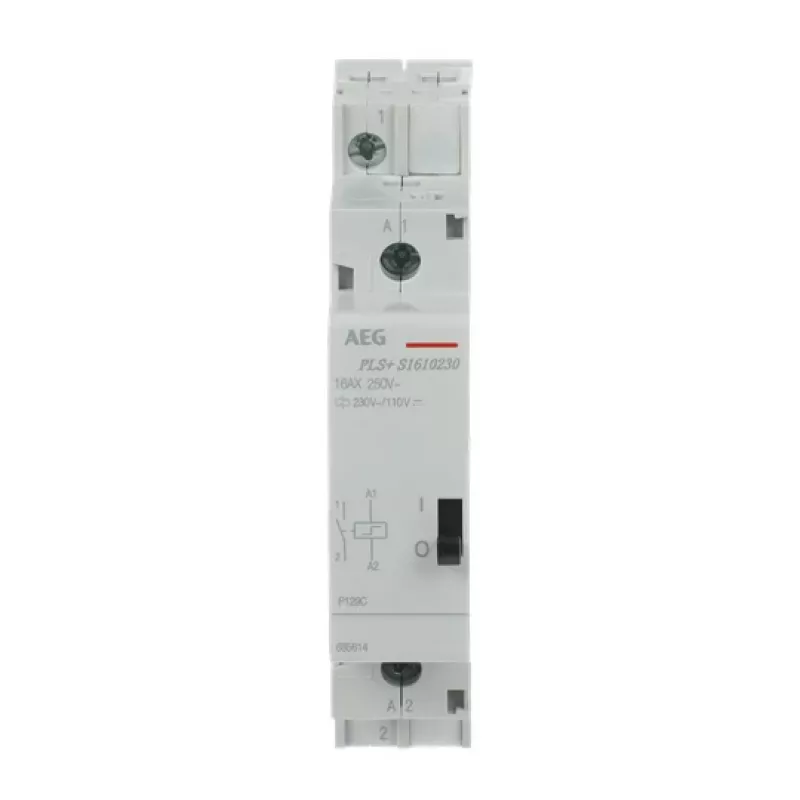

BUSCH-JAEGER AEG Relé de impulsos PLS+ S161023016A 230VAC/110VDC 1S685614 (2TAZ372000R2011)

The BUSCH-JAEGER AEG Impulse Relay PLS+ S161023016A is a high-quality latching relay designed for DIN rail mounting. It operates with a coil voltage of 230 V AC or 110 V DC and features a 1 Normally Open (NO) contact rated at 16 A. This relay is ideal for staircase lighting, impulse switching, and other latching applications in residential and commercial installations.

Advantages

Reliable latching function with low power consumption. Compact 1 TE (18 mm) design saves space on the DIN rail. Suitable for both AC and DC control voltages. High electrical and mechanical endurance ensures long service life.

Suitable for

• Staircase lighting control
• Impulse switching of lighting and loads
• Latching relay applications in building automation

Key specifications

• Product Type: Impulse Relay
• Series: PLS+
• Coil Voltage: 230 V AC / 110 V DC
• Contact Configuration: 1 Normally Open (NO)
• Rated Current: 16 A
• Number of Modules: 1 TE (18 mm)
• Mounting: DIN Rail
• Frequency: 50/60 Hz
• Electrical Endurance: 100,000 cycles
• Mechanical Endurance: 1,000,000 cycles
• Power Consumption (AC): 5.5 VA
• Power Consumption (DC): 2.5 W
• Degree of Protection: IP20
• Operating Temperature: -10°C to +50°C

Recommendations

For optimal performance, ensure the relay is installed in a dry environment within the specified temperature range. Use appropriate DIN rail accessories for secure mounting.
