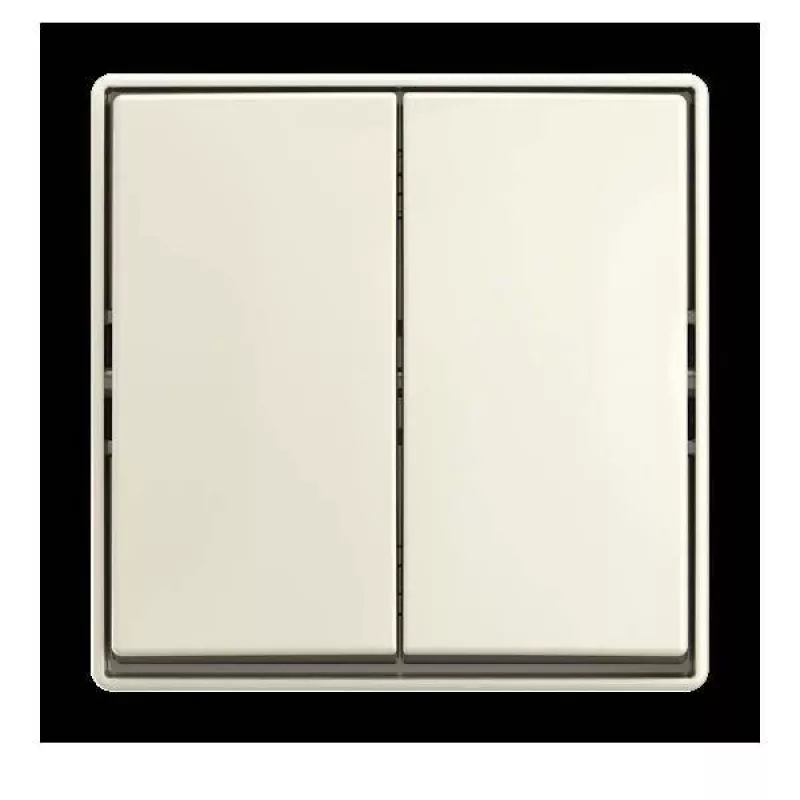

BUSCH-JAEGER interruptor basculante, de superficie, conmutador, 10 AX, 250 V AC, blanco alpino 2TKA00005524

With a 10 AX rated current at 250 V AC, this rocker switch handles demanding lighting and motor loads in residential and commercial settings.

Overview

The BUSCH-JAEGER 2601/5 J-522 is a surface-mounted changeover switch from the Busch-Duro 2000 AP series. Its thermoplastic body in Alpine White combines durability with a clean, classic look. Screw terminals ensure secure, maintenance-free connections.

What stands out

• Changeover switching function for two-way lighting control
• Surface mounting for easy installation on walls or panels
• Halogen-free thermoplastic construction
• Screw terminals for reliable wiring
• Single rocker with no illumination

Technical details

• Product Type: Rocker Switch
• Mounting Type: Surface-mounted (AP)
• Switching Function: Changeover Switch
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Protection Class: IP44
• Material: Thermoplastic
• Color: Alpine White
• Connection Type: Screw Terminals
• Number of Rockers: 1
• Illumination: No
• Halogen-free: Yes
• Series: Busch-Duro 2000 AP
• Number of Terminals: 3
• Operating Temperature: -5 °C to +40 °C
• Impact Resistance: IK05

Our verdict

A robust, halogen-free changeover switch for surface mounting, ideal for renovation and industrial applications where in-wall wiring is impractical.
