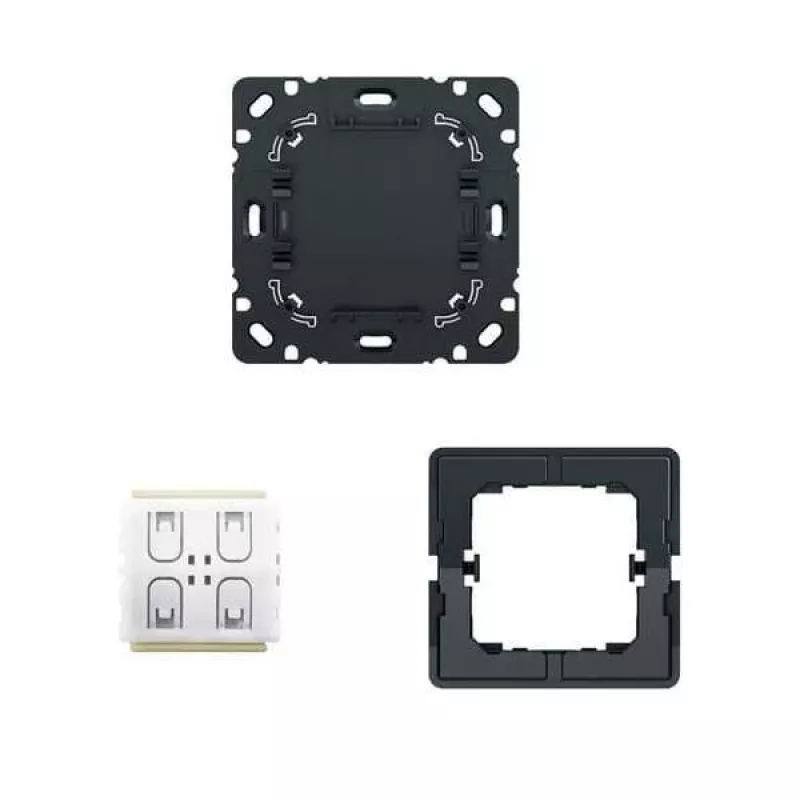

Busch-Jaeger mecanismo de interruptor Smart inalámbrico para free@home 2CKA006710A0046

For electricians and homeowners modernizing a flush-mounted installation, this insert provides wireless switching of lighting loads within the Busch-Jaeger free@home system. It mounts in a standard wall box and is controlled via the free@home app, system devices, or conventional push-buttons.

Key specifications

• Product type: Wireless Smart Switch Insert
• System compatibility: Busch-Jaeger free@home
• Wireless protocol: free@home RF (2.4 GHz)
• Installation type: Flush-mounted
• Operating voltage: 230 V AC, 50/60 Hz
• Max. switching capacity (resistive load): 2300 W
• Max. switching capacity (incandescent/HV halogen): 2200 W
• Max. switching capacity (LED lamps): 200 W
• Number of channels: 1
• Control options: free@home app, free@home system devices, conventional push-buttons
• Operating temperature: 5 °C to 45 °C
• Mounting depth: 32 mm
• Features: Scene control, time programs, remote access
• Required accessory: Busch-Jaeger free@home System Access Point

Why choose it

This insert integrates seamlessly into the free@home ecosystem, enabling smart control of lighting without replacing existing wiring. Its support for conventional push-buttons allows manual operation alongside digital control.

Ideal use cases

• Retrofitting existing flush-mounted switches for smart home control
• Controlling LED, incandescent, or halogen lighting loads up to specified wattages
• Creating scenes and schedules via the free@home app

Good to know

The insert requires a Busch-Jaeger free@home System Access Point for full functionality. It is designed for indoor use and fits standard flush-mounted boxes.
