BUSCH-JAEGER módulo Keystone HDMI con cable pigtail, 4K UHD, blanco alpino (2CKA000230A0478)

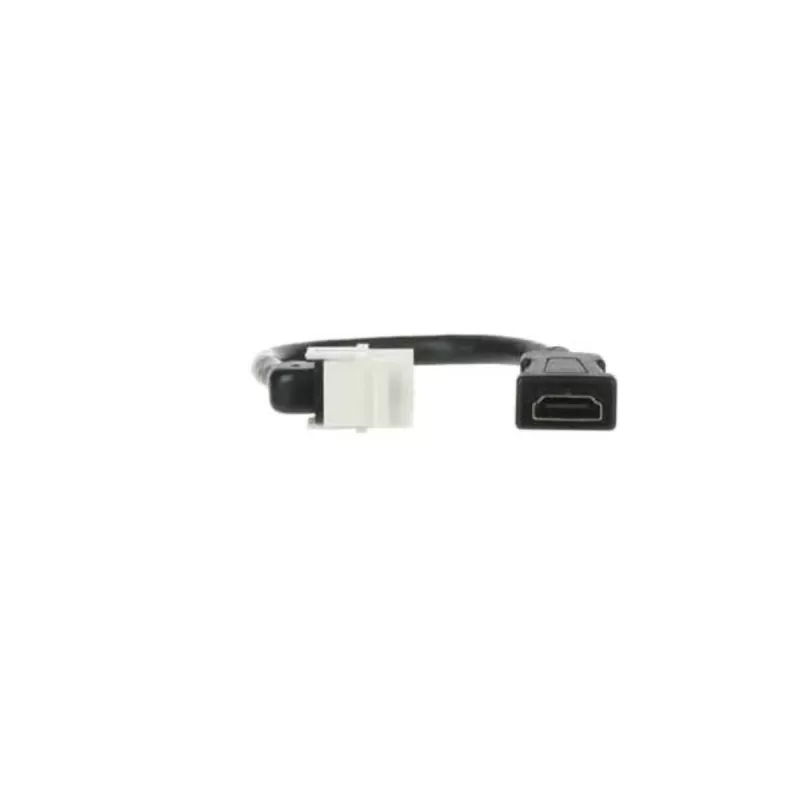

This HDMI Keystone Module from BUSCH-JAEGER integrates a 150 mm pigtail cable terminated with an HDMI Type A female connector, providing a clean snap-in solution for multimedia wall plates. Unlike fixed couplers, the short pigtail eases installation in tight spaces while maintaining High Speed HDMI performance.

Highlights

• HDMI Type A female connector on module front and pigtail end
• Supports 4K UHD (3840 x 2160) resolution and 3D
• Audio Return Channel (ARC), CEC, and HDMI Ethernet Channel (HEC) supported
• Snap-in Keystone design for Busch-Jaeger central plates with Keystone cutout
• Alpine white finish with high-quality plastic and metal connectors

In daily use

The integrated pigtail cable simplifies routing behind the wall plate, reducing strain on the HDMI connection. Ideal for multimedia installations where a flush, professional finish is required.

Full specifications

• Product type: HDMI Keystone Module
• Connector type (module front): HDMI Type A Female
• Connector type (pigtail end): HDMI Type A Female
• Cable length: 150 mm
• HDMI standard: High Speed HDMI
• Maximum resolution: 4K UHD (3840 x 2160)
• 3D support: Yes
• HDCP compliance: Yes
• Mounting standard: Keystone Module
• Colour: Alpine White
• Material: High-quality plastic, metal connectors
• Application: Multimedia installations, wall plate integration
• Compatibility: Busch-Jaeger central plates with Keystone cutout
• Installation: Snap-in design

Final note

A reliable HDMI Keystone module with pigtail for clean, high-performance AV connections in Busch-Jaeger installations.
