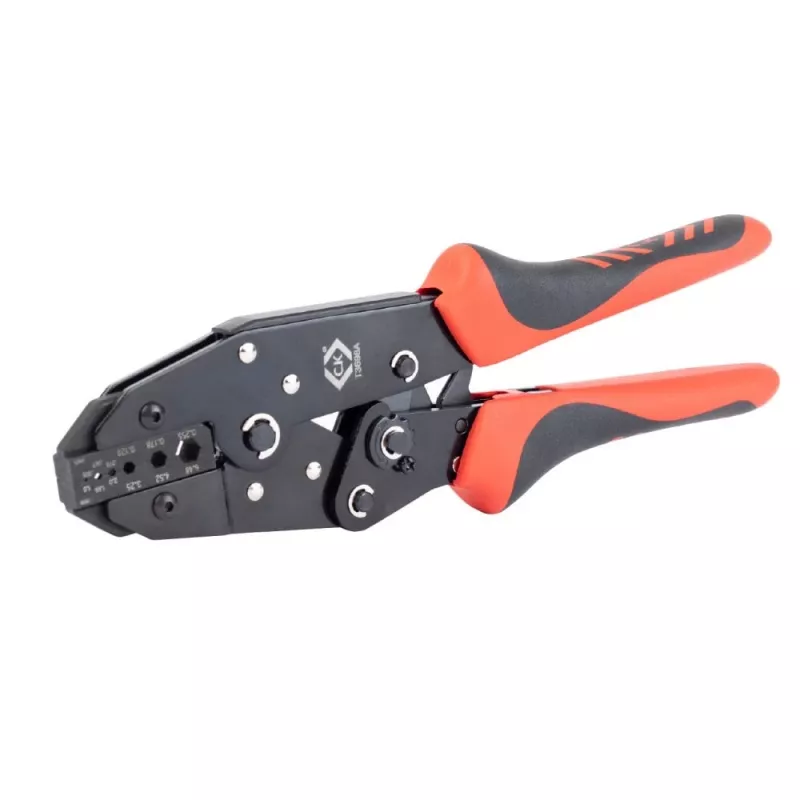

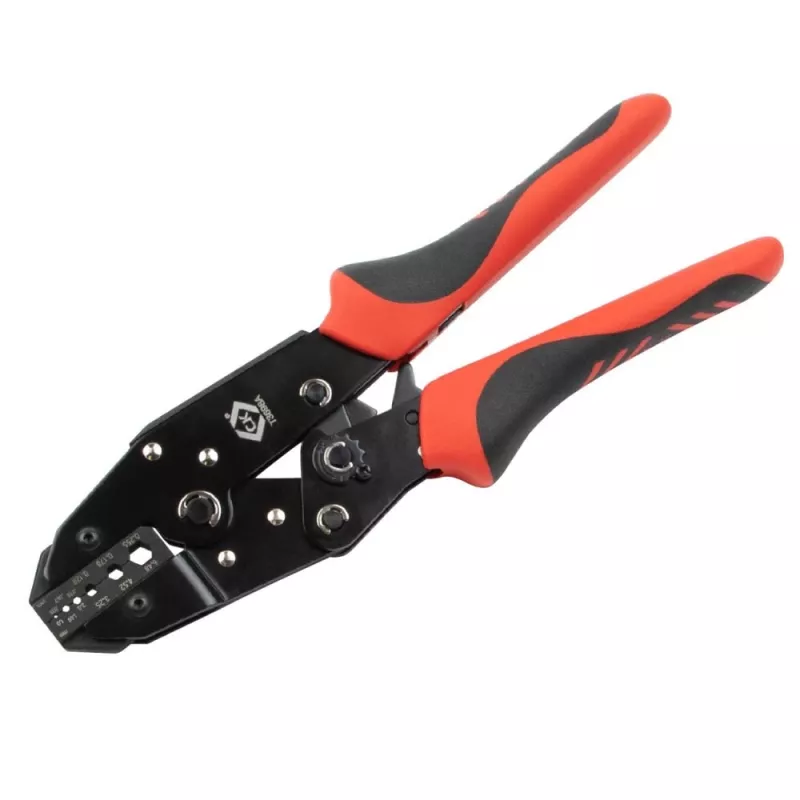

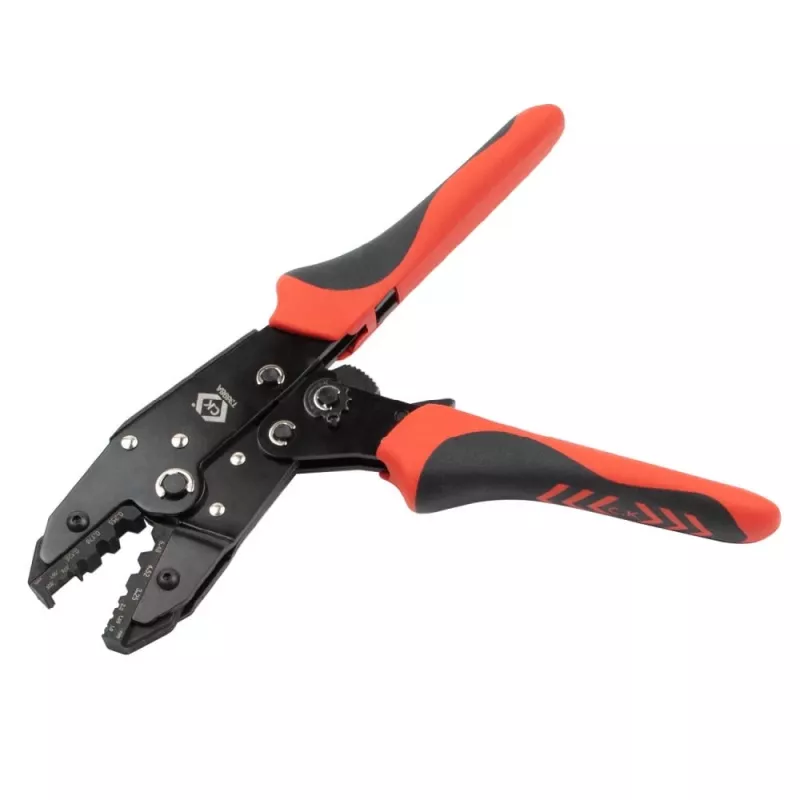

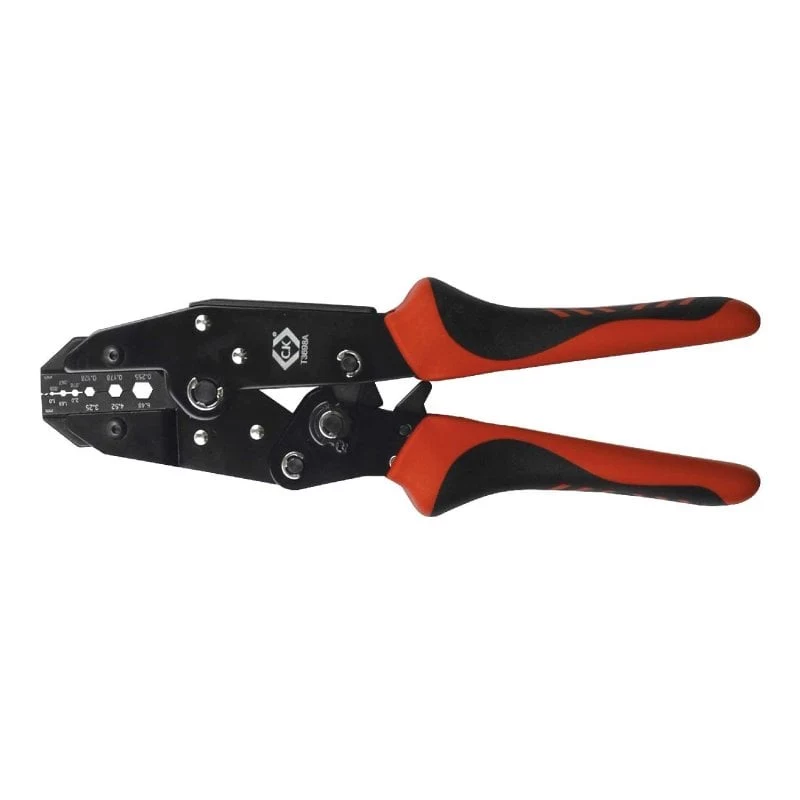

C.K Tools T3698A Alicates de crimpar con trinquete para conectores coaxiales BNC y TNC

Terminating BNC and TNC coaxial connectors by hand is slow, inconsistent, and often results in poor connections. The C.K Tools T3698A ratchet crimping pliers solve this by delivering precise, repeatable hexagonal crimps on common coaxial cables, ensuring professional-grade terminations every time.

Who is it for

Professional installers, network technicians, and serious DIYers who regularly work with coaxial cabling and need a reliable, durable crimping tool for BNC and TNC connectors.

Main features

• Ratchet mechanism with quick release ensures full crimp cycle and consistent results.
• Fixed hexagonal dies for BNC and TNC connectors on RG58, RG59, RG62, RG174, and RG179 cables.
• High-grade carbon steel body, hardened and tempered for long service life.
• Heavy duty PVC handles provide a comfortable, secure grip.
• Overall length of 230 mm offers good leverage for effortless crimping.

Specifications

• Tool Type: Crimping Pliers
• Connector Compatibility: BNC, TNC
• Cable Compatibility: RG58, RG59, RG62, RG174, RG179
• Crimp Profile: Hexagonal
• Crimp Sizes: 1.72 mm, 2.5 mm, 5.41 mm, 6.48 mm, 8.23 mm
• Ratchet Mechanism: Yes
• Quick Release Function: Yes
• Body Material: High-grade Carbon Steel
• Handle Material: Heavy Duty PVC
• Finish: Hardened and Tempered
• Overall Length: 230 mm
• Die Type: Fixed Dies
• Application: Professional Coaxial Cable Termination

Tips

Always use the correct die size for your connector and cable combination. Test the crimp by gently pulling on the connector after crimping; a properly crimped connection should not move.
