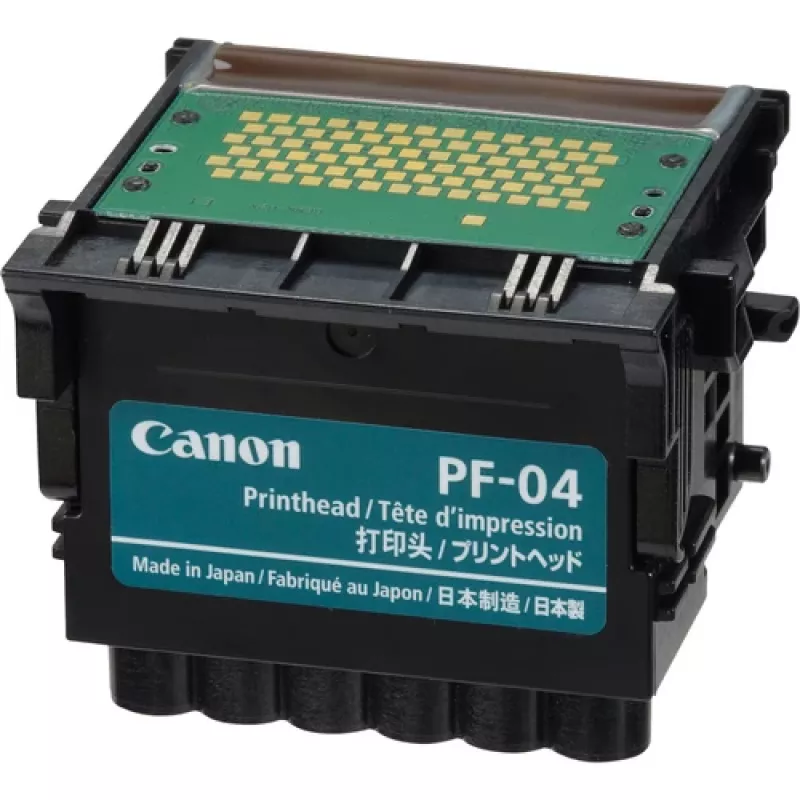

Cabezal de impresión Canon PF-04, inyección de tinta

The Canon PF-04 print head delivers high-speed, high-precision ink placement designed for advanced image production. With a total of 15,360 nozzles and 4-picoliter droplet size, it achieves consistent output at 2400 x 1200 dpi, reproducing fine lines down to 0.02 mm with positional accuracy of ±0.10%.

Advantages

The PF-04 features a redesigned nozzle shape that reduces satellite ink and mist, resulting in cleaner lines and sharper text. Its high-density nozzle array enables faster printing without sacrificing detail, producing reliable, high-quality images across a range of print jobs.

Key specifications

• Print head model: PF-04
• Nozzles: 15,360 total
• Droplet size: 4 picoliters
• Maximum resolution: 2400 x 1200 dpi
• Minimum line width: 0.02 mm
• Positional accuracy: ±0.10%

How to use

Install the PF-04 print head according to the printer manufacturer's instructions, ensuring proper alignment and secure electrical connections. Use compatible inks and perform any recommended print-head conditioning or cleaning cycles before production runs. Verify alignment and print a test pattern to confirm resolution and line accuracy.

Recommendations

For best results, operate the print head with inks and maintenance routines specified by the printer manufacturer, perform regular nozzle checks, and print test patterns to maintain consistent 2400 x 1200 dpi quality.
