Cable adaptador Axagon ADS-1PSN USB-A 2.0 - serie RS-232 DB9-M Prolific 1,5 m

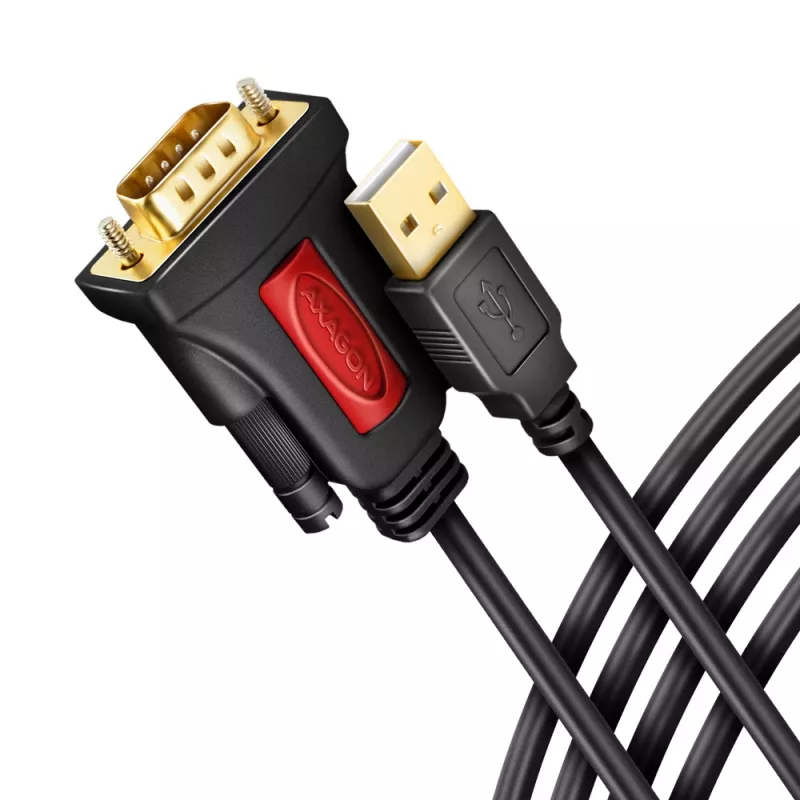

The AXAGON ADS-1PSN active USB converter expands a computer with a standard RS-232 serial port using an original Prolific PL2303GT chip. The adapter has a fixed 1.5 m USB-A cable with gold-plated connectors and a durable, double-shielded body suitable for desktop and laptop use as well as industrial environments. It supports plug-and-play operation and powers from the USB bus, allowing connection of barcode readers, receipt printers, scanners, microcontroller programmers, CNC machines, modems and other RS-232 devices.

Advantages

Built with an original Prolific chipset and gold-plated contacts for reliable signal transmission and long life. The adapter’s rugged housing, double shielding and 1.5 m fixed cable provide stable operation in both consumer and industrial settings. Bus-powered design removes the need for an external power supply and wide OS support ensures compatibility with Windows, macOS, Linux and many Android versions.

Key specifications

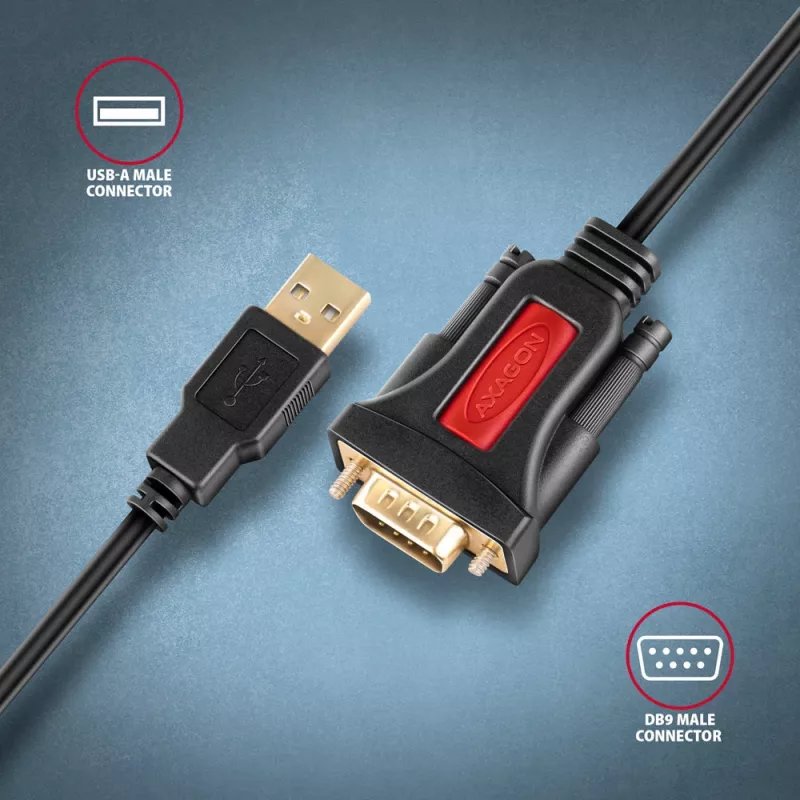

• Input: USB 2.0 (480 Mbps), backward compatible with USB 1.1; fixed USB type A male connector on 1.5 m cable.
• Output: 1× RS-232 serial port with DB9 male connector integrated in adapter body.
• Data rate: adjustable from 75 bit/s to 1000 kbit/s.
• UART compatibility: 16C950 (compatible with 16C550, 16C650, 16C750, 16C850).
• FIFO buffer: send 768 B, receive 256 B; adjustable receive (1–14 B) and send (1–16 B) thresholds.
• Flow control: Xon/Xoff, hardware or none; adjustable word length 4–8 bits; parity: even, odd, none, mark, space; stop bits: 1, 1.5, 2.
• COM port range: COM1–COM256; Power Management support; USB bus powered (no external power required).

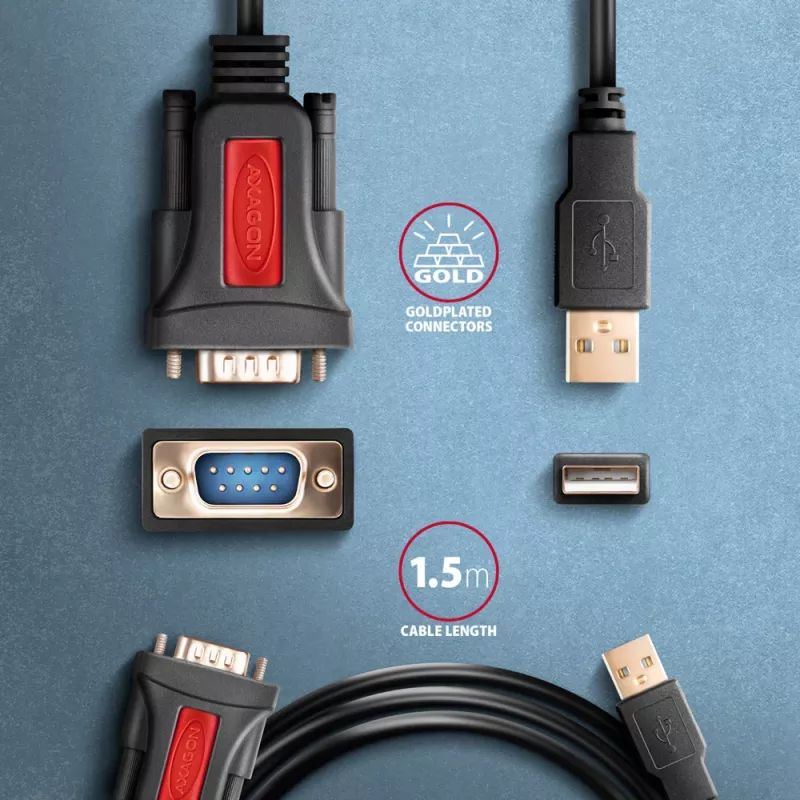

• Connector plating: gold-plated connectors and contacts; outer cable diameter 5 mm; double shielding.

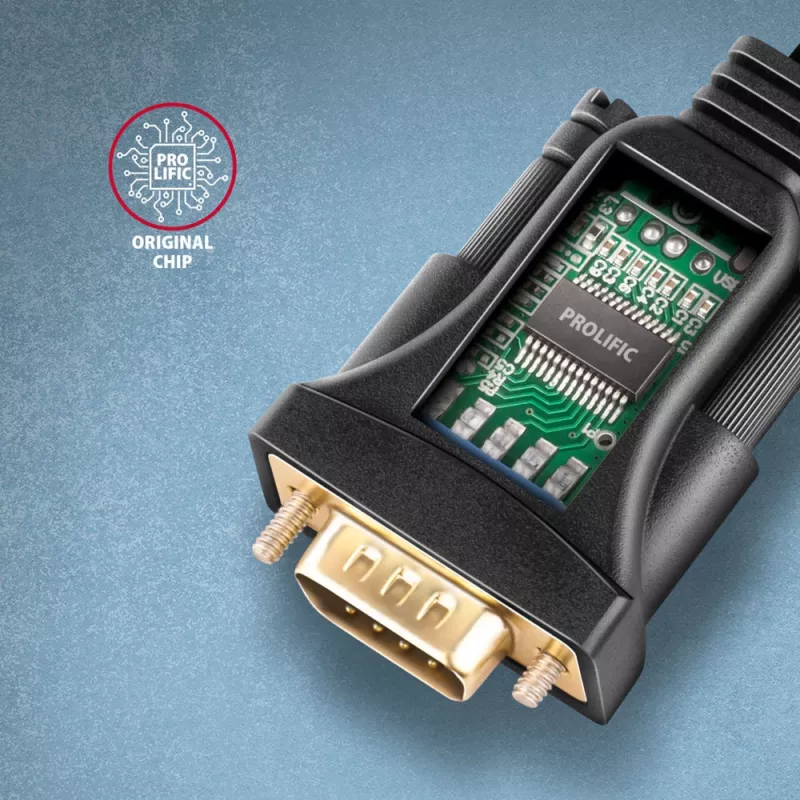

• Chipset: original Prolific PL2303GT with integrated serial line driver.
• Dimensions and weight: adapter body 35 × 56 × 17 mm; cable length 1.5 m; weight 83 g (including cable).
• Supported OS: Windows XP and later (including Server editions), macOS X 10.4.x and later, Linux kernel 2.6.x and later, most Android versions. Drivers are included in supported systems and install automatically.

How to use

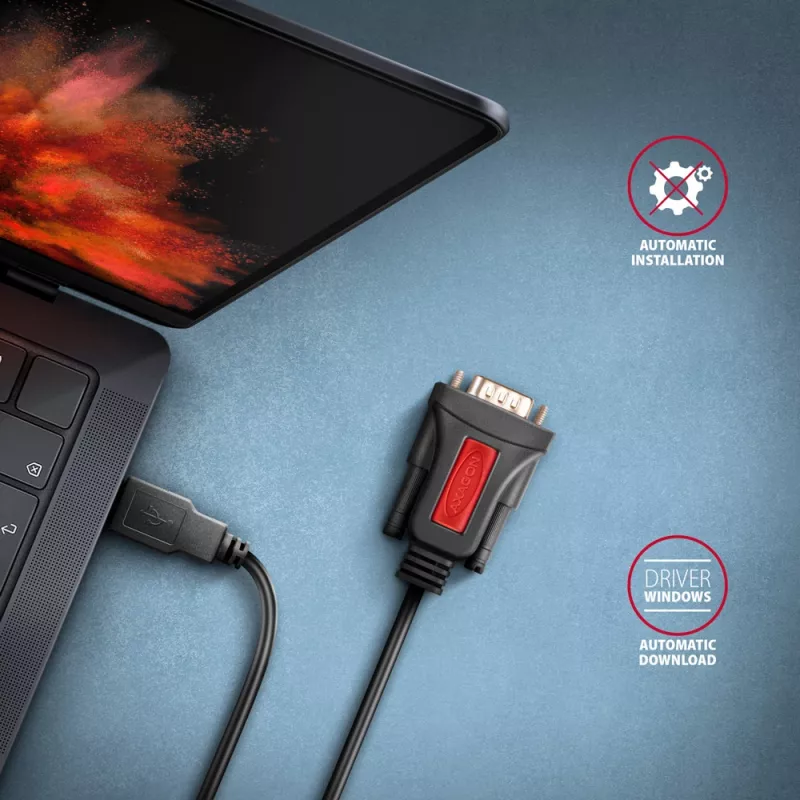

Connect the fixed USB-A cable to a free USB port on your computer. Plug the device requiring an RS-232 interface into the DB9 male connector on the adapter. The adapter is bus-powered and does not require an external power supply. Install or let the operating system automatically install the appropriate driver if prompted, then select the assigned COM port in your application or device configuration and adjust baud rate and serial parameters as needed.

Recommendations

Use the AXAGON ADS-1PSN to connect legacy RS-232 equipment—such as barcode scanners, cash register printers, CNC controllers and modems—to modern computers. For stable communication, ensure correct COM port and serial settings (baud rate, parity, data bits and flow control) match the connected device.
