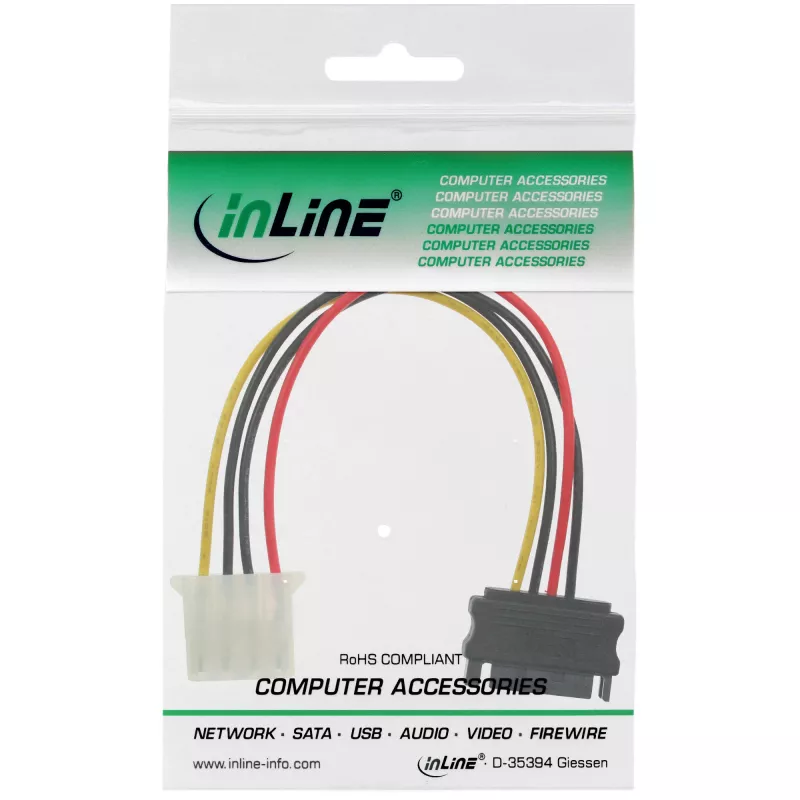

Cable adaptador de alimentación SATA 15 polos conector hembra / 4 polos conector macho 0,30m InLine 29669A

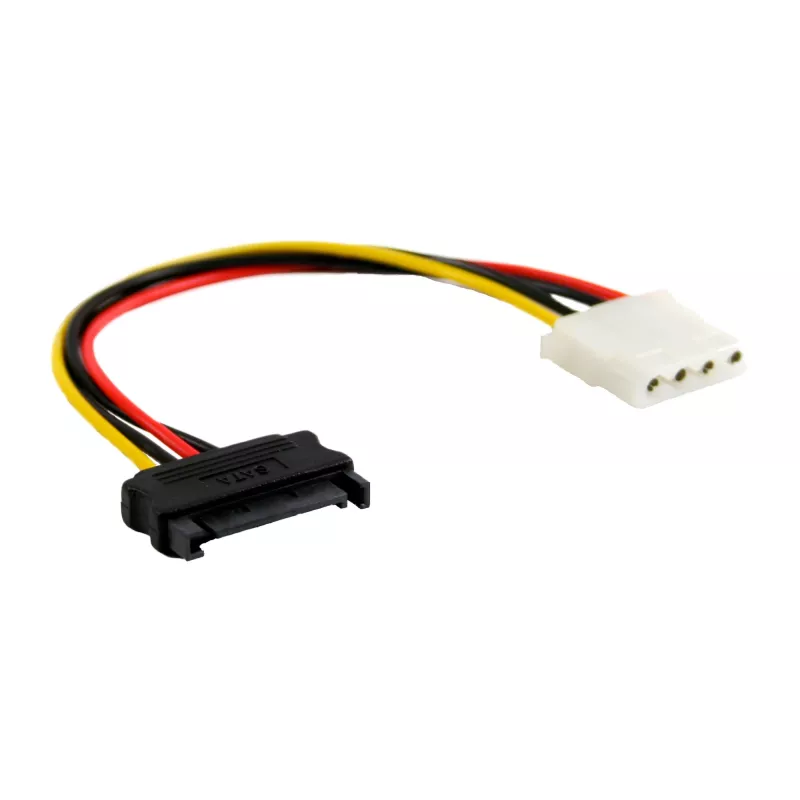

The InLine SATA Power Adapter Cable (15-pin female to 4-pin male) provides a 0.30 m connection for supplying power from a SATA power supply to devices that use a 4-pin Molex connector or vice versa. Designed to meet SATA I cable type requirements, this adapter is suitable for integrating older peripherals with modern power supplies or extending internal PC power leads.

Advantages

This 15-pin female to 4-pin male adapter offers a compact 0.3 m length for neat internal cabling and straightforward compatibility between SATA power sources and Molex-powered drives. The cable follows SATA I specifications and delivers stable power transfer for typical internal PC devices without requiring additional tools or modification.

Suitable for

• Connecting older IDE/PATA drives or peripherals with 4-pin Molex power to SATA power supplies
• Extending internal power leads inside desktop PCs
• Upgrading or repairing internal PC power connections when original cables are missing

Key specifications

• Cable type: SATA I
• Connector A: 15‑pin SATA (female)
• Connector B: 4‑pin Molex (male)
• Cable length: 0.3 m
• Brand: InLine
• Manufacturer part number (MPN): 29669A
• EAN: 4043718266081
• Product colour: Multicolour

How to use

Power off and unplug the PC before installing the cable. Insert the 15-pin SATA power connector into the SATA power output from the power supply and connect the 4-pin Molex male connector to the target device’s female Molex power socket. Ensure the connectors align correctly and seat fully to avoid loose contact. After connection, power on the system and verify the device receives power.

Recommendations

Use this adapter only for internal PC power connections. Avoid forcing connectors or using the cable in locations with high heat or moisture. If a device does not power on after connection, recheck seating and compatibility; do not attempt to modify the cable.
