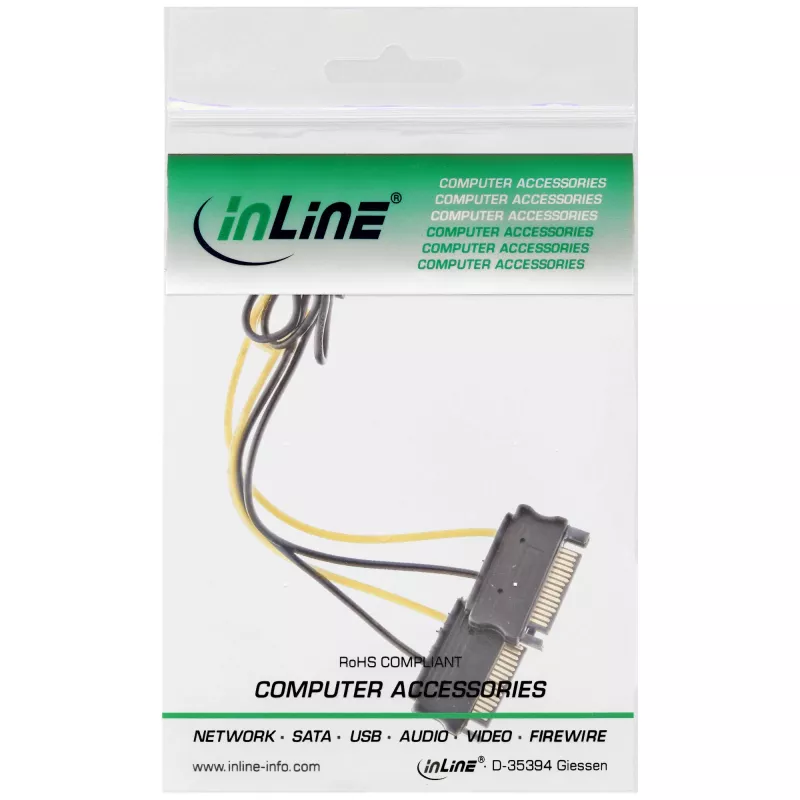

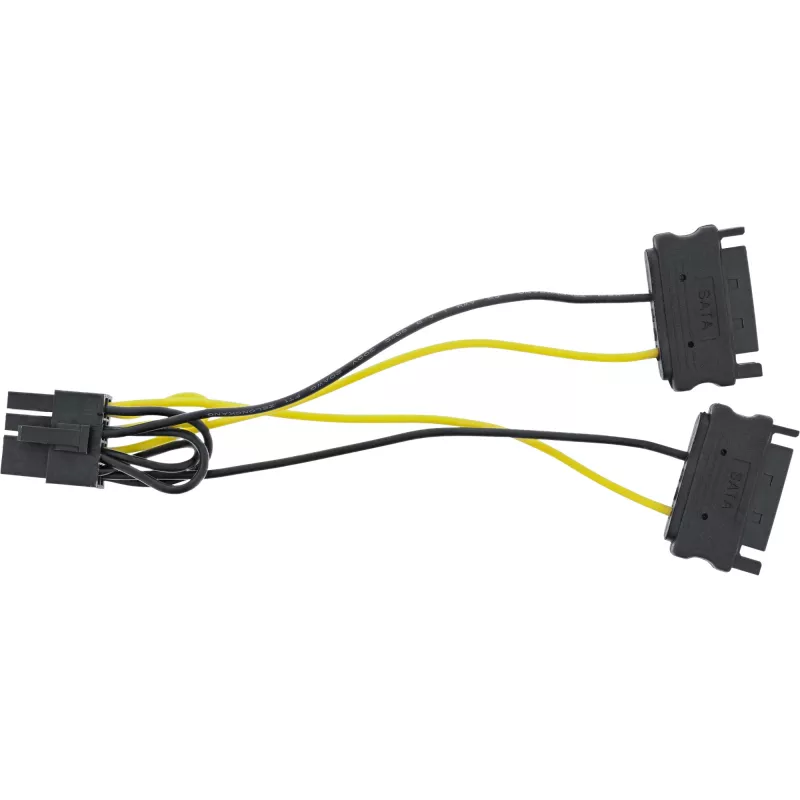

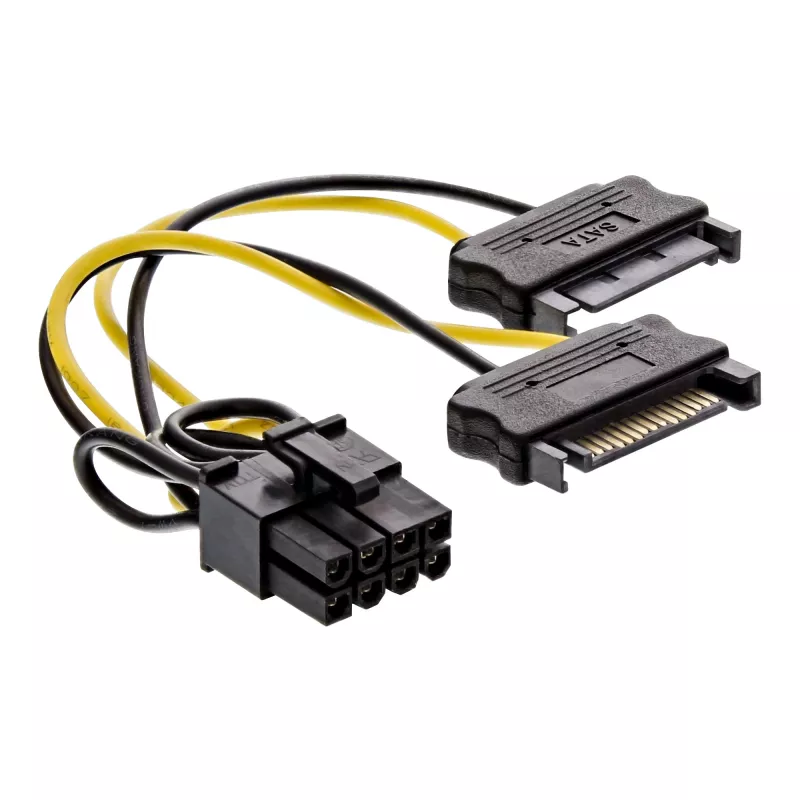

Cable adaptador de corriente InLine, 2 conectores macho SATA / conector macho PCI-Express de 8 pines, 0,15 m

This InLine power adaptor cable connects two SATA power outputs to a single 8-pin PCI-Express power input. The cable is 0.15 m long, RoHS compliant and designed to provide reliable power delivery when a PSU lacks a native PCIe connector. It is suitable for connecting SATA power lines from a power supply or adapter to PCIe devices that require an 8-pin power plug.

Advantages

The short 0.15 m length reduces clutter inside the case while keeping a stable power path. RoHS compliance ensures the cable meets environmental and safety material standards. The 2x SATA to 8-pin PCI-Express configuration allows use of available SATA power connectors to feed a PCIe device without modifying components.

Suitable for

• Feeding an 8-pin PCIe power input from two available SATA power connectors
• Temporary or supplemental power for graphics cards or PCIe expansion cards
• PC builds where the PSU lacks a dedicated 8-pin PCIe cable

Key specifications

• Connectors: 2 x SATA (male) to 1 x 8-pin PCI-Express (male)
• Length: 0.15 m
• Compliance: RoHS
• Brand: InLine, MPN: 26628D, EAN: 4043718250097
• Colour: Multicolour

How to use

Power off the system and unplug the PSU before installation. Plug the two SATA male connectors into available SATA power sockets from the power supply or a compatible adapter, then insert the 8-pin PCI-Express male plug into the device's PCIe power receptacle. Ensure connectors are fully seated and cable routing does not obstruct fans or other components. After installation, reconnect power and verify device operation.

Recommendations

Do not use this cable as a permanent substitute if the power requirements of the PCIe device exceed the combined safe current rating of the SATA power lines; check the device's power specifications and the PSU's capacity. Avoid using damaged or loose connectors and do not force connectors into incompatible sockets.
