Cable adaptador de corriente para placa base InLine conector hembra 20 pines / conector macho 24 pines EPS 0,16 m

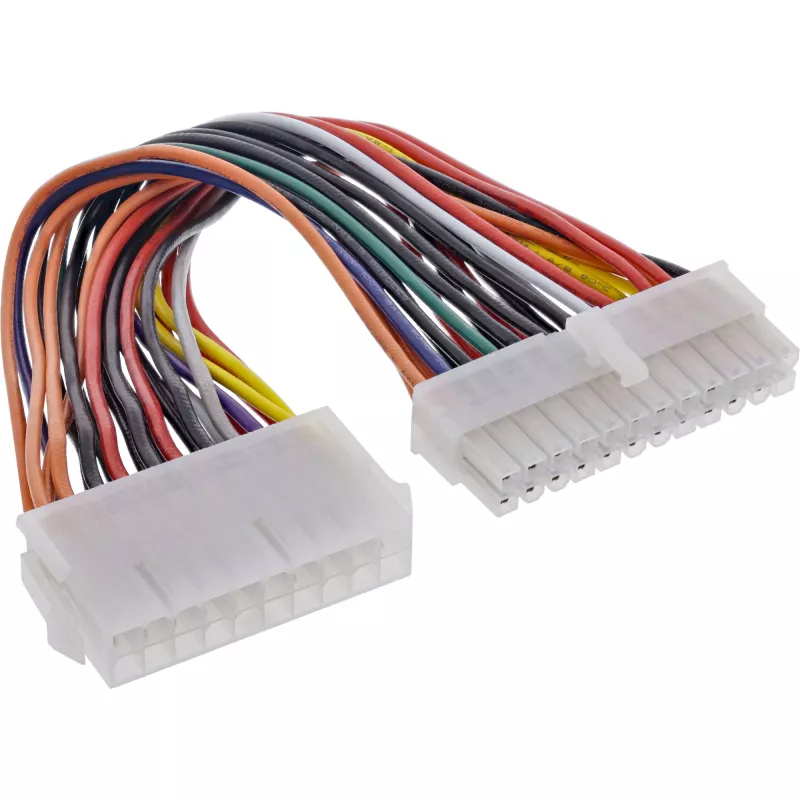

The InLine Mainboard Power Adapter Cable 20 Pin female / 24pin EPS male 0.16m allows connection of an ATX EPS mainboard with a 24-pin connector to an ATX 20-pin power supply. With a compact length of approximately 0.15–0.16 m and a multicolour finish, the adapter provides a straightforward physical interface to adapt pin counts between power supply and motherboard.

Advantages

This adapter cable provides compatibility between 20-pin ATX power supplies and 24-pin EPS motherboards without modifying either device. Its short length is suitable for confined PC cases and reduces cable clutter. The cable’s construction ensures a stable connection for power delivery during normal operation.

Suitable for

• Connecting a 20-pin ATX power supply to a 24-pin EPS-equipped motherboard
• Use in small or compact computer cases where space is limited
• Temporary setups, testing, or system troubleshooting

Key specifications

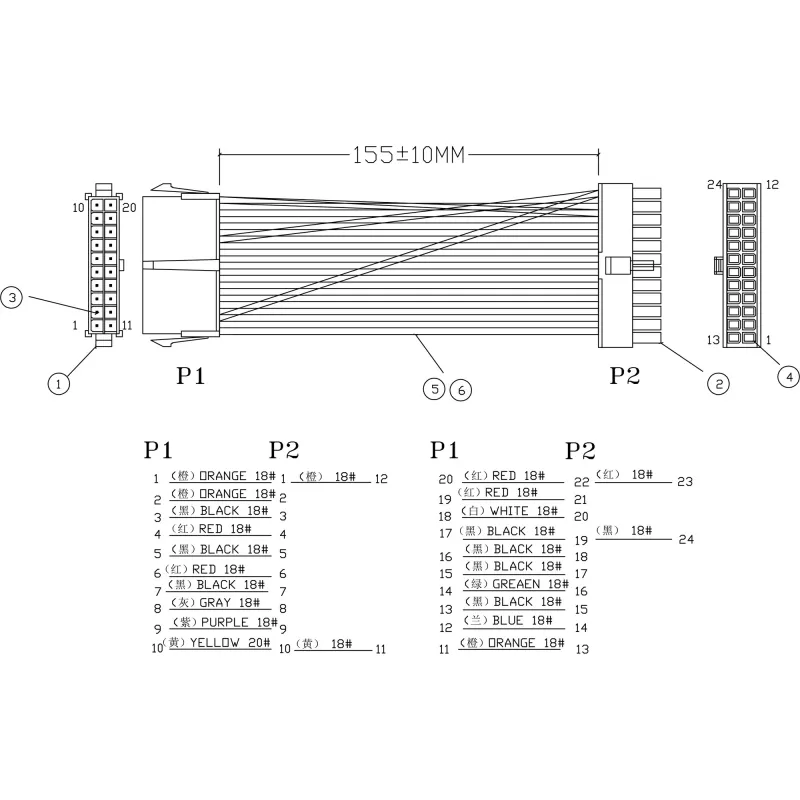

• Connector A: 20-pin female (ATX)
• Connector B: 24-pin EPS male
• Cable length: 0.15–0.16 m
• Colour: Multicolour
• Brand: InLine, MPN: 26637, EAN: 4043718035014

How to use

Power down the system and disconnect it from mains power before connecting the adapter. Align the 20-pin female connector with the power supply’s 20-pin plug and insert it firmly. Plug the 24-pin male connector into the motherboard’s 24-pin power socket, ensuring proper orientation and full seating. Reconnect mains power and power on the system to verify functionality.

Recommendations

Check motherboard and power supply compatibility before use. Use this adapter only when the power requirements of the motherboard are met by the 20-pin power supply; if in doubt, consult the motherboard or power supply specifications or use a compatible 24-pin power supply to avoid potential power limitations.
