Cable adaptador USB 2.0 Type-A a serie RS-232 DeLOCK 90416

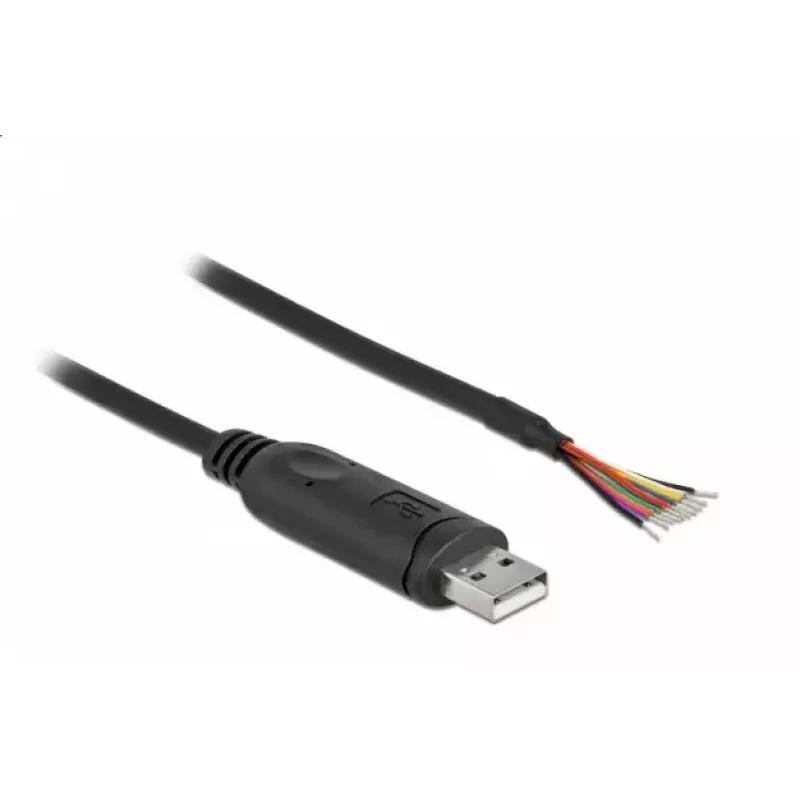

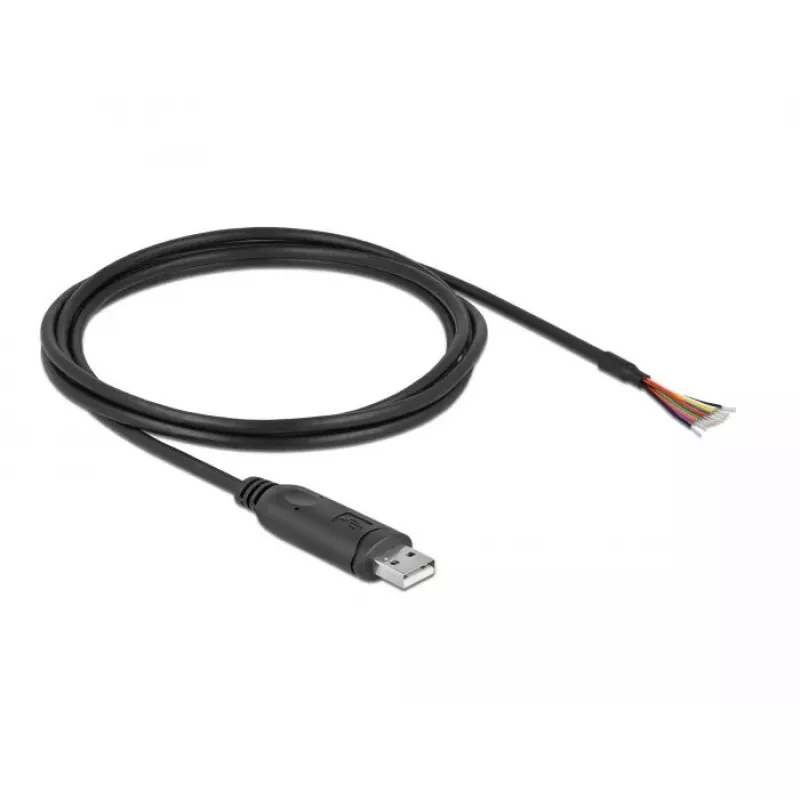

This USB 2.0 Type-A to serial RS-232 adapter cable by DELOCK provides a direct, wired connection between a host with a USB 2.0 Type-A port and equipment using an RS-232 interface. The cable is 2 metres long, has shielding and nine open (tinned) wire ends to allow direct connection to an RS-232 device connector or to be terminated on various terminal blocks. It can also be used to create custom adapters and cable assemblies for industrial and equipment integration tasks.

Advantages

The adapter cable supports USB 2.0 data transfer and includes shielding to reduce interference. Tinned open wire ends allow flexible termination options, making it possible to connect directly to device connectors or to adapt the cable for different terminal blocks. With a 2 m length and durable black jacket, the cable suits installations where extended reach and robust wiring are required.

Suitable for

Key specifications

How to use

Plug the USB Type-A connector into a USB 2.0 port on the host device. Terminate the nine tinned open wires to the RS-232 device connector or to a terminal block according to the RS-232 pinout required by your equipment, ensuring secure soldering or screw connections and correct signal mapping. Use the shielding and proper grounding practices to maintain signal integrity in noisy environments.

Recommendations

Confirm the RS-232 pinout and signal levels of your target device before terminating the open wires. For reliable operation in industrial environments, route the cable away from high-voltage lines and secure connections to prevent mechanical strain.
