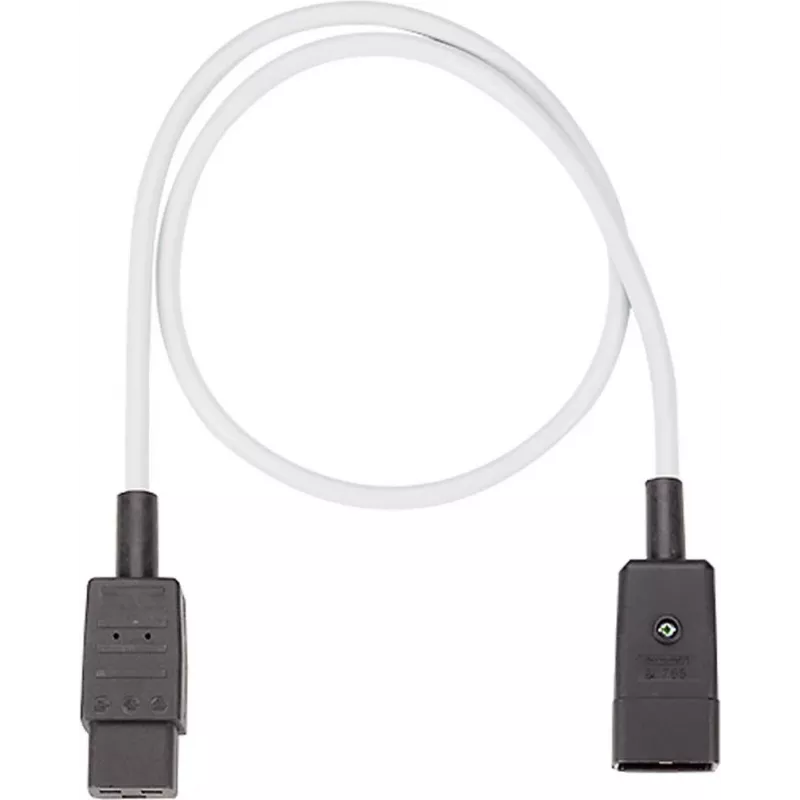

Cable alargador Bachmann H05VV-F 3x1,5 mm² 356.911

Bachmann H05VV-F extension cable 3x1.5 mm² is a flexible mains lead intended for indoor low-voltage power connections. The cable features three conductors with a 1.5 mm² cross-section and H05VV-F insulation, offering basic electrical insulation and mechanical flexibility for everyday household and light commercial applications. This model is designed for supplying power to appliances, portable tools and lighting where a flexible, easy-to-route cable is required.

Advantages

The H05VV-F construction provides reliable basic insulation and good bending properties that simplify installation in confined or frequently moved setups. Three 1.5 mm² conductors deliver adequate current capacity for a range of domestic appliances and small power tools while maintaining manageable cable thickness and weight. The cable is suitable for indoor use and can be routed along walls, behind furniture or through service ducts where fixed wiring is not available.

Suitable for

• Connecting household appliances such as washing machines, refrigerators and microwaves (subject to appliance current rating)
• Powering portable electrical tools and small workshop equipment
• Temporary lighting installations and extension leads for indoor events
• Use in offices and commercial interiors for equipment distribution

Key specifications

• Cable type: H05VV-F, three-core flexible mains cable
• Conductor cross-section: 1.5 mm² per core
• Number of cores: 3 (live, neutral, earth)
• Intended use: indoor fixed or flexible installations and extension leads
• Insulation material: PVC outer sheath and conductor insulation
• Typical operating voltage: rated for low-voltage mains applications
• Flexibility: suitable for routing and light mechanical handling

How to use

Cut the cable to the required length and attach appropriate plugs, sockets or junctions rated for 1.5 mm² conductors, observing local electrical codes. Strip the outer sheath and conductor insulation carefully to avoid damage to the copper strands. Connect live, neutral and earth conductors to the corresponding terminals of the plug or device, ensuring secure screw or clamp connections. For permanent or semi-permanent installations consult a qualified electrician to verify correct cable sizing, protection (fuse or circuit breaker) and routing.

Recommendations

Use this H05VV-F cable for indoor applications only. Do not expose the cable to direct sunlight, moisture, chemical agents or mechanical stress beyond light handling. Verify that the connected device’s current draw does not exceed the safe continuous current rating for 1.5 mm² conductors according to local standards, and always install overcurrent protection appropriate to the circuit.
